Streamers — Gato Audio SDA-1

Name: SDA-1
Brand: Gato Audio
Rating: 100 (1 reviews)

Description, images, technical data and specifications

Gato Audio SDA-1
Image source — © Gato Audio

Gato Audio SDA-1 is a universal streamer, DAC (on the top-end ESS9038PRO chip), preamp and powerful balanced headphone amplifier in one package; supports streaming services (Roon Ready, Tidal Connect, Spotify Connect, Qobuz, Deezer, Internet radio), formats up to DSD256 and 24/384 PCM, equipped with analog input, balanced and unbalanced outputs, as well as the new NPM-2 streaming module

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

Model name
SDA-1
Has internal DAC
Yes
DSD compatability
Yes
Parameters
up to 24bit /384kHz and DSD256
DSP processing
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Gain (dBu)
N/A
Input Impedance (balanced) (Ω)
N/A
Input Impedance (single-ended) (Ω)
N/A
Output Impedance (balanced) (Ω)
N/A
Output Impedance (single-ended) (Ω)
N/A
Analog outputs level (balanced) (V)
11
Analog outputs level (single-ended) (V)
7
Signal to Noise Ratio (dB)
117
Total Harmonic Distortion + Noise (% at 22 kHz)
0.002
Dimensions (mm)
325 x 105 x 396
Weight (kg)
10
Official link
https://www.gato-audio.com/eu/sda-1-npm.html

Gato Audio PRD-3S NPM

More components

Streamers

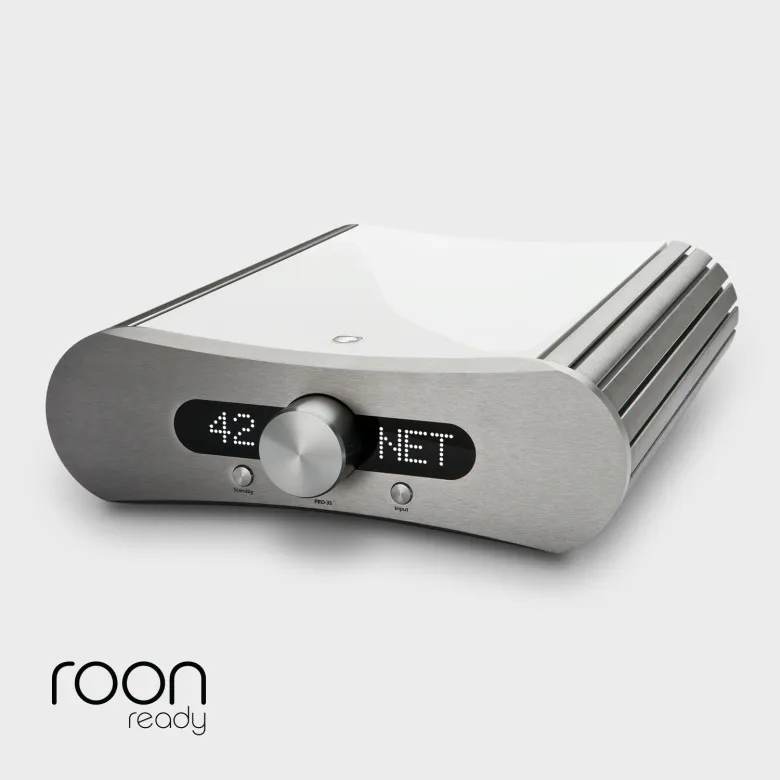

Gato Audio PRD-3S NPM
