Streamers — Gato Audio PRD-3S NPM
Description, images, technical data and specifications
Gato Audio PRD-3S NPM
Image source — © Gato Audio
The built-in Digital-to-Analog Converter provides true High-end performance thanks to a specially dedicated power supply unit, a Burr-Brown PCM1794 microcircuit with balanced output, an advanced current-voltage converter with an extended frequency range and an analog part with a low-quality low-pass filter. All digital inputs can be sampled up to 24 bits/192 kHz. This DAC can elevate any digital source - such as wired or wireless audio streaming - to a higher level of detail and musicality.
Specifications
Model name
PRD-3S NPM
Has internal DAC
Yes
DSD compatability
N/A
Parameters
up to 24bit/192kHz
DSP processing
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
100 000
Gain (dBu)
10
Input Impedance (balanced) (Ω)
40 000
Input Impedance (single-ended) (Ω)
20 000
Output Impedance (balanced) (Ω)
75
Output Impedance (single-ended) (Ω)
75
Analog outputs level (balanced) (V)
13
Analog outputs level (single-ended) (V)
6.5
Signal to Noise Ratio (dB)
>110
Total Harmonic Distortion + Noise (% at 22 kHz)
< 0,001
Dimensions (mm)
325 x 105 x 420
Weight (kg)
7
Official link
More components
Streamers

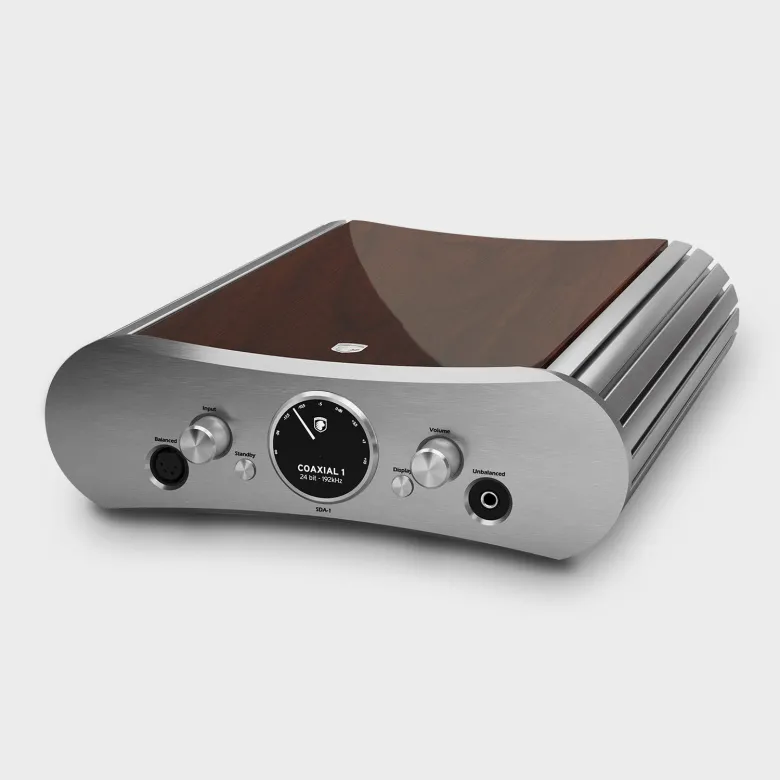

Gato Audio SDA-1
