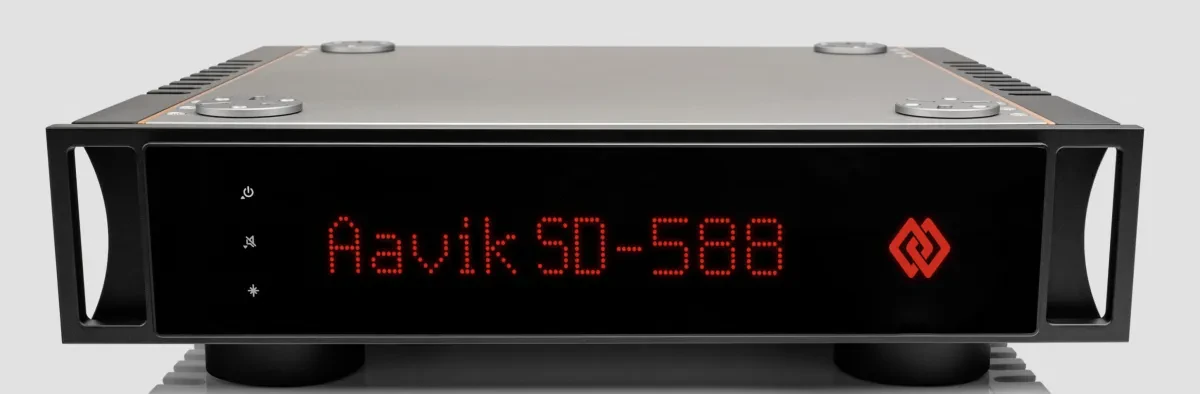

Aavik SD-588
Image source — © Aavik
The Aavik SD-588 DAC is a high—resolution, resonant Aavik power supply designed for ultra-low noise levels. It is equipped with a DAC with continuous non-switching processing, providing ultra-low jitter and precise audio transmission with an incredibly realistic presentation.
Specifications
Model name
SD-588
Conversion type
N/A
Engine
N/A
DSD compatability
Yes
Parameters
up to 32 bit / 384 kHz and DSD512
Frequency response low +/- 3dB (Hz)
0.5
Frequency response high +/- 3dB (Hz)
200 000
Gain (dBu)
N/A
Output Level (balanced) (V)
N/A
Output Level (single-ended) (V)
N/A
Input Impedance (balanced) (Ω)
N/A
Input Impedance (single-ended) (Ω)
N/A
Output Impedance (balanced) (Ω)
50
Output Impedance (single-ended) (Ω)
50
Analog outputs
N/A
Signal to Noise Ratio (dB)
>120
Total Harmonic Distortion + Noise (% at 22 kHz)
<0.002
Dimensions (mm)
440 × 430 × 116
Weight (kg)
17
