DACs — Onyx Mystic XP1

Description, images, technical data and specifications

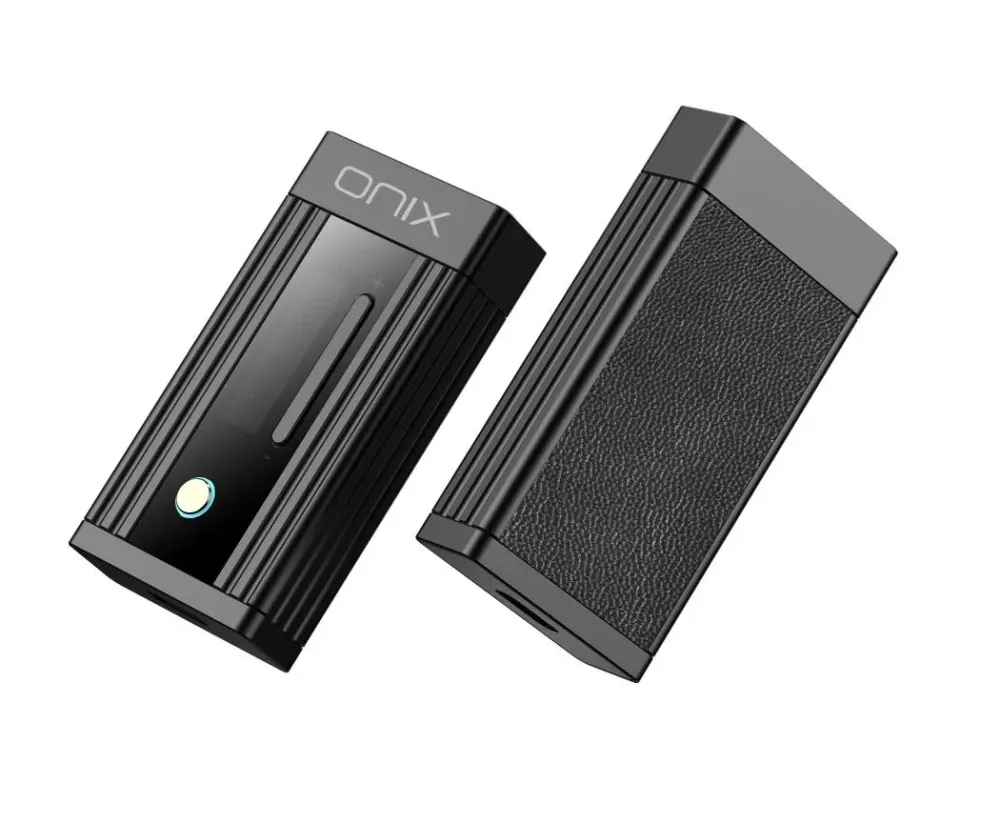

Onyx Mystic XP1
Image source — © Onyx

The ONIX Mystic XP1 is based on a pair of flagship AK4499EX DAC chips from Asahi Kasei, which work with the AK4191 delta sigma modulator. The fully balanced headphone amplifier is based on the TPA6120A2 operational amplifiers from Texas Instruments and is optimized for use with full-size headphones. The additional Muses8920 chip serves balanced analog outputs – linear and adjustable.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    Mystic XP1

  • Conversion type

    N/A

  • Engine

    AKM AK4499EX

  • DSD compatability

    Yes

  • Parameters

    up to 32 bit / 768 kHz and DSD512

  • Frequency response low +/- 3dB (Hz)

    N/A

  • Frequency response high +/- 3dB (Hz)

    N/A

  • Gain (dBu)

    N/A

  • Output Level (balanced) (V)

    N/A

  • Output Level (single-ended) (V)

    N/A

  • Input Impedance (balanced) (Ω)

    N/A

  • Input Impedance (single-ended) (Ω)

    N/A

  • Output Impedance (balanced) (Ω)

    N/A

  • Output Impedance (single-ended) (Ω)

    N/A

  • Analog outputs

    N/A

  • Signal to Noise Ratio (dB)

    120

  • Total Harmonic Distortion + Noise (% at 22 kHz)

    0.0005

  • Dimensions (mm)

    160 × 92 × 30

  • Weight (kg)

    0.538

  • Official link

    https://onixhiend.co.uk/mystic-xp1/
