DACs — Onyx Alpha XI1

Description, images, technical data and specifications

Onyx Alpha XI1
Image source — © Onyx

The DAC section is built on a dual CS43198 chip from Cirrus Logic, and signal amplification is provided by two SGM8262 modules from SG Micro. The maximum output power is 500 MW at 32 ohms with balanced connection, and the low output resistance, not exceeding 0.4/0.8 ohms, allows the amplifier to confidently handle most headphones.

Specifications

  • Model name

    Alpha XI1

  • Conversion type

    N/A

  • Engine

    Cirrus Logic CS43198

  • DSD compatability

    Yes

  • Parameters

    up to 32 bit / 768 kHz and DSD256

  • Frequency response low +/- 3dB (Hz)

    N/A

  • Frequency response high +/- 3dB (Hz)

    N/A

  • Gain (dBu)

    N/A

  • Output Level (balanced) (V)

    N/A

  • Output Level (single-ended) (V)

    N/A

  • Input Impedance (balanced) (Ω)

    N/A

  • Input Impedance (single-ended) (Ω)

    N/A

  • Output Impedance (balanced) (Ω)

    0.8

  • Output Impedance (single-ended) (Ω)

    0.4

  • Analog outputs

    N/A

  • Signal to Noise Ratio (dB)

    129 (Balanced) + 126 (Unbalanced)

  • Total Harmonic Distortion + Noise (% at 22 kHz)

    0.0005 (Balanced) + 0.0004 (Unbalanced)

  • Dimensions (mm)

    63.8 × 32 × 14

  • Weight (kg)

    0.0378

  • Official link

    https://onixhiend.co.uk/alpha/

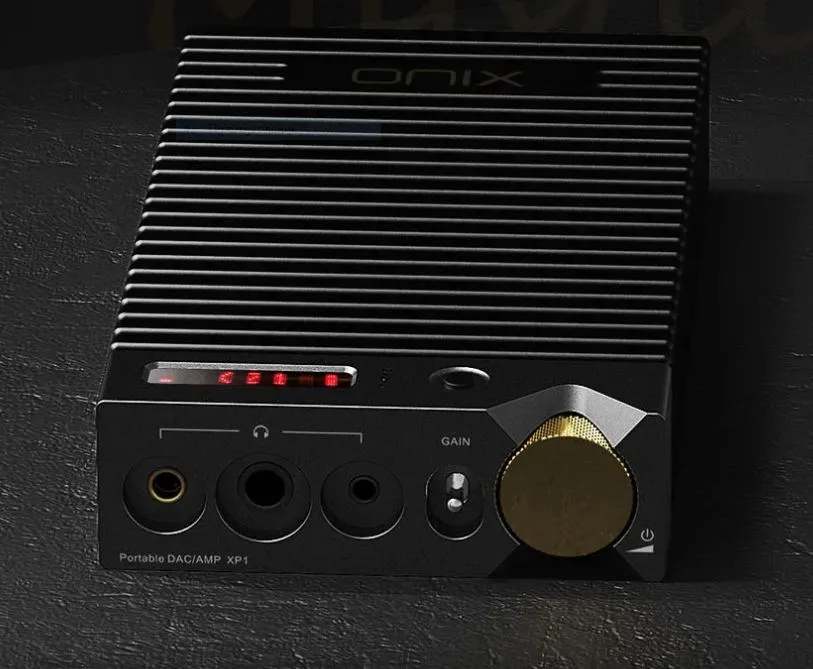

Onyx Mystic XP1
