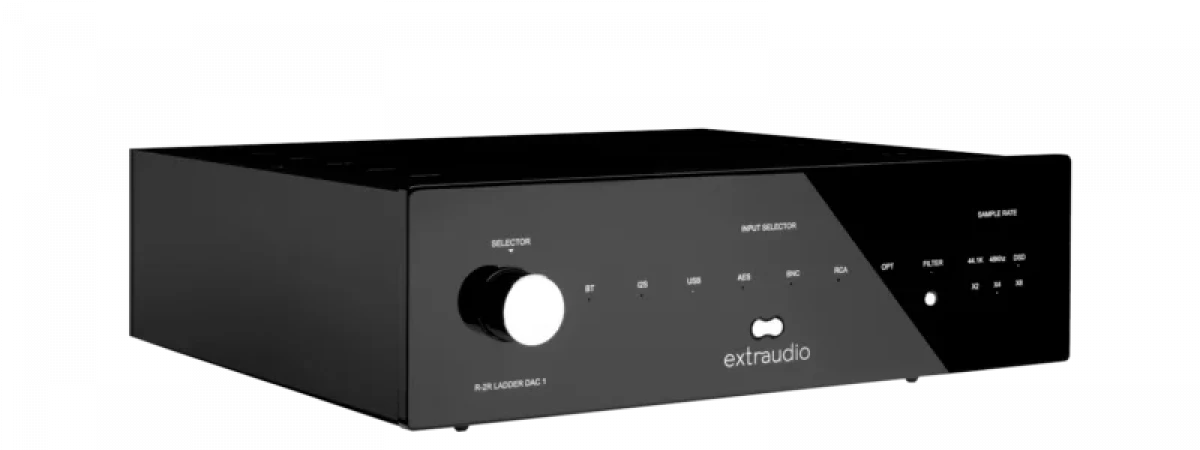

Extraudio DAC2 QUAD R-2R Ladder
Image source — © Extraudio
The ultra-precise 32-bit FPGA DAC “Extraudio Proprietary System" reproduces analog sound full of nuances, without digital sharpness, without any errors, thanks to the quantization depth from 28 to 32 bits. The resistive ladder is adjusted through a second FPGA, which is responsible only for converting and correcting the linearity of the four DAC modules, then we have another ARM FPGA with the latest technology for sampling frequency selection, input selection and digital signal generation, freeing the main FPGA from all this work.
Specifications
Model name
DAC2 QUAD R-2R Ladder
Conversion type
R2R
Engine
N/A
DSD compatability
Yes
Parameters
up to 24 bits / 768 Khz and DSD512
Frequency response low +/- 3dB (Hz)
5
Frequency response high +/- 3dB (Hz)
750 000
Gain (dBu)
N/A
Output Level (balanced) (V)
4.6
Output Level (single-ended) (V)
2.3
Input Impedance (balanced) (Ω)
N/A
Input Impedance (single-ended) (Ω)
N/A
Output Impedance (balanced) (Ω)
50
Output Impedance (single-ended) (Ω)
3
Analog outputs
N/A
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (% at 22 kHz)
<0.004
Dimensions (mm)
440 x 120 x 400
Weight (kg)
16
