DACs — Extraudio DAC1 MKII DUAL R2R
Description, images, technical data and specifications

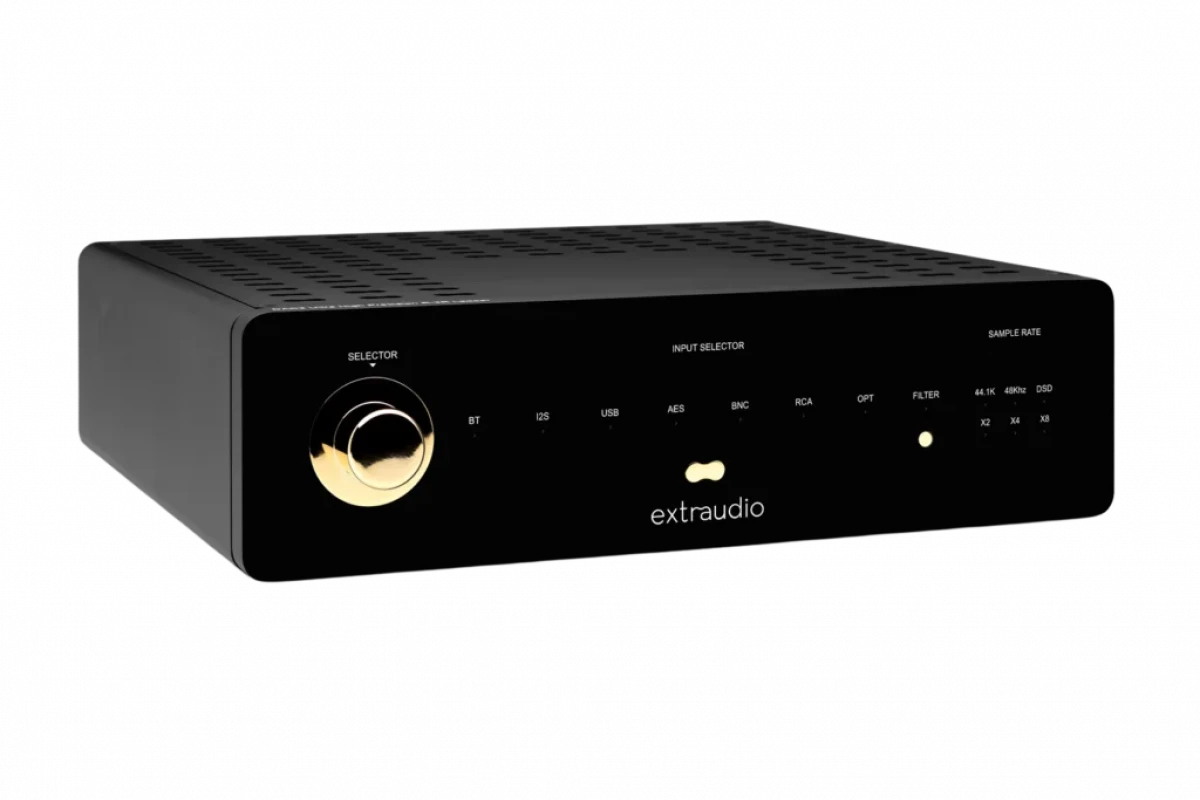

Extraudio DAC1 MKII DUAL R2R
Image source — © Extraudio
What is it?
Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.
Specifications
Model name
DAC1 MKII DUAL R2R
Conversion type
R2R
Engine
N/A
DSD compatability
Yes
Parameters
up to 24 bits / 384 Khz and DSD256
Frequency response low +/- 3dB (Hz)
5
Frequency response high +/- 3dB (Hz)
180 000
Gain (dBu)
N/A
Output Level (balanced) (V)
4.6
Output Level (single-ended) (V)
2.3
Input Impedance (balanced) (Ω)
N/A
Input Impedance (single-ended) (Ω)
N/A
Output Impedance (balanced) (Ω)
3
Output Impedance (single-ended) (Ω)
50
Analog outputs
N/A
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (% at 22 kHz)
<0.004
Dimensions (mm)
440 x 120 x 400
Weight (kg)
10
Official link
