CD / SACD players and transports — Ayon Audio Ayon CD-35 II
Description, images, technical data and specifications
Ayon Audio Ayon CD-35 II
Image source — © Ayon Audio
What is it?
Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.
Specifications
Model name
Ayon CD-35 II
Transport
Yes
Player
Yes
SACD support
N/A
Engine
N/A
Frequency response low +/- 3dB (for CD) (Hz)
20
Frequency response high +/- 3dB (for CD) (Hz)
50 000
Frequency response low +/- 3dB (for SACD) (Hz)
N/A
Frequency response high +/- 3dB (for SACD) (Hz)
N/A
Gain (dBu)
N/A
Output Level (balanced) (V)
5
Output Level (single-ended) (V)
2.5
Input Impedance (balanced) (Ω)
N/A
Input Impedance (single-ended) (Ω)
N/A
Output Impedance (balanced) (Ω)
300
Output Impedance (single-ended) (Ω)
300
Dynamic range (for CD) (dB)
>120
Dynamic range (for SACD) (dB)
N/A
Signal to Noise Ratio (for CD) (dB)
119
Signal to Noise Ratio (for SACD) (dB)
N/A
Total Harmonic Distortion + Noise (for CD) (%)
< 0.001
Total Harmonic Distortion + Noise (for SACD) (%)
N/A
Dimensions (mm)
480 x 390 x 120
Weight (kg)
17
Official link
More components
CD / SACD players and transports

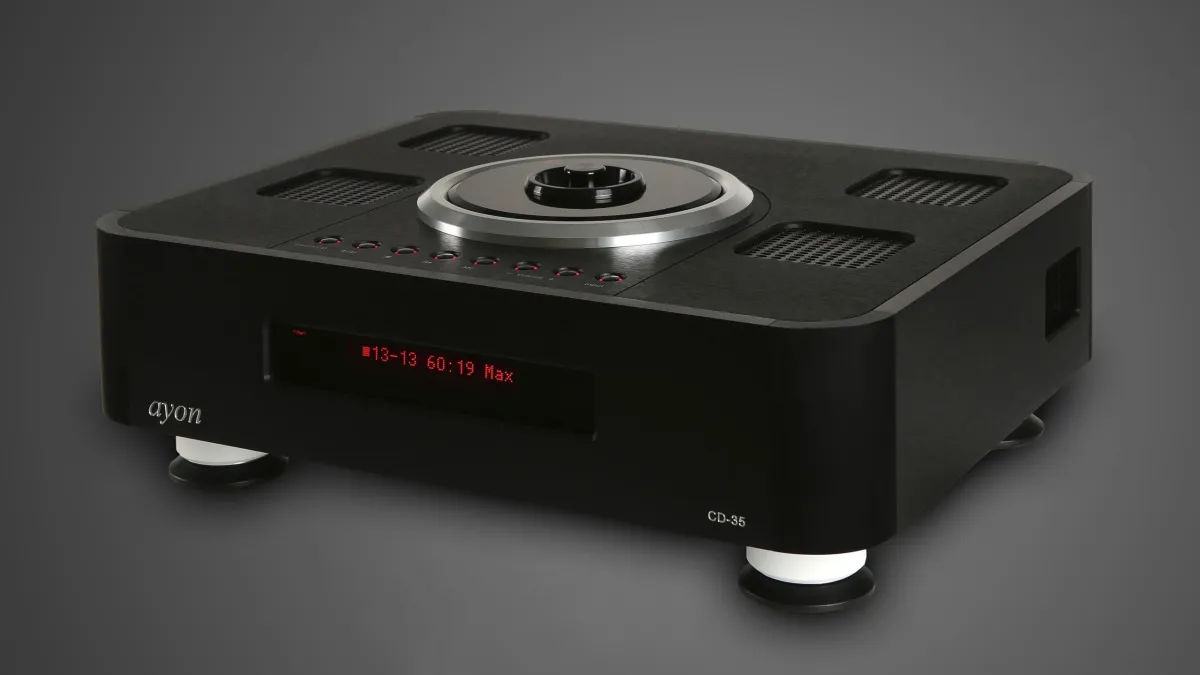

Ayon Audio Ayon CD-35 II HF
Based on a zero-feedback circuit, a pure tube circuit, and a tube rectifier, the CD-35 II exposes a variety of musical layers with maximum transparency while creating a deep and focused three-dimensional sound stage. The bass is dense and powerful, the midrange is clear and smooth, natural, while extremely clean and finely detailed, but not analytical.
CD / SACD players and transports

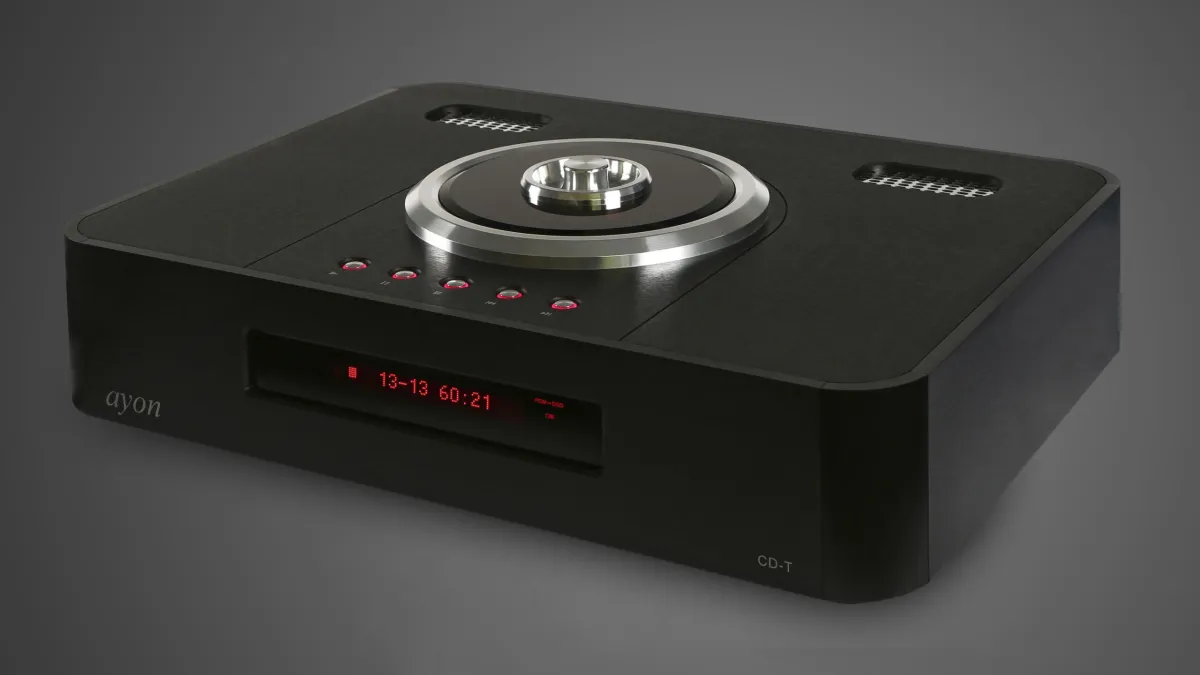

Ayon Audio Ayon CD-T II Transport
