Preamplifiers — Chord ULTIMA PRE 2
Description, images, technical data and specifications

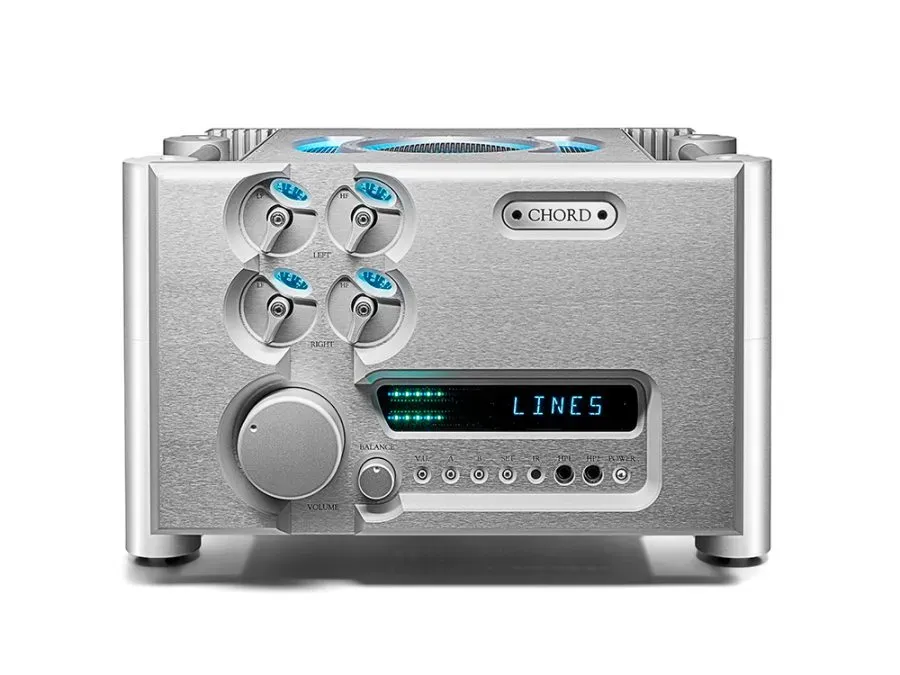

Chord ULTIMA PRE 2
Image source — © Chord
A distinctive feature of the model, in addition to the original design and the body carved from a solid aluminum billet, is the use of a switching power source of its own design, characterized by a vanishingly low noise level. Together with the selected analog components in the signal circuits, the ratio of the natural noise level in the preamplifier is no more than -130 dB.
Specifications
Model name
ULTIMA PRE 2
Analog inputs (balanced)
4
Analog inputs (single-ended)
2
Analog outputs (balanced)
1
Analog outputs (single-ended)
1
Gain (dBu)
N/A
Input sensitivity (mV)
N/A
Output voltage (V)
N/A
Input impedance (balanced) (Ω)
100 000
Input impedance (single-ended) (Ω)
100 000
Output impedance (balanced) (Ω)
100
Output impedance (single-ended) (Ω)
100
Maximum output level (balanced) (dBu)
N/A
Maximum output level (single-ended) (dBu)
N/A
Volume control range (dBu)
N/A
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
200 000
Signal to Noise Ratio (SNR, unweighted) (dB)
116
Total Harmonic Distortion + Noise (THD+N) (%)
0.002
Dimensions (mm)
420 x 355 x 133
Weight (kg)
18
Official link
