Preamplifiers — Chord ULTIMA PRE

Description, images, technical data and specifications

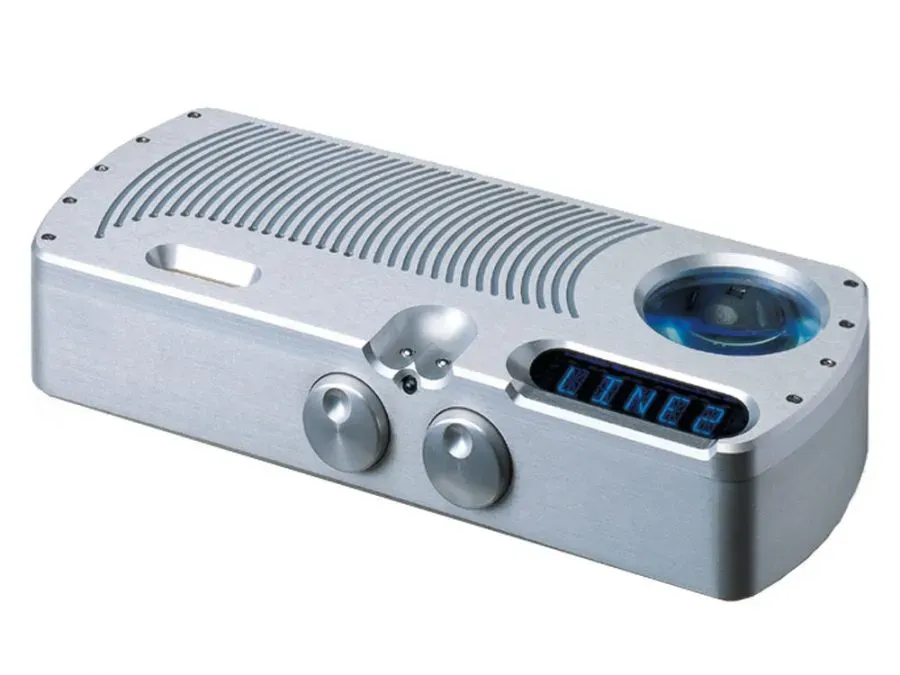

Chord ULTIMA PRE
Image source — © Chord

Each sensitive element of the structure, such as power supplies, volume controls, channel balance, and a timbre unit, are hidden under powerful screens carved from solid aluminum blanks. In addition to an end-to-end channel for connecting AV processors, the ULTIMA PRE has two separate headphone outputs.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    ULTIMA PRE

  • Analog inputs (balanced)

    4

  • Analog inputs (single-ended)

    4

  • Analog outputs (balanced)

    3

  • Analog outputs (single-ended)

    3

  • Gain (dBu)

    N/A

  • Input sensitivity (mV)

    N/A

  • Output voltage (V)

    N/A

  • Input impedance (balanced) (Ω)

    100 000

  • Input impedance (single-ended) (Ω)

    100 000

  • Output impedance (balanced) (Ω)

    100

  • Output impedance (single-ended) (Ω)

    100

  • Maximum output level (balanced) (dBu)

    N/A

  • Maximum output level (single-ended) (dBu)

    N/A

  • Volume control range (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    200 000

  • Signal to Noise Ratio (SNR, unweighted) (dB)

    120

  • Total Harmonic Distortion + Noise (THD+N) (%)

    0.002

  • Dimensions (mm)

    420 x 355 x 310

  • Weight (kg)

    30

  • Official link

    https://chordelectronics.co.uk/product/ultima-pre

Chord ULTIMA PRE 2

Chord PRIMA

More components

  • PRIMA

    Preamplifiers

    Chord PRIMA

    The Prima preamp is characterized by excellent performance, the highest sound quality and a unique design characteristic of Chord Electronics products. Prima uses a so-called "double bus" Chord, which allows you to record one source while listening to another. The audio circuits are made in a fully symmetrical internal architecture.

  • ULTIMA PRE 2

    Preamplifiers

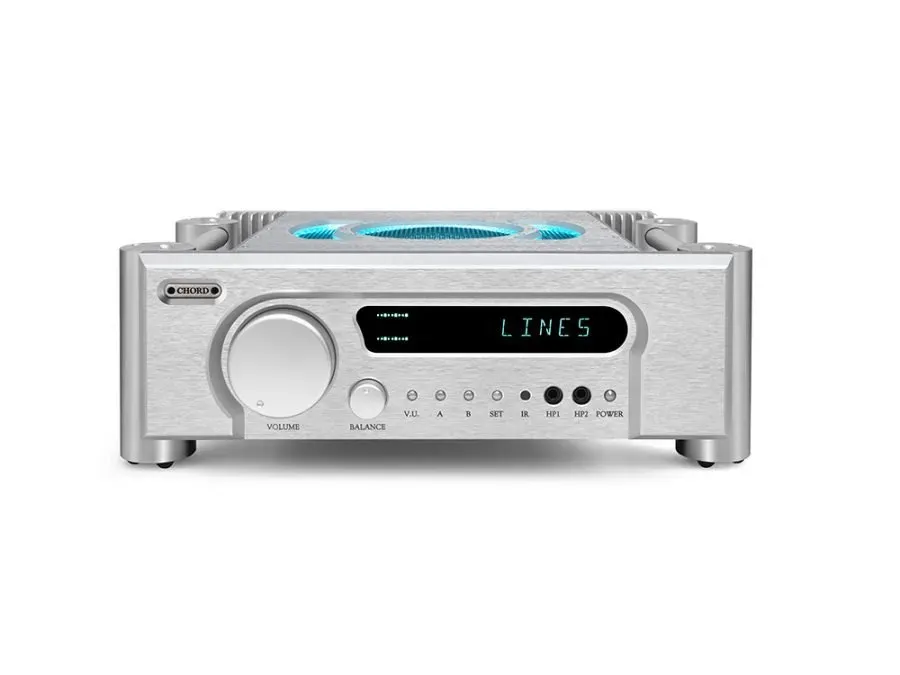

    Chord ULTIMA PRE 2

    A distinctive feature of the model, in addition to the original design and the body carved from a solid aluminum billet, is the use of a switching power source of its own design, characterized by a vanishingly low noise level. Together with the selected analog components in the signal circuits, the ratio of the natural noise level in the preamplifier is no more than -130 dB.

  • ULTIMA PRE 3

    Preamplifiers

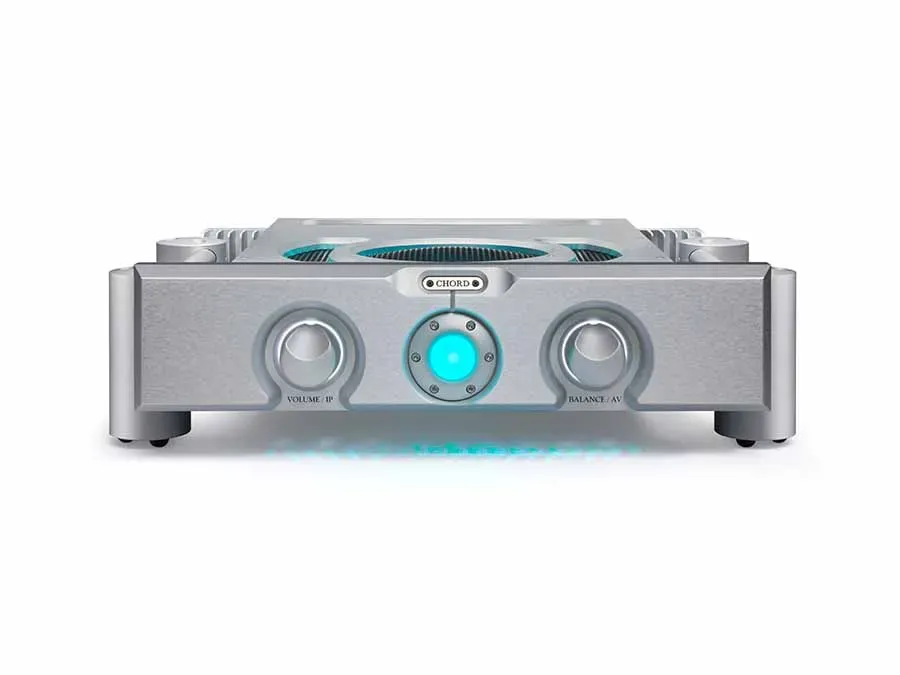

    Chord ULTIMA PRE 3

    The device is designed from scratch using the latest solutions in the field of low-noise power supplies. The preamp has five analog inputs, three balanced and two unbalanced, as well as an end-to-end loop for connection to a home theater system.

  • SUZI PRE

    Preamplifiers

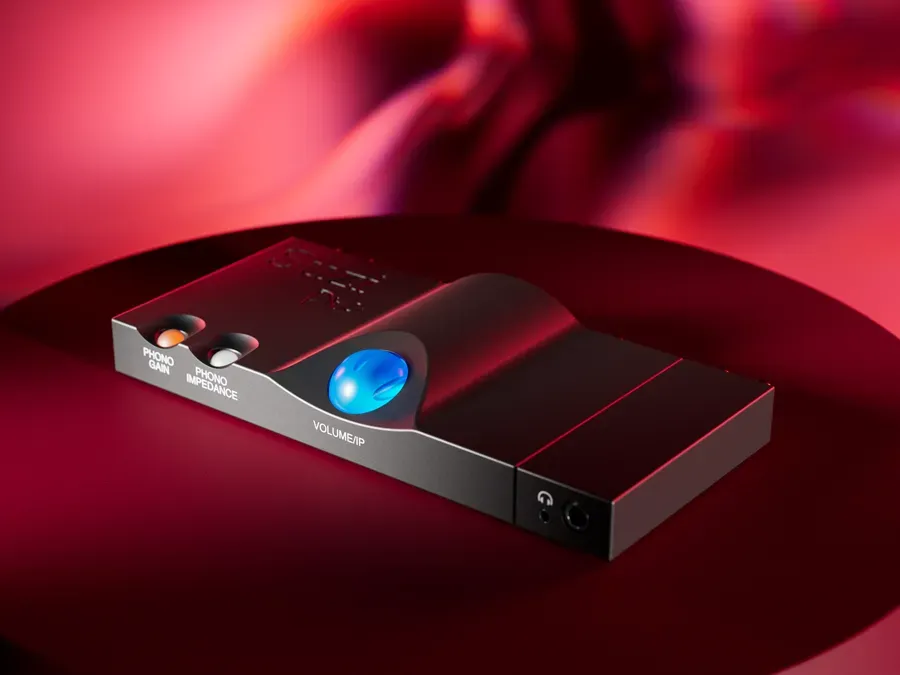

    Chord SUZI PRE
