Preamplifiers — Vtl (Vacuum Tube Logic) TL 2.5i
Description, images, technical data and specifications

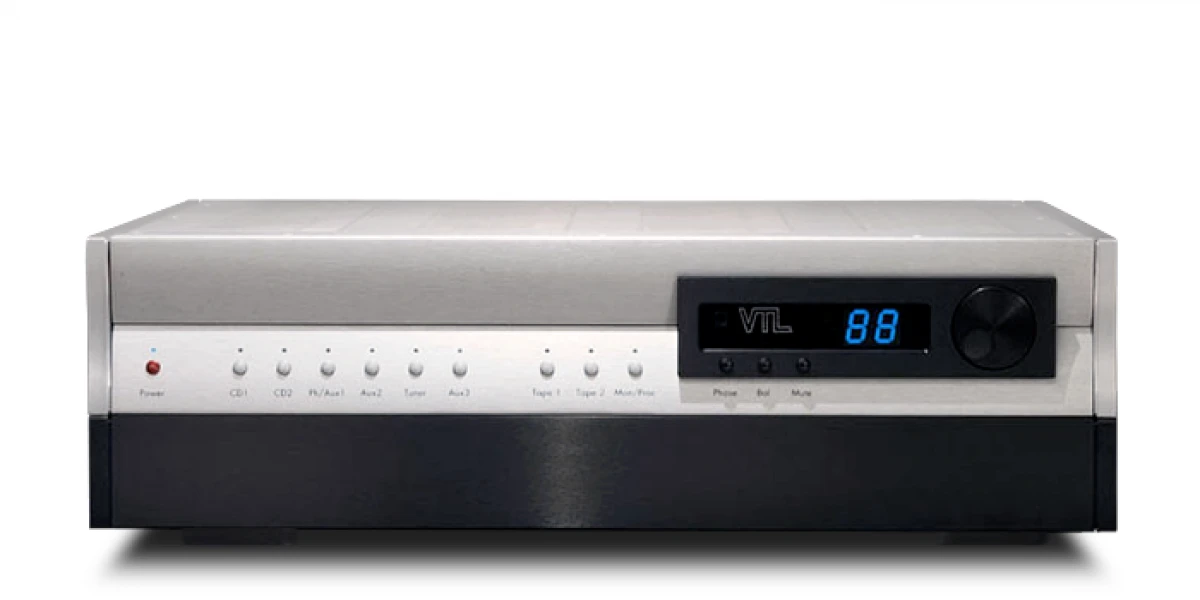

Vtl (Vacuum Tube Logic) TL 2.5i
Image source — © Vtl (Vacuum Tube Logic)
What is it?
Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.
Specifications
Model name
TL 2.5i Performance
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
8
Analog outputs (balanced)
N/A
Analog outputs (single-ended)
2
Gain (dBu)
8dB or 14dB
Input sensitivity (mV)
N/A
Output voltage (V)
30
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
50 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
200
Maximum output level (balanced) (dBu)
N/A
Maximum output level (single-ended) (dBu)
N/A
Volume control range (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (SNR, unweighted) (dB)
90
Total Harmonic Distortion + Noise (THD+N) (%)
< 0.02
Dimensions (mm)
483 x 381 x 102
Weight (kg)
11.34
Official link
