Preamplifiers — Vtl (Vacuum Tube Logic) TL5.5 Series II

Description, images, technical data and specifications

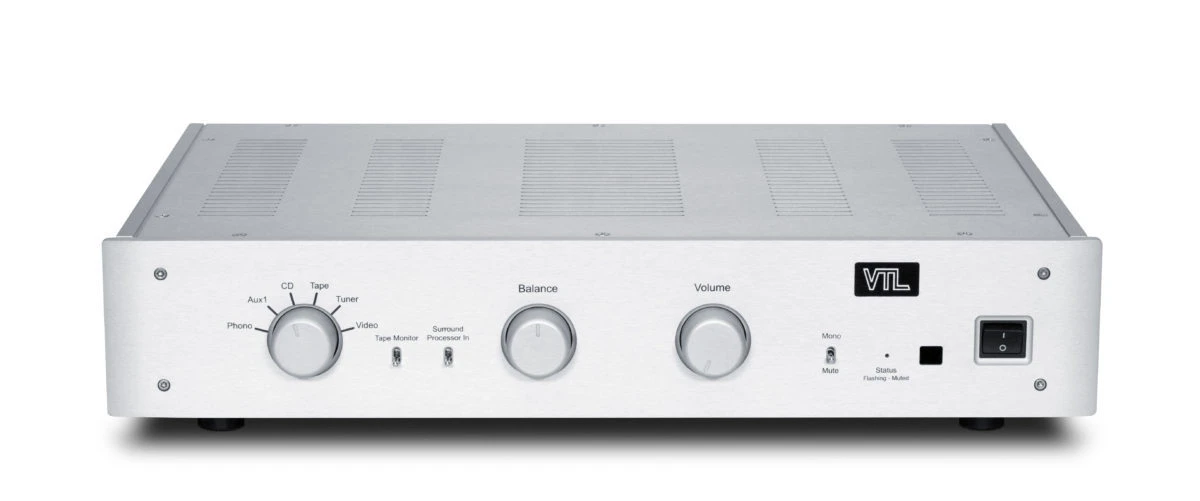

Vtl (Vacuum Tube Logic) TL5.5 Series II
Image source — © Vtl (Vacuum Tube Logic)

The VTL TL 5.5 Series II preamp is a modified version of this model, which uses a number of innovative solutions that have been applied in the company's top TL-7 preamp.5. In the new version of the preamp, the developers have retained such key qualities as the fully tube design, the ability to install an optional phonoscade, as well as a unique sound reproduction concept.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    TL5.5 Series II

  • Analog inputs (balanced)

    2

  • Analog inputs (single-ended)

    8

  • Analog outputs (balanced)

    1

  • Analog outputs (single-ended)

    2

  • Gain (dBu)

    68dB, 62dB, 56dB

  • Input sensitivity (mV)

    N/A

  • Output voltage (V)

    30

  • Input impedance (balanced) (Ω)

    35 000

  • Input impedance (single-ended) (Ω)

    35 000

  • Output impedance (balanced) (Ω)

    150

  • Output impedance (single-ended) (Ω)

    150

  • Maximum output level (balanced) (dBu)

    N/A

  • Maximum output level (single-ended) (dBu)

    N/A

  • Volume control range (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    1

  • Frequency response high +/- 3dB (Hz)

    200 000

  • Signal to Noise Ratio (SNR, unweighted) (dB)

    N/A

  • Total Harmonic Distortion + Noise (THD+N) (%)

    N/A

  • Dimensions (mm)

    444.5 x 444.5 x 120.6

  • Weight (kg)

    18.12

  • Official link

    https://www.vtl.com/products/preamplifiers/tl-5-5-series-ii-signature-preamplifier/
