Preamplifiers — Emotiva BasX PT2

Description, images, technical data and specifications

Emotiva BasX PT2
Image source — © Emotiva

Emotiva BasX PT2 is a high-quality stereo preamp that includes a high-quality stereo FM tuner, a large number of inputs for analog line-level sources, an integrated DAC with a large number of digital inputs for all your digital audio sources, including a high-resolution asynchronous USB input and an integrated Bluetooth receiver with aptX HD support, and It is also a high-performance phono corrector that supports cartridges with a movable magnet and a movable coil.

Specifications

  • Model name

    BasX PT2

  • Analog inputs (balanced)

    N/A

  • Analog inputs (single-ended)

    4 + 1 (Phono)

  • Analog outputs (balanced)

    N/A

  • Analog outputs (single-ended)

    1

  • Gain (dBu)

    N/A

  • Input sensitivity (mV)

    N/A

  • Output voltage (V)

    N/A

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Maximum output level (balanced) (dBu)

    N/A

  • Maximum output level (single-ended) (dBu)

    N/A

  • Volume control range (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    5

  • Frequency response high +/- 3dB (Hz)

    50 000

  • Signal to Noise Ratio (SNR, unweighted) (dB)

    >120

  • Total Harmonic Distortion + Noise (THD+N) (%)

    < 0.001

  • Dimensions (mm)

    432 × 86 × 343

  • Weight (kg)

    5,44

  • Official link

    https://emotiva.com/products/basx-pt2-stereo-preamp-dac-tuner

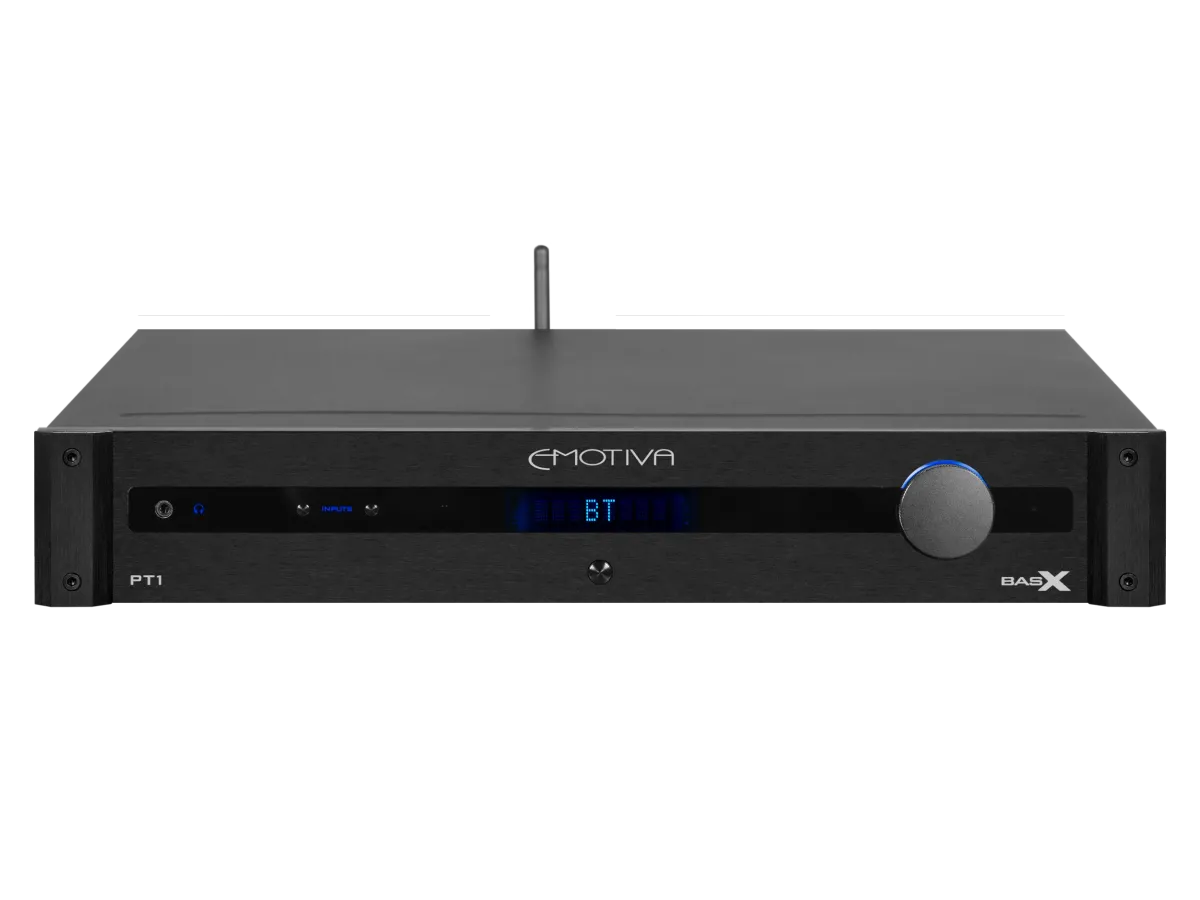

Emotiva BasX PT1
