Power amplifiers stereo — Analog Domain The Isis M75D
Description, images, technical data and specifications

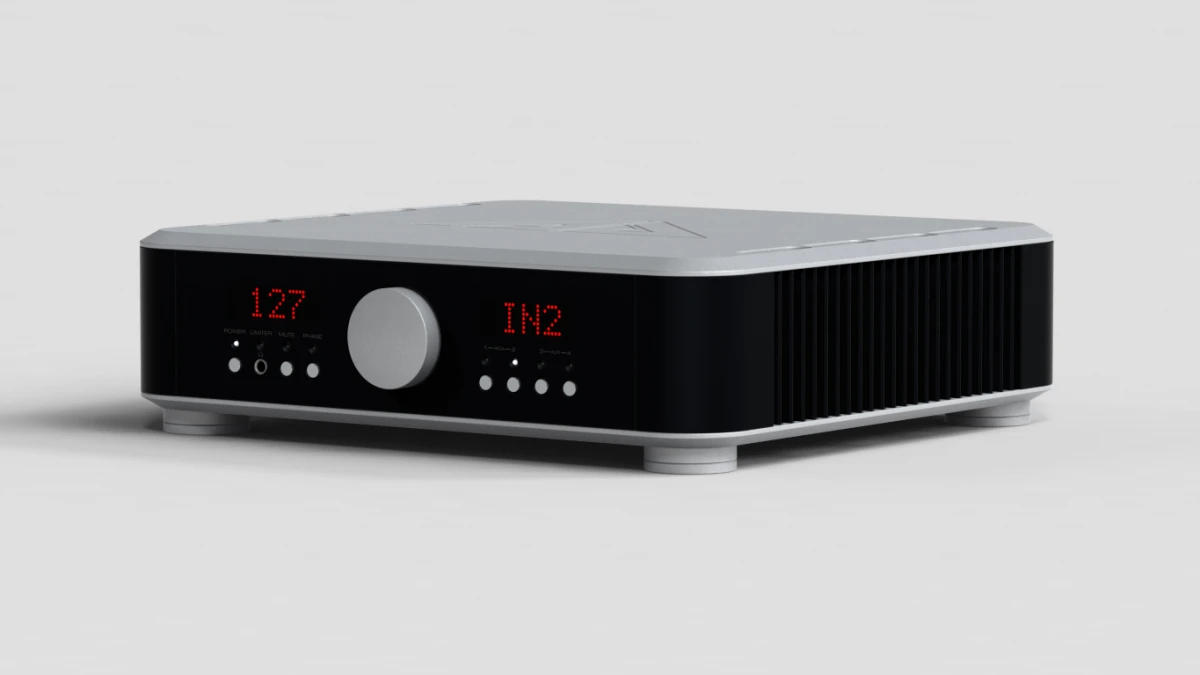

Analog Domain The Isis M75D
Image source — © Analog Domain
Specifications
Model name
The Isis M75D
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
50
Output power (8Ω) (W)
250
Output power (4Ω) (W)
400
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
5
Frequency response high +/- 3dB (Hz)
50 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
<0,002
Max power consumption (W)
N/A
Damping factor
>1000
Dimensions (mm)
440 x 454 x 123
Weight (kg)
25
Official link
More components
Power amplifiers stereo
Analog Domain The Isis M75P
The bridge mode transforms the Isis M75P into a powerful balanced single-channel amplifier. Both power stages are controlled by a single signal, but operate in reverse phase relative to each other to provide more power and reduce distortion.
Power amplifiers stereo

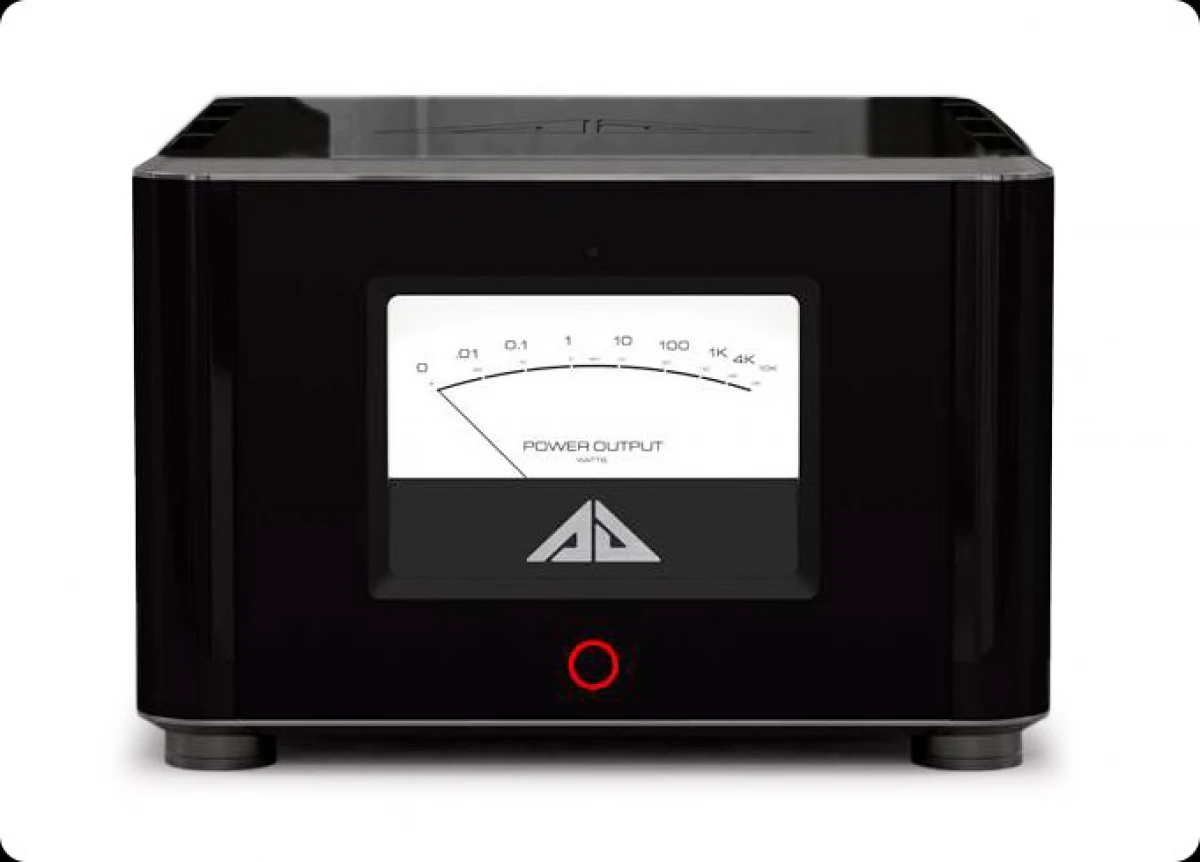

Analog Domain The Apollo
The Apollo outputs an incredible 8,000 watts at 4 ohms, and is able to cope with any acoustics. But it was not only this that forced developer Angel Despotov to develop a proprietary DXDrive circuit, the main purpose of which is to reproduce any recording with maximum reliability and transmit the entire dynamic range.
Power amplifiers stereo

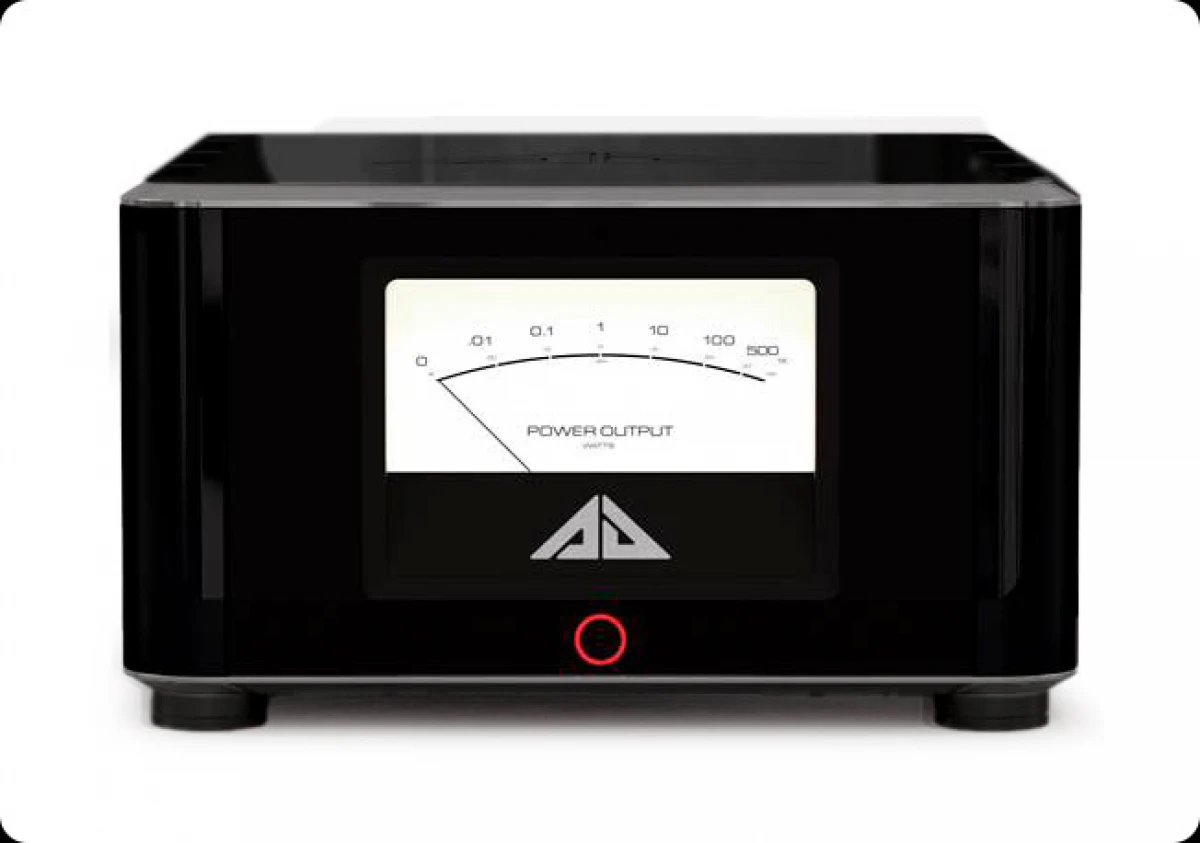

Analog Domain The Athene
