Power amplifiers stereo — Analog Domain The Calysto
Description, images, technical data and specifications

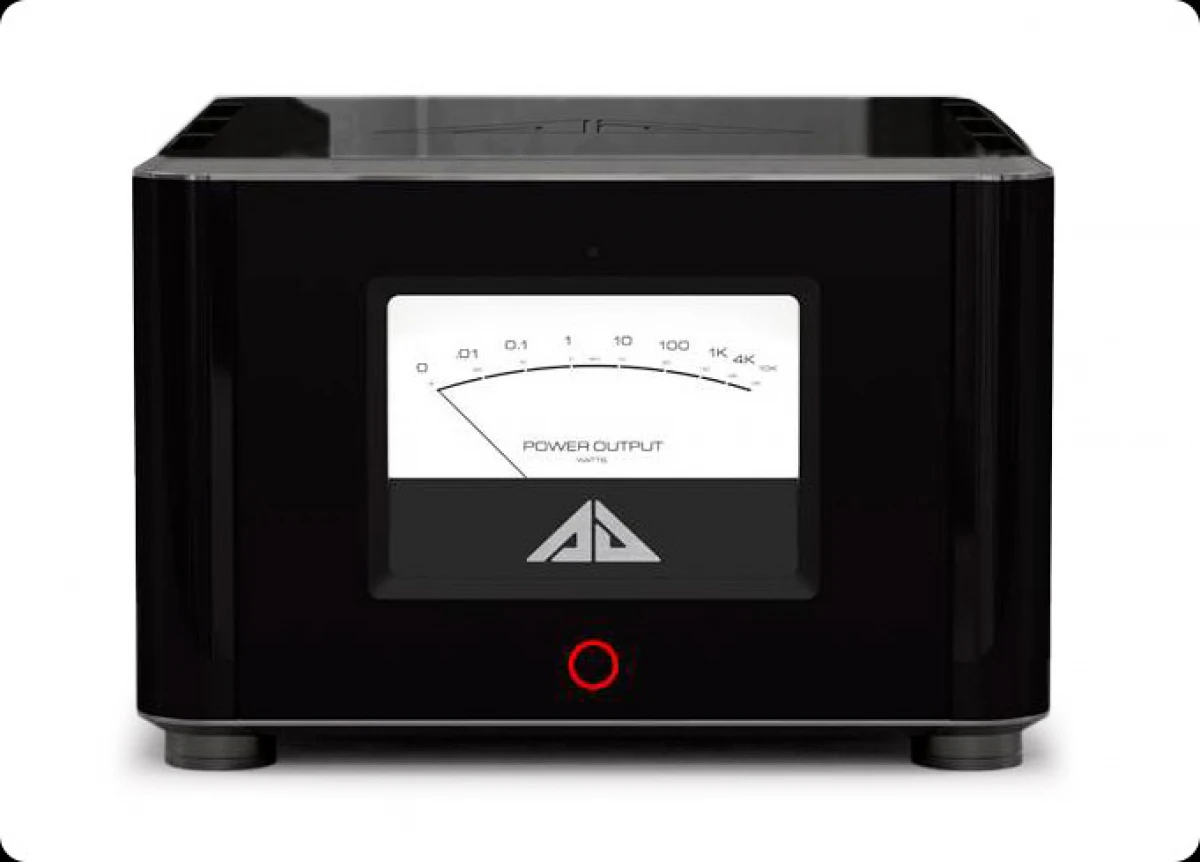

Analog Domain The Calysto
Image source — © Analog Domain
What is it?
Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.
Specifications
Model name
The Calysto
Input sensitivity (mV)
1550
Input impedance (balanced) (Ω)
10 000
Input impedance (single-ended) (Ω)
10 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
550
Output power (4Ω) (W)
1100
Gain (dBu)
32
Frequency response low +/- 3dB (Hz)
1
Frequency response high +/- 3dB (Hz)
100 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
0.0025
Max power consumption (W)
N/A
Damping factor
>1000
Dimensions (mm)
440 x 254 x 545
Weight (kg)
64
