Power amplifiers stereo — TAD TAD-M700S

Description, images, technical data and specifications

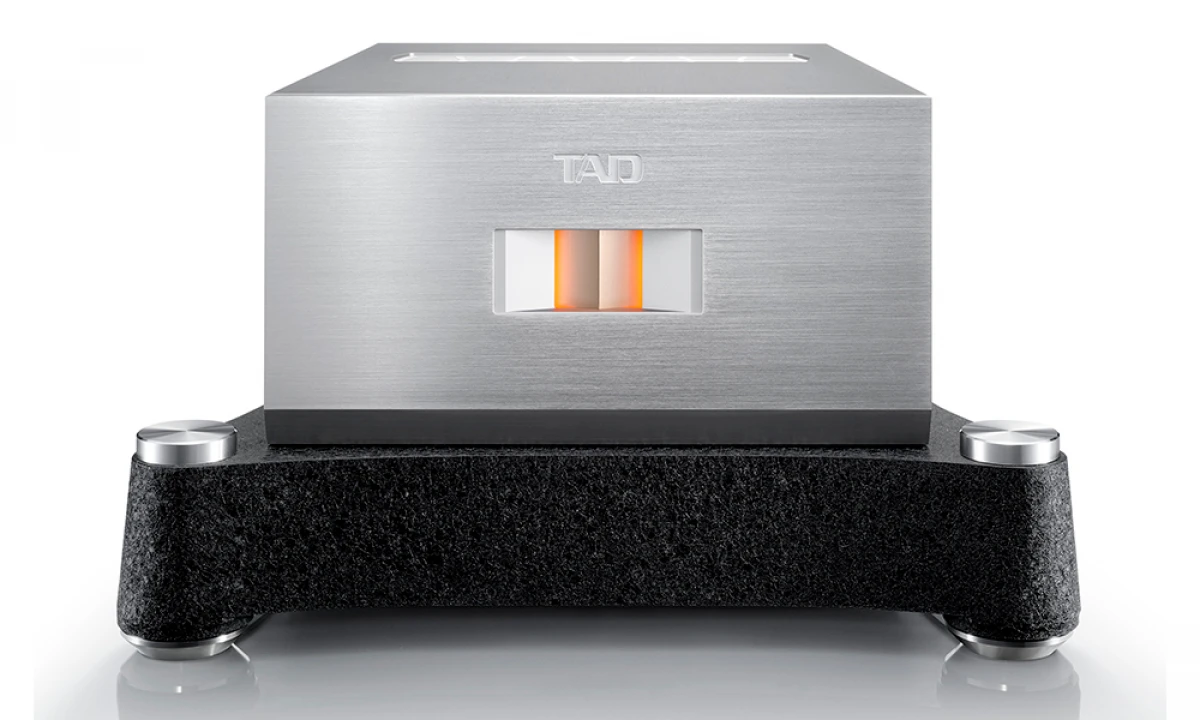

TAD TAD-M700S
Image source — © TAD

The M700S uses the latest cast aluminum chassis, which is characterized by high performance in terms of internal vibration dissipation. Such a chassis is capable of suppressing vibrations that occur at spurious frequencies. All components of the amplifier are optimally positioned and are not affected by vibrations caused by the sound pressure of the speakers.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

Model name
TAD-M700S
Input sensitivity (mV)
1500
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
175
Output power (4Ω) (W)
350
Gain (dBu)
29.5
Frequency response low +/- 3dB (Hz)
1
Frequency response high +/- 3dB (Hz)
100 000
Signal to Noise Ratio (dB)
125
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
<0.005
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
516 x 296 x 622
Weight (kg)
75.5
Official link
https://www.technicalaudiodevices.com/m700_m700s/
