Hifiverse

Power amplifiers stereo — Nuprime Audio STA-9

Description, images, technical data and specifications

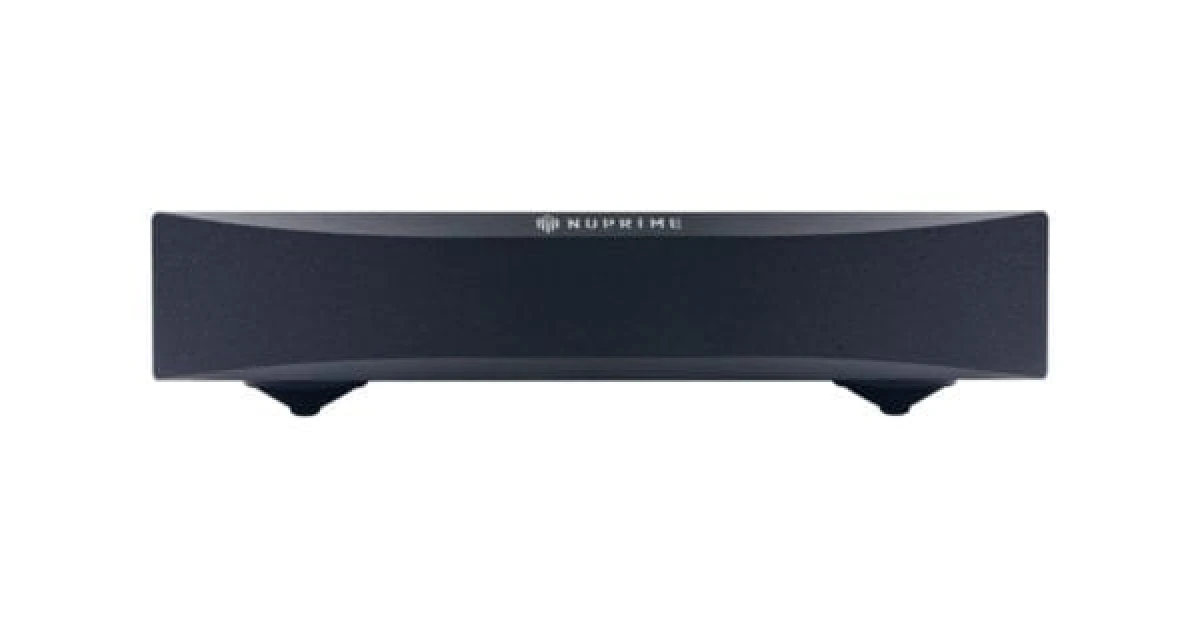

Nuprime Audio STA-9
Image source — © Nuprime Audio

The NuPrime STA-9, a 2 x 120W Class A+D stereo amplifier coupled to a 290W mono amplifier, is designed with an improved even-order harmonic circuit that mimics the most attractive sound characteristics of tube amplifiers without the disadvantages of lamps and limitations. The spacious, transparent, dynamic and luxuriously textured STA9 sound stage must be heard to believe it.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    STA-9

  • Input sensitivity (mV)

    232.8

  • Input impedance (balanced) (Ω)

    47 000

  • Input impedance (single-ended) (Ω)

    47 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    20 000 000

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    280

  • Output power (4Ω) (W)

    320

  • Gain (dBu)

    x22

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    50 000

  • Signal to Noise Ratio (dB)

    <95

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    0.01

  • Max power consumption (W)

    N/A

  • Damping factor

    N/A

  • Dimensions (mm)

    55 x 235 x 281

  • Weight (kg)

    4

  • Official link

    https://nuprimeaudio.com/product/sta-9/

Nuprime Audio STA-9X

More components

  • AMG STA-SE

    Power amplifiers stereo

    Nuprime Audio AMG STA-SE

    The “Power Engine” is a low-power switching power supply (SMPS) for low voltages on the amp board. The large linear power supply provides high voltages for the Class-D power stage. According to the manufacturer, they have made a breakthrough in SMPS design that can rival linear power supplies. This “Power Engine” is the first use of such a design for AMG STA-SE.

  • AMG STA

    Power amplifiers stereo

    Nuprime Audio AMG STA

    The NuPrime AMG STA includes several advanced power amplifier design innovations. Its best-in-class features include a 1 mOhm input impedance, high instantaneous current for power supply, a 700 kHz switching frequency, and an unbalanced Class A non-negative module combined with a Class D dual feedback module for 300W mono amplifier power.

  • AMG PRA

    Power amplifiers stereo

    Nuprime Audio AMG PRA

    NuPrime is a small AMG STA power amplifier capable of delivering 300 watts at 8 ohms in bridge mode and 320 Watts at 4 ohms load. He achieves such indicators by using a clever scheme that combines two cascades – one in class A on JFET transistors and the second in class D. In traditional stereo mode, the power is 120 watts per channel at 8 ohms and 200 watts at 4 ohms.

  • STA-9X

    Power amplifiers stereo

    Nuprime Audio STA-9X

    The STA-9 is a Class A+D stereo amplifier. In stereo mode, its power is 120 watts per channel, but it can also work in mono amplifier mode with a power of 290 watts. The amplifier circuit is borrowed from the IDA-8, which is based on a high-impedance class A pre-stage and a Class D power stage. Thanks to this, the novelty sounds "almost lamp-like", but at the same time it is clear and reliable. The 95 dB signal-to-noise ratio is achieved by JFET transistors simulating triodes.
