Power amplifiers stereo — Nuprime Audio AMG STA
Description, images, technical data and specifications

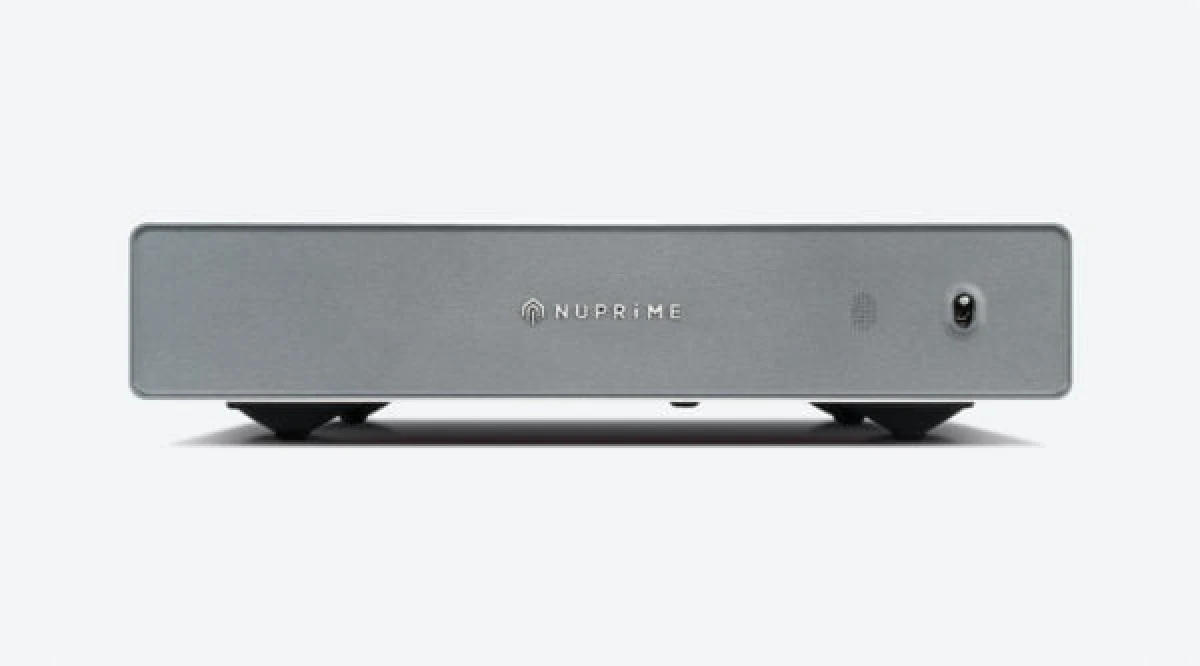

Nuprime Audio AMG STA
Image source — © Nuprime Audio
What is it?
Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.
Specifications
Model name
AMG STA
Input sensitivity (mV)
1200
Input impedance (balanced) (Ω)
1 000 000
Input impedance (single-ended) (Ω)
1 000 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
0.02
Max current (A)
N/A
Output power (8Ω) (W)
130
Output power (4Ω) (W)
200
Gain (dBu)
26
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
50 000
Signal to Noise Ratio (dB)
100
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
0.006
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
55 x 235 x 300
Weight (kg)
4.5
Official link
