Power amplifiers stereo — Cary Audio SA-200.2 ES
Description, images, technical data and specifications
Cary Audio SA-200.2 ES
Image source — © Cary Audio
The Cary SA-200.2 ES is a stereo amplifier with a power of 200 watts per channel at 8 ohms or 350 watts at 4 ohms. There are both unbalanced and balanced connectors on the back of the SA-200.2 ES.
Specifications
Model name
SA-200.2 ES
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
22 000
Input impedance (single-ended) (Ω)
22 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
2 x 200
Output power (4Ω) (W)
2 x 350
Gain (dBu)
28
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
50 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
N/A
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
197 × 450 × 495
Weight (kg)
29.5
Official link
More components
Power amplifiers stereo

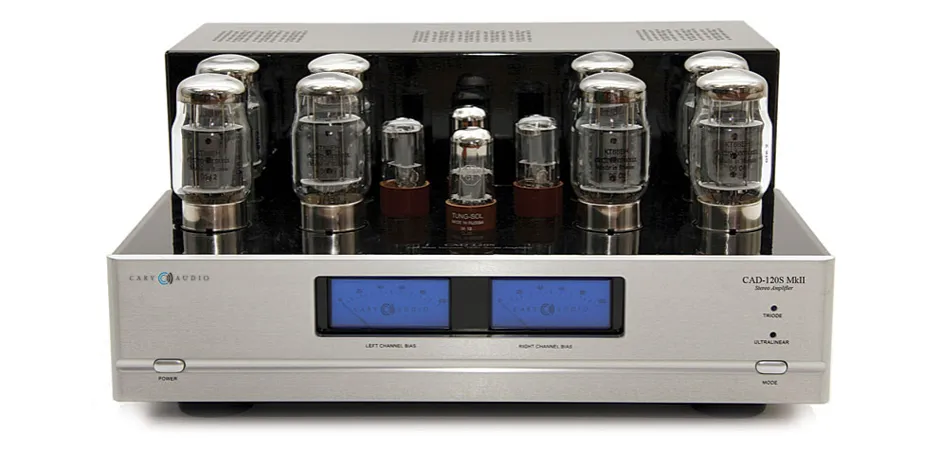

Cary Audio CAD-120S MKII
