Power amplifiers stereo — Cary Audio CAD-120S MKII
Description, images, technical data and specifications
Cary Audio CAD-120S MKII
Image source — © Cary Audio
The Cary Audio CAD 120S is a modern tube power amplifier. The amplifier design is equipped with four 6SN7 lamps and eight KT88 lamps. All lamps are located on the outside of the case. The operating frequencies range from 17 to 25,000 Hz.
Specifications
Model name
CAD-120S MKII
Input sensitivity (mV)
1240
Input impedance (balanced) (Ω)
100 000
Input impedance (single-ended) (Ω)
100 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
120 (Ultralinear) + 60 (Triode)
Output power (4Ω) (W)
120 (Ultralinear) + 60 (Triode)
Gain (dBu)
28
Frequency response low +/- 3dB (Hz)
17
Frequency response high +/- 3dB (Hz)
25 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
N/A
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
203 × 432 × 356
Weight (kg)
29,5
Official link
More components
Power amplifiers stereo

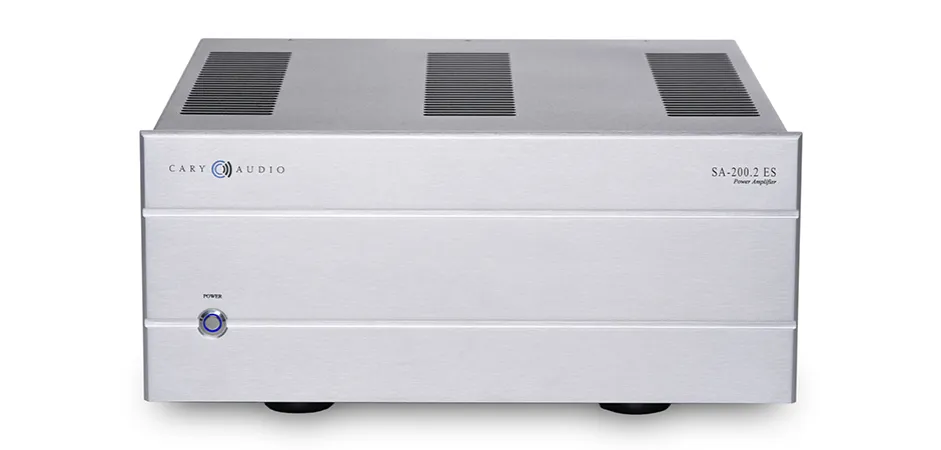

Cary Audio SA-200.2 ES
