Power amplifiers stereo — Anthem MCA 325 GEN 2
Description, images, technical data and specifications

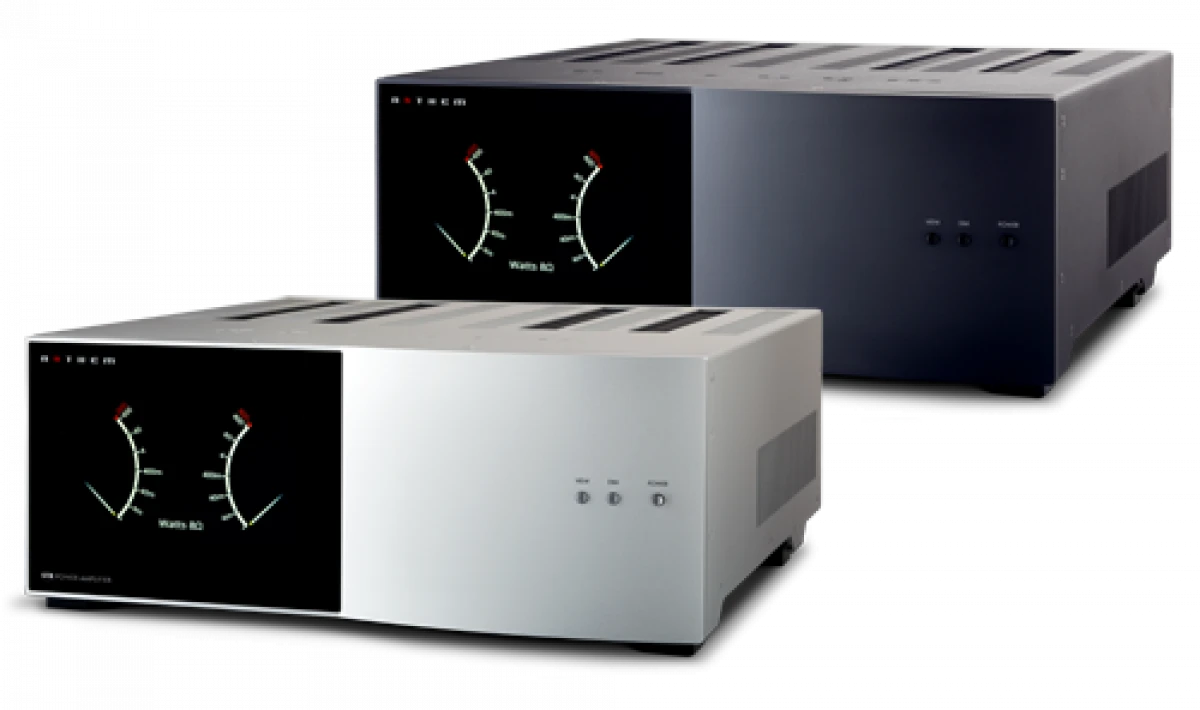

Anthem MCA 325 GEN 2
Image source — © Anthem
Specifications
Model name
MCA 325 GEN 2
Input sensitivity (mV)
1500
Input impedance (balanced) (Ω)
15 000
Input impedance (single-ended) (Ω)
10 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
225
Output power (4Ω) (W)
400
Gain (dBu)
29
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
0.0010
Max power consumption (W)
1200
Damping factor
300
Dimensions (mm)
169 × 439 × 460
Weight (kg)
27.5
Official link
