Power amplifiers stereo — Gryphon Audio ESSENCE
Description, images, technical data and specifications

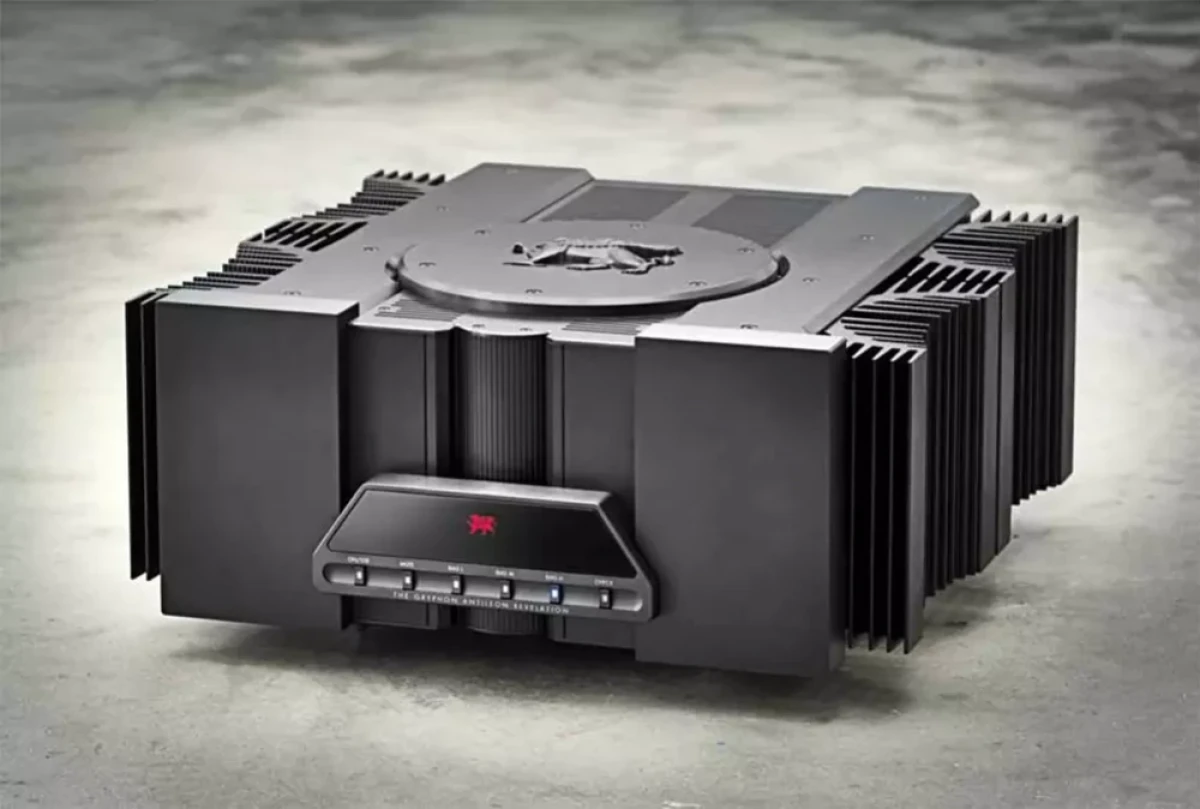

Gryphon Audio ESSENCE
Image source — © Gryphon Audio
The Gryphon Essence Stereo is equipped with a capacitor bank with a total capacity of 440,000 UF and weighs 45 kg. There is no global negative feedback, a servo drive is used for direct current communication. The design, of course, is balanced, a full-fledged "double mono". A specially manufactured shielded high-current toroidal transformer with separate windings for the left and right channels was used.
Specifications
Model name
ESSENCE
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
20 000
Input impedance (single-ended) (Ω)
20 000
Output impedance (balanced) (Ω)
0.015
Output impedance (single-ended) (Ω)
0.015
Max current (A)
N/A
Output power (8Ω) (W)
2 x 50
Output power (4Ω) (W)
N/A
Gain (dBu)
31
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
<1
Max power consumption (W)
1350
Damping factor
N/A
Dimensions (mm)
470 × 240 × 460
Weight (kg)
45
Official link
More components
Power amplifiers stereo
Gryphon Audio Antileon Revelation
Power amplifiers stereo
Gryphon Audio ANTILEON EVO
Power amplifiers stereo

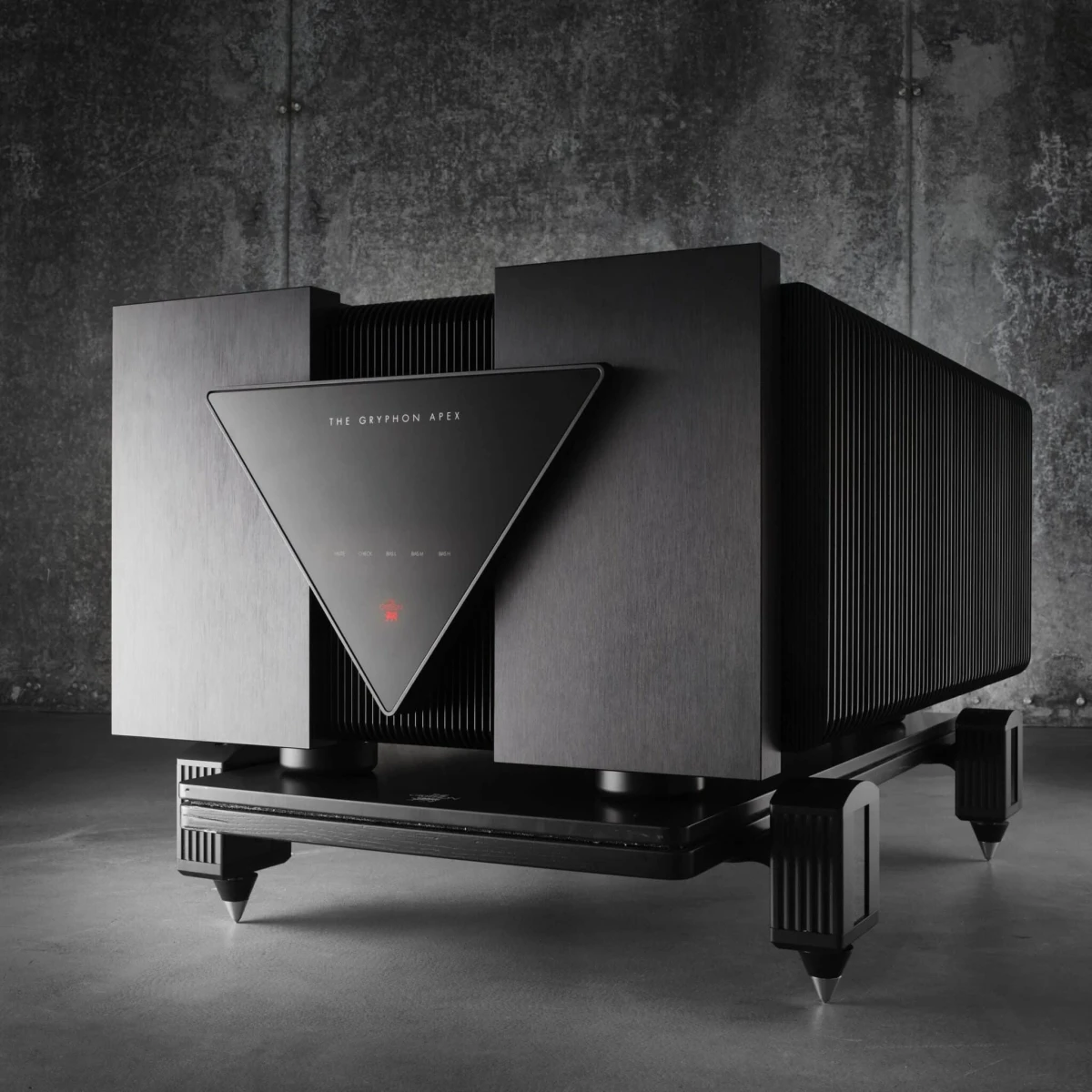

Gryphon Audio Apex Stereo
