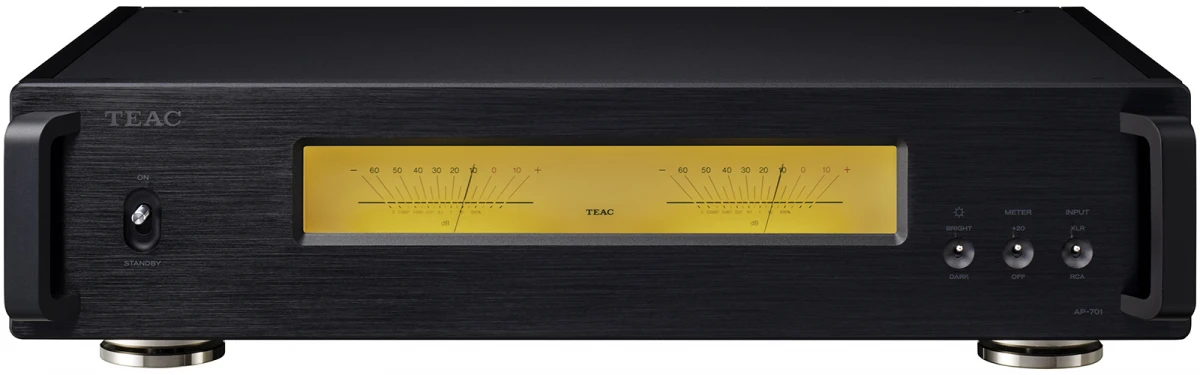

TEAC AP-505
Image source — © TEAC

The TEAC AP-505 is a stereo power amplifier that outputs 115 watts per channel (at a load of 4 ohms), but it occupies an area only like a sheet of A4 paper. For amplification, Ncore modules specially tuned by TEAC engineers from the Dutch company Hypex are used, characterized by transparent sound, low distortion and low heat dissipation, as well as excellent signal-to-noise ratio.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    AP-505

  • Input sensitivity (mV)

    1300 (XLR) + 660 (RCA)

  • Input impedance (balanced) (Ω)

    10 000

  • Input impedance (single-ended) (Ω)

    10 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    90

  • Output power (4Ω) (W)

    130

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    50 000

  • Signal to Noise Ratio (dB)

    113

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    0.0015

  • Max power consumption (W)

    106

  • Damping factor

    >370

  • Dimensions (mm)

    290 × 84.5 × 271

  • Weight (kg)

    4.4

  • Official link

    https://teac.jp/int/product/ap-505/
