Power amplifiers stereo — TEAC AP-701
Description, images, technical data and specifications
TEAC AP-701
Image source — © TEAC
Teac AP-701 Dual-channel power amplifier: Hypex Ncore custom modules in strict dual mono. The Teac AP-701 stereo amplifier led the Reference series. This is a fully balanced amplifier made in full—fledged "dual mono" - starting with separate power transformers. Two Hypex Electronics Corp power amplifier modules designed specifically for this model are responsible for the output signal. The signal for them is prepared by discrete buffer amplifiers.
Specifications
Model name
AP-701
Input sensitivity (mV)
1600
Input impedance (balanced) (Ω)
64 000
Input impedance (single-ended) (Ω)
32 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
170
Output power (4Ω) (W)
260
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
50 000
Signal to Noise Ratio (dB)
110
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
0.003
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
444 × 111.3 × 348.2
Weight (kg)
9.9
Official link
More components
Power amplifiers stereo

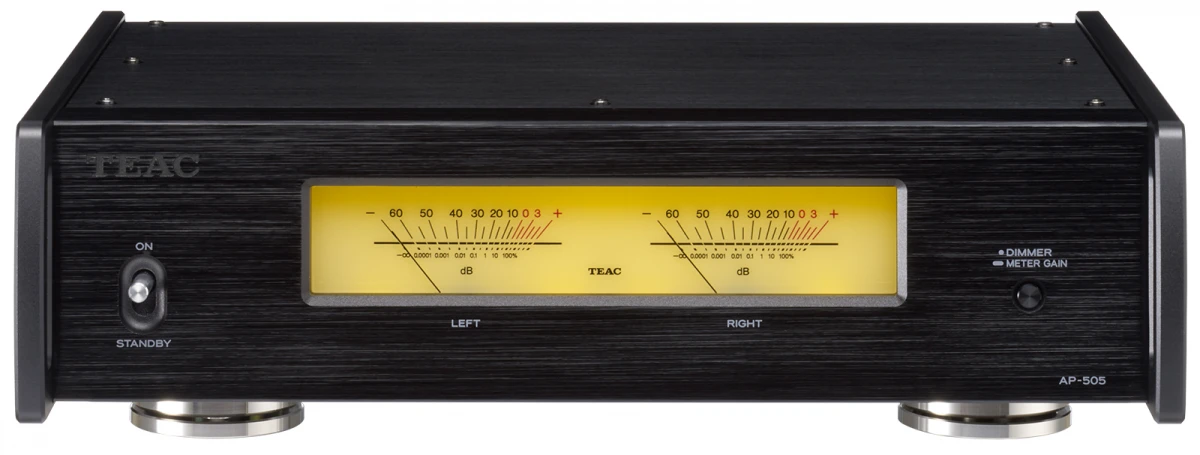

TEAC AP-505
