Power amplifiers mono — Emotiva XPA HC-1

Description, images, technical data and specifications

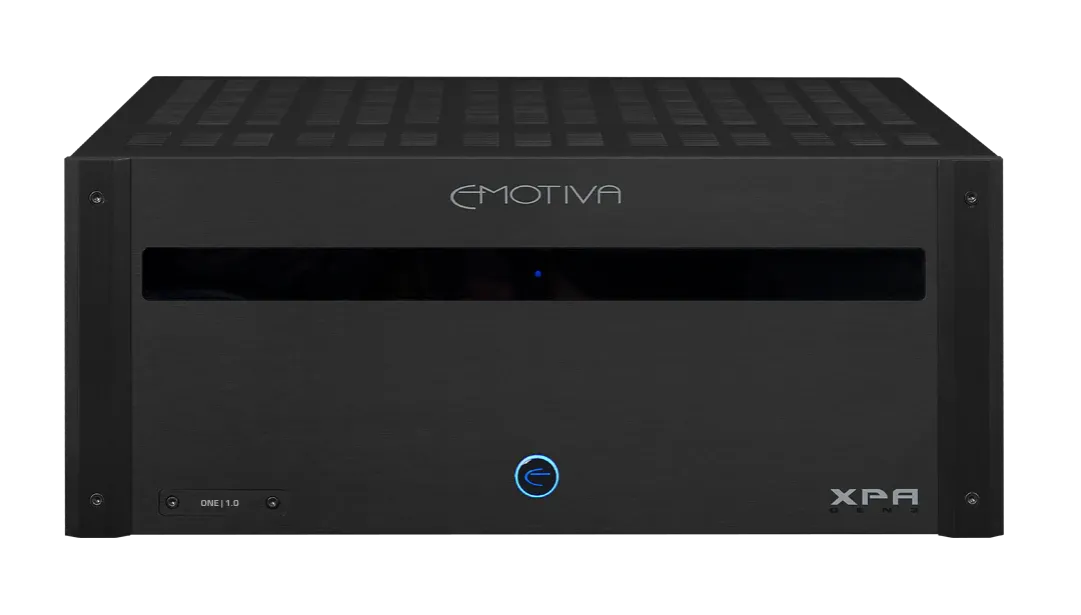

Emotiva XPA HC-1
Image source — © Emotiva

The Emotiva XPA HC-1 amplifier is a monoblock power amplifier built on the basis of XPA Gen3 modules. The amplifier is powered by a powerful SMPS power supply. If you like our XPA Gen3 series amplifiers, but you need a compact monoblock, then HC-1 is the best choice!

Specifications

  • Model name

    XPA HC-1

  • Input sensitivity (mV)

    1710

  • Input impedance (balanced) (Ω)

    33 000

  • Input impedance (single-ended) (Ω)

    23 500

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    300

  • Output power (4Ω) (W)

    600

  • Gain (dBu)

    29

  • Frequency response low +/- 3dB (Hz)

    5

  • Frequency response high +/- 3dB (Hz)

    80 000

  • Signal to Noise Ratio (dB)

    >120

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    < 0.015

  • Max power consumption (W)

    N/A

  • Damping factor

    >500

  • Dimensions (mm)

    213 × 194 × 483

  • Weight (kg)

    12,7

  • Official link

    https://emotiva.com/products/hc-1
