Power amplifiers mono — Dan D'Agostino Relentless Epic 1600 Mono Amplifier
Description, images, technical data and specifications
Dan D'Agostino Relentless Epic 1600 Mono Amplifier
Image source — © Dan D'Agostino
The Relentless Epic 1600 mono amplifier is a truly balanced design, but unlike conventional bridge amplifiers, the Relentless Epic 1600 mono amplifier uses a single interface topology based on a modern mirror circuit to produce symmetrical plus and minus guides.
Specifications
Model name
Relentless Epic 1600 Mono Amplifier
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
1500
Output power (4Ω) (W)
3000
Gain (dBu)
28
Frequency response low +/- 3dB (Hz)
0.1
Frequency response high +/- 3dB (Hz)
100 000
Signal to Noise Ratio (dB)
>113
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
<0,007
Max power consumption (W)
480
Damping factor
>267
Dimensions (mm)
572 x 280 x 826
Weight (kg)
258
Official link
Related content
More components
Power amplifiers mono

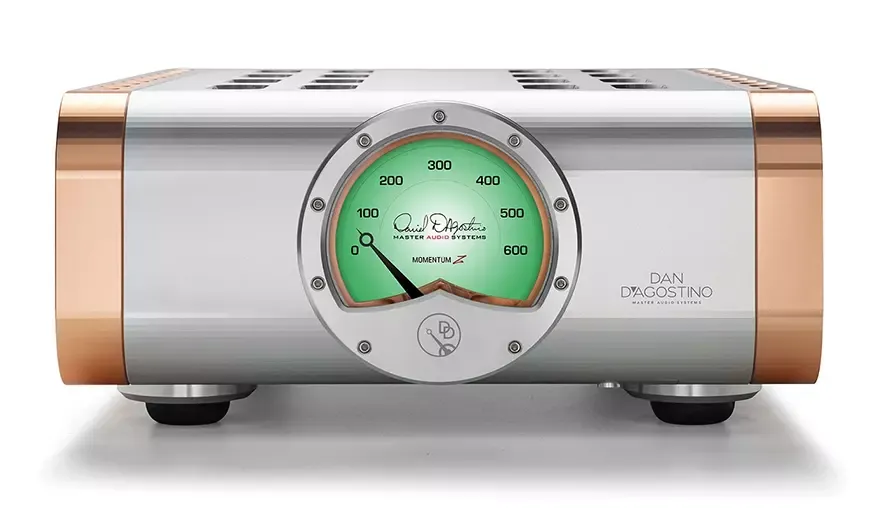

Dan D'Agostino Momentum Z
