Power amplifiers mono — Karan Acoustics POWERa STEREO
Description, images, technical data and specifications

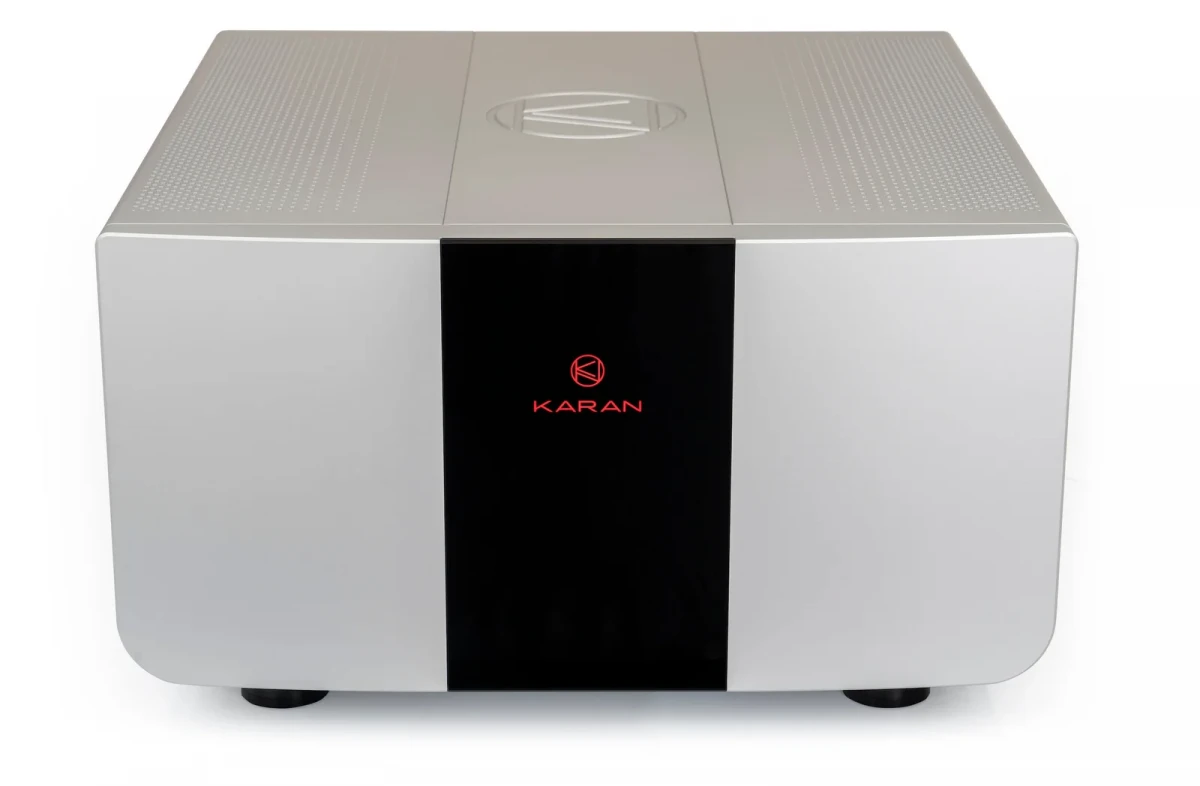

Karan Acoustics POWERa STEREO
Image source — © Karan Acoustics
What is it?
Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.
Specifications
Model name
POWERa STEREO
Input sensitivity (mV)
2000
Input impedance (balanced) (Ω)
30 000
Input impedance (single-ended) (Ω)
30 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
2 × 650
Output power (4Ω) (W)
2 × 1100
Gain (dBu)
30
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
>120
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
0.03
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
504 x 292 x 603
Weight (kg)
105
Official link
