Power amplifiers mono — Karan Acoustics POWERb STEREO
Description, images, technical data and specifications

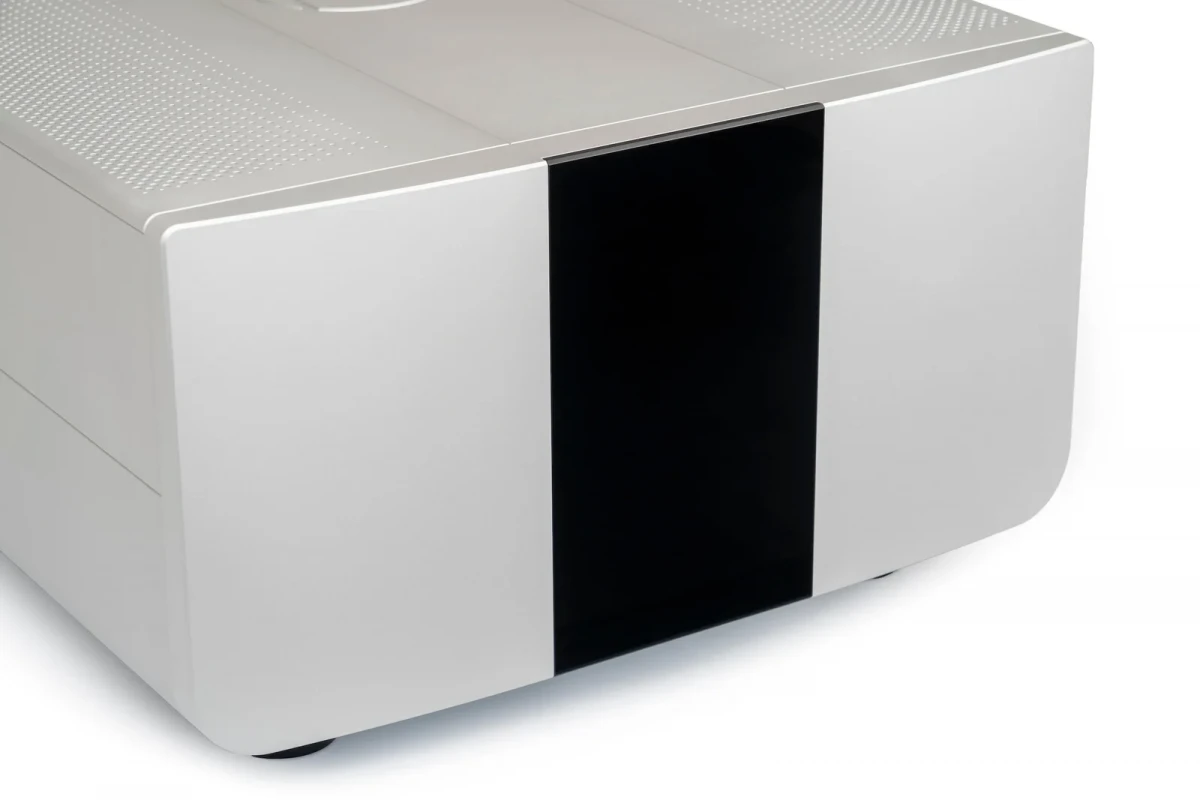

Karan Acoustics POWERb STEREO
Image source — © Karan Acoustics
The Karan Master Collection POWERb amplifiers incorporate new performance and design elements that make them the best amplifiers Karan has ever produced. POWERb uses superior passive and active components, including customized ones, and improves on its previous models in all respects. Ensuring optimal audio signal processing, Karan uses printed circuit boards with copper thickness from 75 to 100 microns on all layers. These electronic boards are completely decoupled and isolated from the device chassis.
Specifications
Model name
POWERb STEREO
Input sensitivity (mV)
2000
Input impedance (balanced) (Ω)
30 000
Input impedance (single-ended) (Ω)
30 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
450
Output power (4Ω) (W)
800
Gain (dBu)
30
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
>120
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
<0.03
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
504 x 292 x 521
Weight (kg)
81
Official link
