Power amplifiers mono — Trafomatic Audio Pandora

Description, images, technical data and specifications

Trafomatic Audio Pandora
Image source — © Trafomatic Audio

The amplifier circuit is based on powerful straight-channel Svetlana 811-10 triodes, which develop an output power of 40 watts in pure class A. Pandora monoblocks will bring to your home a rich palette of timbral shades in the best traditions of Trafomatic Audio: deep and clear bass, luxurious middle, airy and seamless top.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    Pandora

  • Input sensitivity (mV)

    1400

  • Input impedance (balanced) (Ω)

    47 000

  • Input impedance (single-ended) (Ω)

    N/A

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    40

  • Output power (4Ω) (W)

    N/A

  • Gain (dBu)

    28

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    90 000

  • Signal to Noise Ratio (dB)

    88

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    0.2

  • Max power consumption (W)

    N/A

  • Damping factor

    N/A

  • Dimensions (mm)

    340 x 480 x 270

  • Weight (kg)

    32

  • Official link

    https://www.trafomaticaudio.com/products/pandora/?portfolioCats=12

Trafomatic Audio Elysium

Trafomatic Audio Glenn

More components

  • Glenn

    Power amplifiers mono

    Trafomatic Audio Glenn

    With two 300B direct-glow triodes operating in grid current mode, Glenn is capable of developing 12 watts. During normal operation of the output lamps, the power increases to 18 watts. The use of 300B XLS lamps from Emission Labs in the output stage allows you to increase the output power to 25 watts.

  • Elysium

    Power amplifiers mono

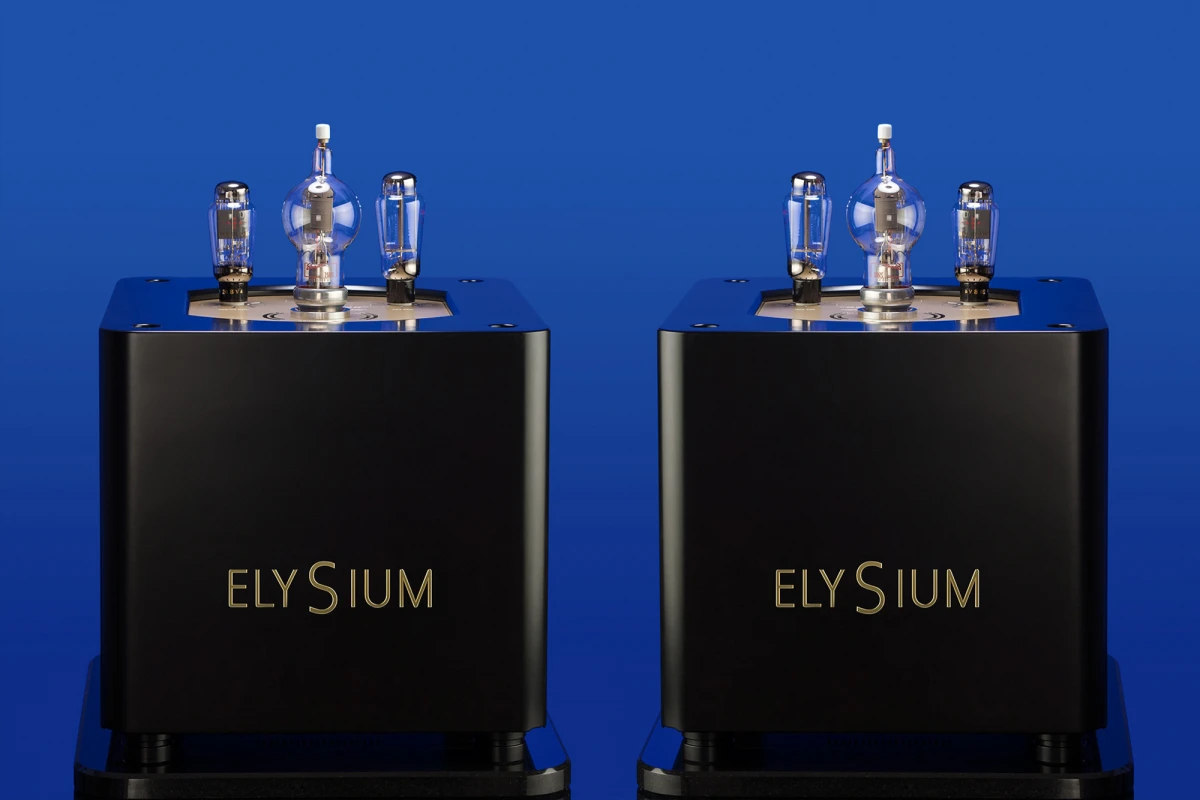

    Trafomatic Audio Elysium
