Power amplifiers mono — Trafomatic Audio Elysium
Description, images, technical data and specifications
Trafomatic Audio Elysium
Image source — © Trafomatic Audio
Elysium is a perfectly debugged single—stroke pure Class A circuit based on straight-channel Eimac 250TL triodes with an output power of 60 watts. The power supply uses an EML 5Z3 tube rectifier, and the EML 20b-V4 driver stage is loaded onto the output lamps via a unique interstage transformer: an original solution that has not been used before and which allows you to extract everything from the input signal that it contains.
Specifications
Model name
Elysium
Input sensitivity (mV)
3500
Input impedance (balanced) (Ω)
47 000
Input impedance (single-ended) (Ω)
47 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
70
Output power (4Ω) (W)
N/A
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
60 000
Signal to Noise Ratio (dB)
83
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
0.3
Max power consumption (W)
N/A
Damping factor
N/A
Dimensions (mm)
620x520x800
Weight (kg)
85
Official link
More components
Power amplifiers mono

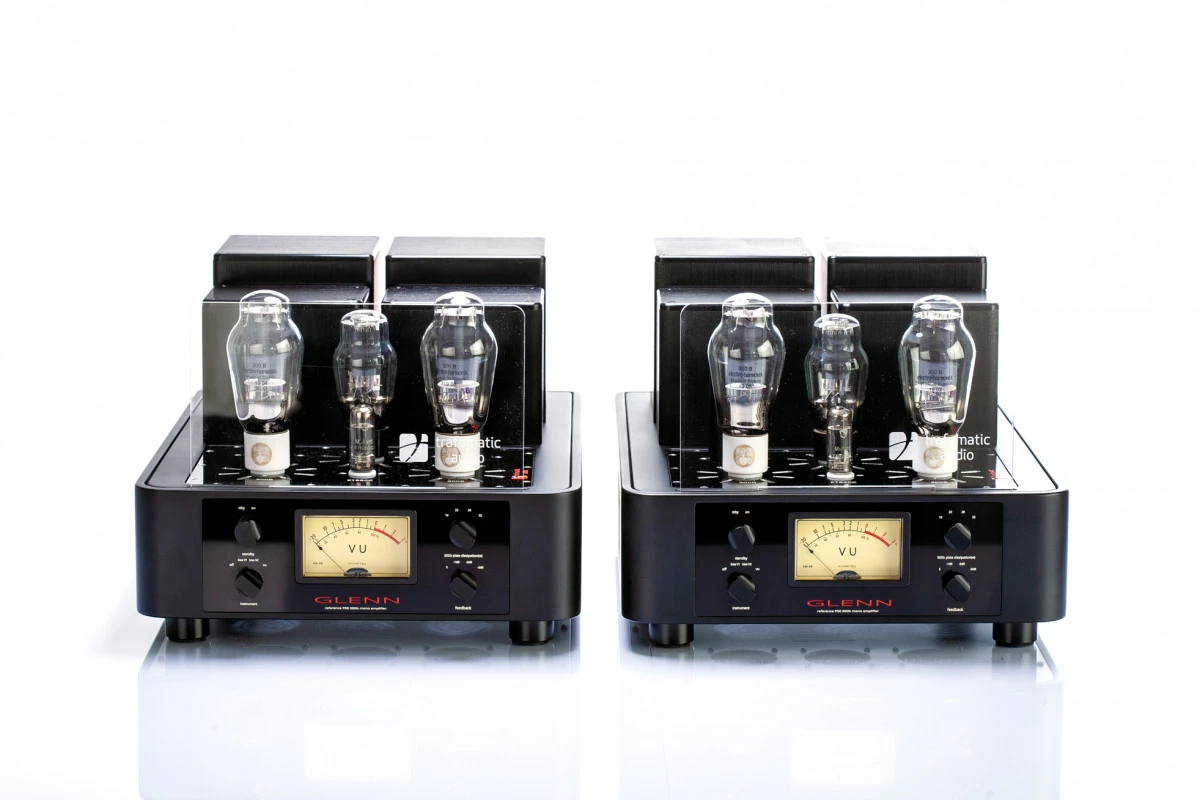

Trafomatic Audio Glenn
Power amplifiers mono

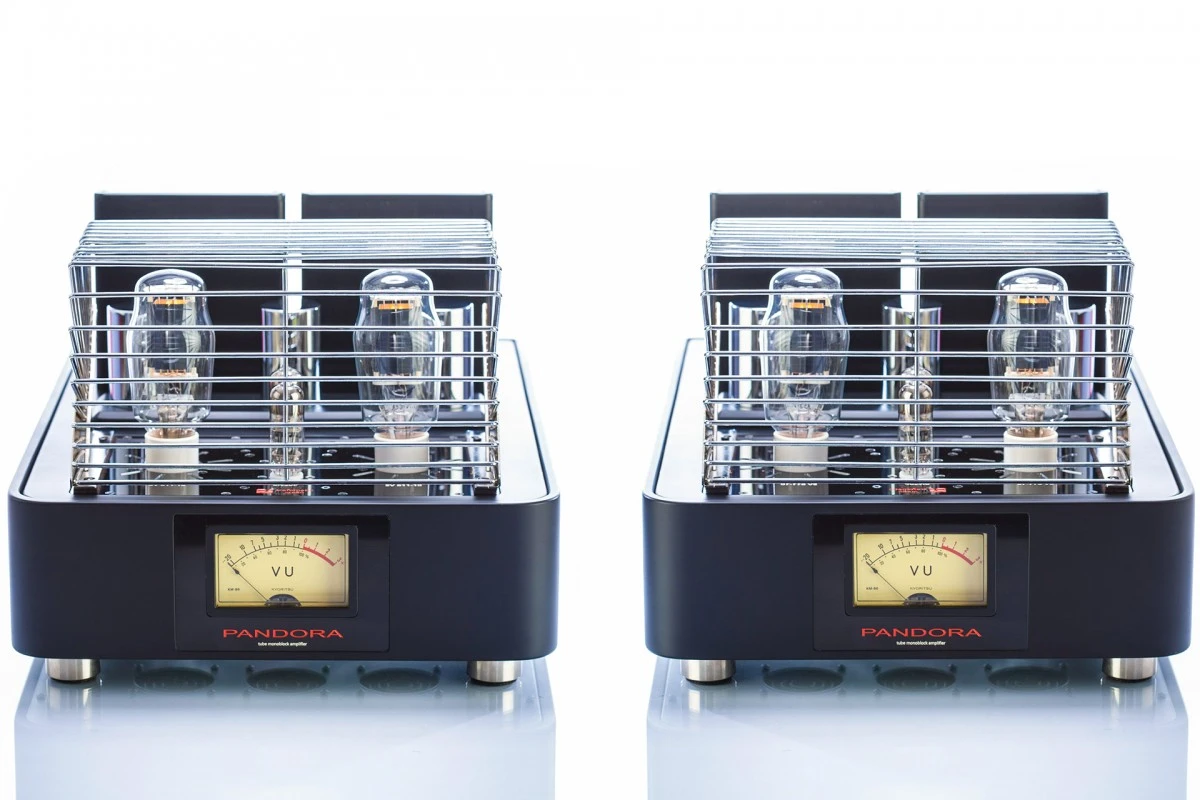

Trafomatic Audio Pandora
