Power amplifiers mono — AVM Ovation MA 6.3

Description, images, technical data and specifications

AVM Ovation MA 6.3
Image source — © AVM

The AVM MA 6.3 mono amplifier concept is well known for the award-winning "8" power amplifiers. With a high output power of 680 watts per channel, the MA 6.3 features a compact OVATION enclosure equipped with external radiators. The MA 6.3 is designed as a balanced Class A/AB amplifier, which has output stages on MOS-FET transistors. These MOSFET transistors are inherently much faster than bipolar transistors, but they are much more difficult to handle. The speed of this MOS FET-based circuit helps realize an unprecedented level of tonal detail.

Specifications

Model name
Ovation MA 6.3
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
14 000
Input impedance (single-ended) (Ω)
6800
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
680
Output power (4Ω) (W)
1000
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
5
Frequency response high +/- 3dB (Hz)
50 000
Signal to Noise Ratio (dB)
101
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
< 0,1
Max power consumption (W)
1000
Damping factor
>400
Dimensions (mm)
430x130x39
Weight (kg)
21
Official link
https://avm.audio/masterpieces/ovation-ma-6-3/

AVM MA 30.3 mkII

AVM Ovation MA 8.3

More components

Power amplifiers mono

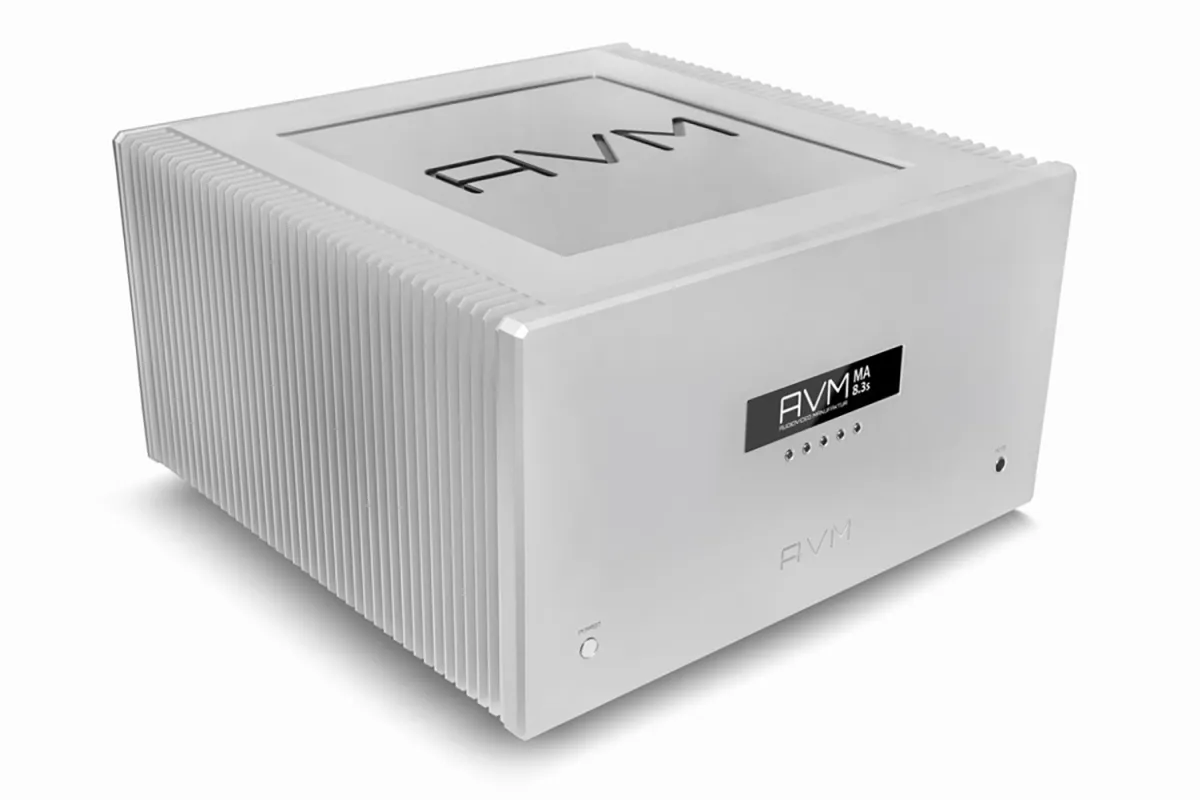

AVM Ovation MA 8.3
The power of the new monoblocks is more than 1 kilowatt per channel, and a 1,000 VA toroidal transformer and 40,000 microfarad filter capacitors are installed in the power supply of each amplifier. The upper panel is made of glass and reveals the internal structure of the device to those who wish. A pair of monoblocks weighs 85 kilograms, and 24 manually selected transistors work in the output stage.
Power amplifiers mono

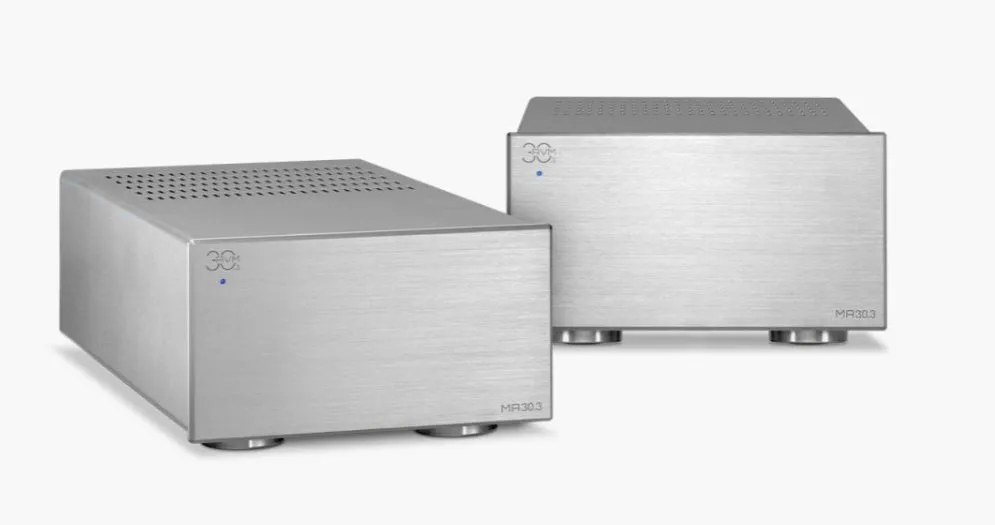

AVM MA 30.3 mkII
All functions of the MA 30.3 are automated (protection circuit, etc.). There are also extensive configuration options with which you can select the activation modes (automatic, trigger, permanent). Using the AIR (AVM Intelligent Remote) function, the output stages of current AVM preamps (e.g. PA 30.3, PA 8.3, etc.) can be switched on and off without the need for a separate trigger cable. The required control signal is simply transmitted via an RCA or XLR cable.
