Power amplifiers mono — Lamm Industries ML2.2

Description, images, technical data and specifications

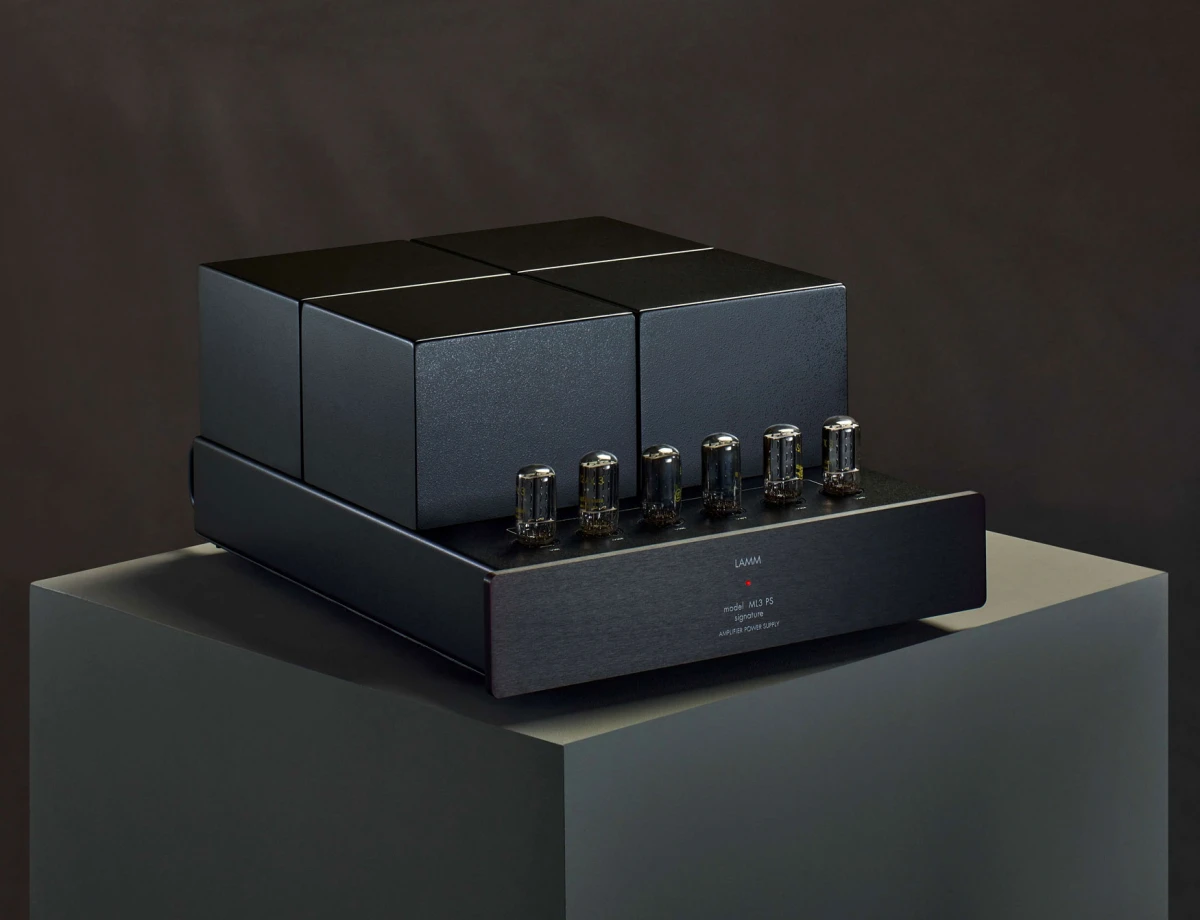

Lamm Industries ML2.2
Image source — © Lamm Industries

Compared to the previous model of monoblocks (ML2.1), the ML2.2 is distinguished by an improved mains transformer and five pulsation filter chokes (unlike the two in ML2.1). The anode power stabilizer circuit has been improved, and higher-quality components have been applied. The output stage has been completely redesigned, based on the input stage of the ML3 Signature amplifier (it should be noted that the ML2.2 is closer to the ML3 Signature than to the ML2.1 in terms of sound).

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    ML2.2

  • Input sensitivity (mV)

    850

  • Input impedance (balanced) (Ω)

    41 000

  • Input impedance (single-ended) (Ω)

    41 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    1.68 (6Ω)

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    20

  • Output power (4Ω) (W)

    20

  • Gain (dBu)

    19.97

  • Frequency response low +/- 3dB (Hz)

    3

  • Frequency response high +/- 3dB (Hz)

    80 000

  • Signal to Noise Ratio (dB)

    N/A

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    N/A

  • Max power consumption (W)

    N/A

  • Damping factor

    N/A

  • Dimensions (mm)

    21 × 40.61 × 51.75

  • Weight (kg)

    36.8

  • Official link

    https://www.lammindustries.com/products/ml22/
