Power amplifiers mono — PS Audio BHK Mono 600 Power Amplifier

Description, images, technical data and specifications

PS Audio BHK Mono 600 Power Amplifier
Image source — © PS Audio

With a 1.6 kVA power supply, smoothing capacitors with a total capacity of 336,000 microfarads, and the beauty of a tube rectifier, the BHK600 will bring the magic of sound to your system from the very first moment of music playback. For those who are unwilling to compromise, the BHK 600 represents the latest step in creating the most advanced high-quality music system.

Specifications

  • Model name

    BHK Mono 600 Power Amplifier

  • Input sensitivity (mV)

    N/A

  • Input impedance (balanced) (Ω)

    200 000

  • Input impedance (single-ended) (Ω)

    100 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    <70

  • Max current (A)

    N/A

  • Output power (8Ω) (W)

    N/A

  • Output power (4Ω) (W)

    N/A

  • Gain (dBu)

    30.5

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    100 000

  • Signal to Noise Ratio (dB)

    N/A

  • Total Harmonic Distortion + Noise (0% global feedback) (%)

    N/A

  • Total Harmonic Distortion + Noise (100% global feedback) (%)

    <0.002 (1W/8Ω)

  • Max power consumption (W)

    1500

  • Damping factor

    N/A

  • Dimensions (mm)

    436 × 286 × 357

  • Weight (kg)

    49

  • Official link

    https://www.psaudio.com/products/bhk-mono-600-power-amplifier

PS Audio BHK Mono 300 Power Amplifier

PS Audio M1200 Amplifier

More components

  • M700 Amplifier

    Power amplifiers mono

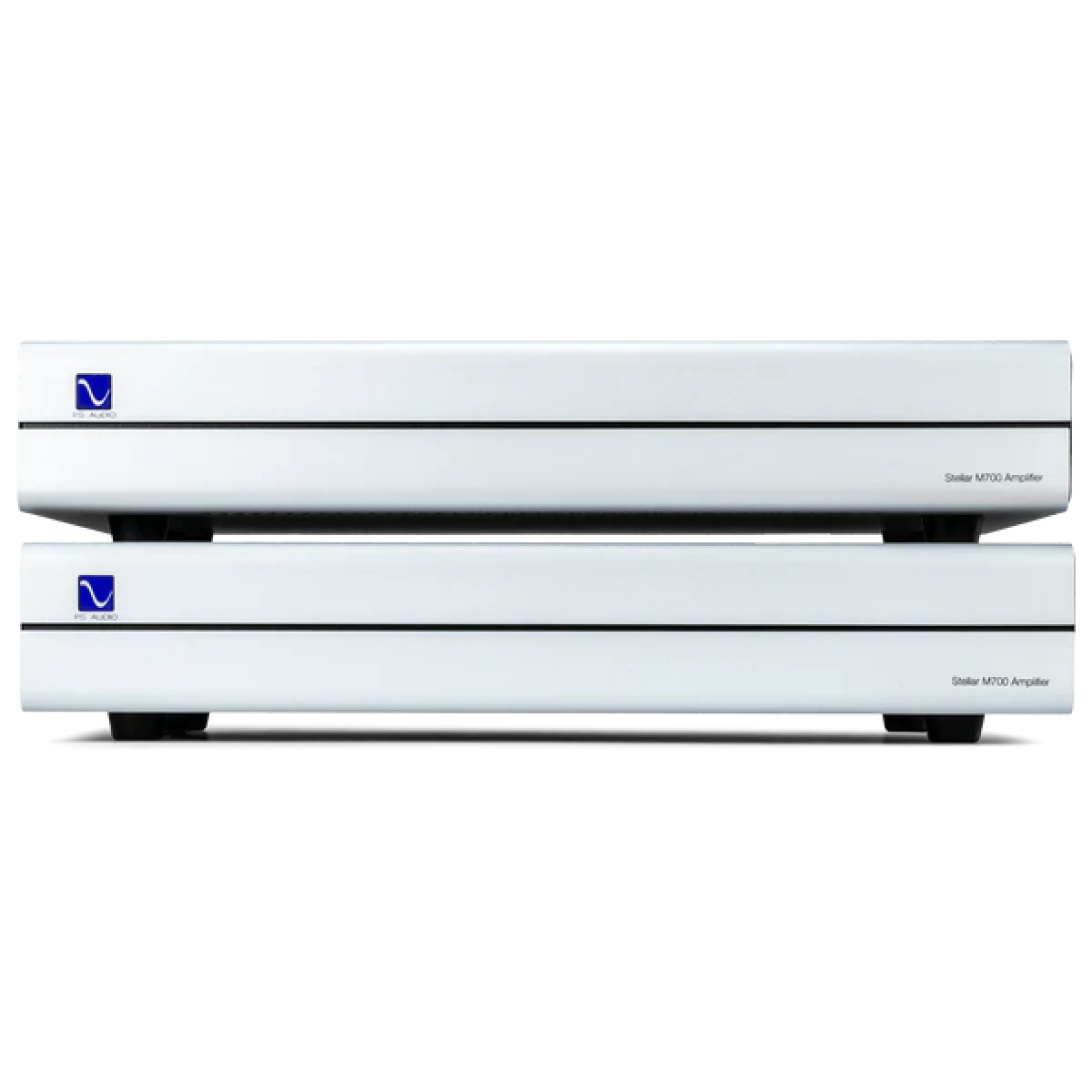

    PS Audio M700 Amplifier

    PS Audio Analog Cell is the heart of the musicality of the M700, where the richness of the layered details of the music is preserved even in the most complex orchestral crescendos. Analog Cell is a proprietary, fully differential, discrete zero-feedback, Class A MOSFET circuit, manually tuned to extract the finest nuances of microdynamics without sacrificing macrodynamics on the loudest music.

  • M1200 Amplifier

    Power amplifiers mono

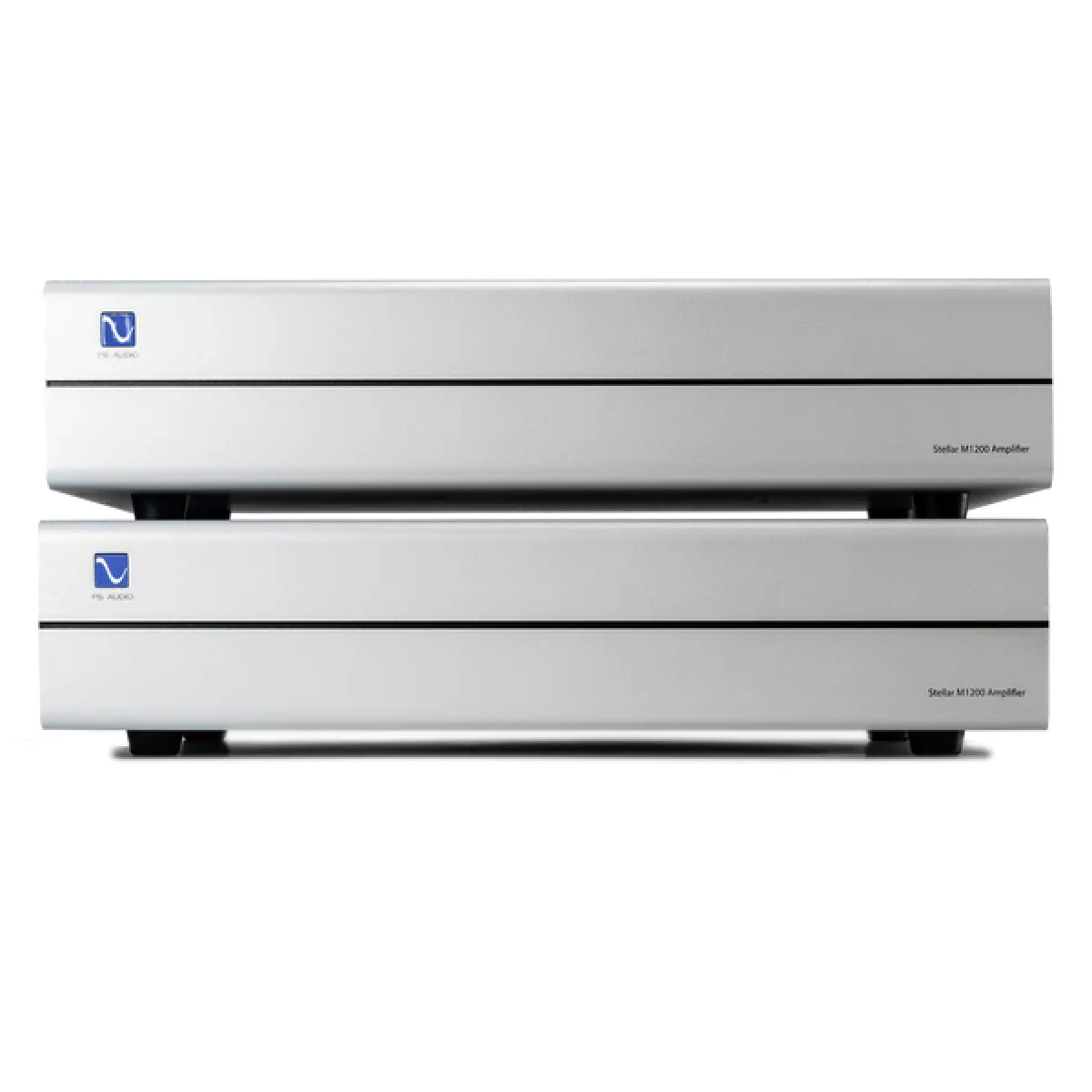

    PS Audio M1200 Amplifier

    The Stellar M1200 mono amplifier combines the rich warmth of sound and the musicality of a tube input with amazing power and a seemingly endless supply of output stage power, producing up to 1200 watts. This extraordinary hybrid amplifier knows no boundaries.

  • BHK Mono 300 Power Amplifier

    Power amplifiers mono

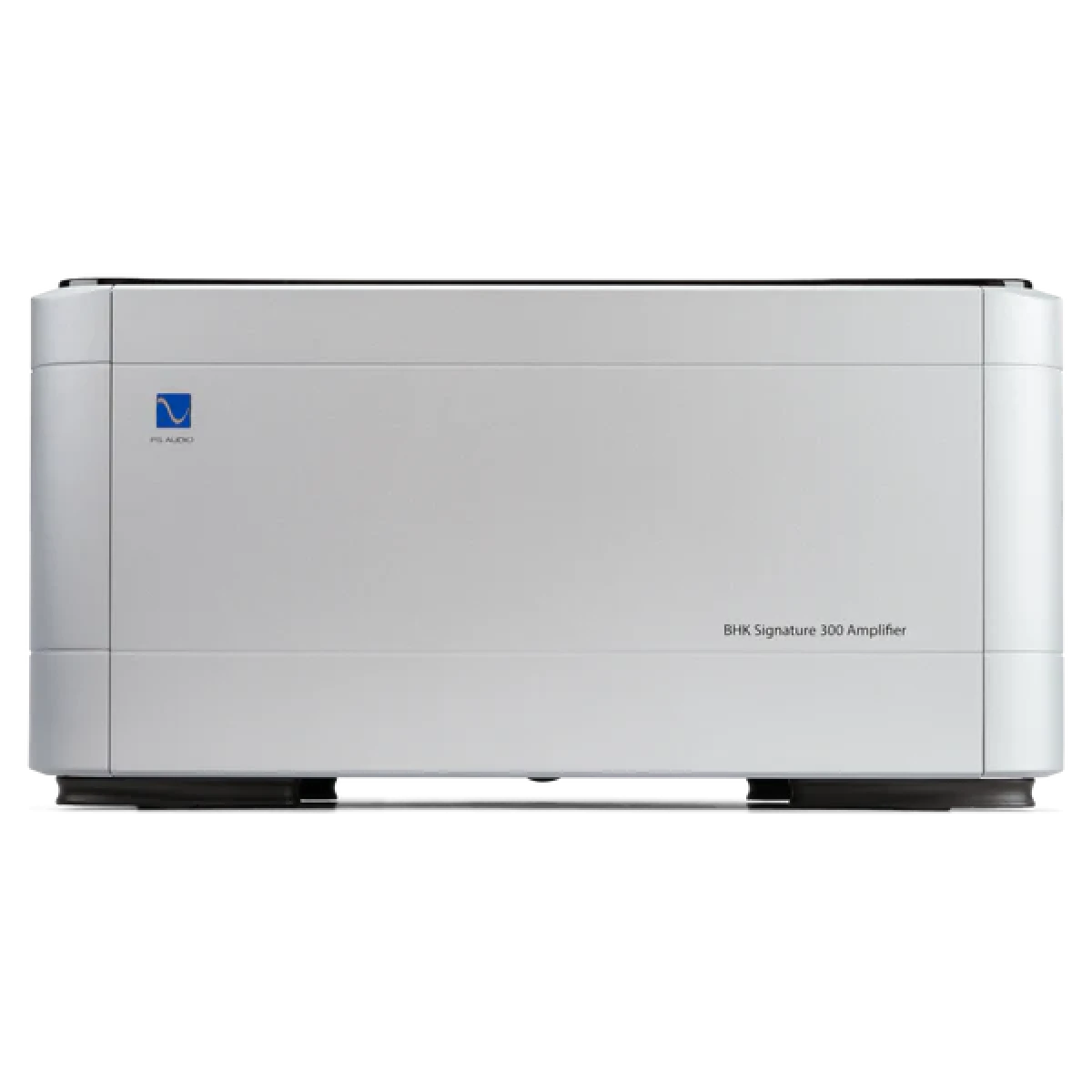

    PS Audio BHK Mono 300 Power Amplifier

    The BHK Signature 300 Mono Mono power amplifier outputs twice as much output current as the stereo model and has half the output impedance. Each BHK Signature monoblock outputs 300 watts/channel at 8 ohms, 600 watts/channel at 4 ohms and 1000 watts at 2 ohms. But it's not just capable of doubling the current, because it has twice as many internal components per channel: lamps, power supplies, transistors, capacitors, and resistors.
