Electrocompaniet AW 300 M
Image source — © Electrocompaniet
The Electrocompaniet AW 300M monoblock power amplifier develops a power of 300 watts when operating on a load with a nominal resistance of 8 ohms. The amplifier uses a feedback-free topology with wide bandwidth amplification stages.
Specifications
Model name
AW 300 M
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
330 000
Input impedance (single-ended) (Ω)
330 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
Max current (A)
N/A
Output power (8Ω) (W)
300
Output power (4Ω) (W)
600
Gain (dBu)
29
Frequency response low +/- 3dB (Hz)
0.5
Frequency response high +/- 3dB (Hz)
1 100 000
Signal to Noise Ratio (dB)
120
Total Harmonic Distortion + Noise (0% global feedback) (%)
N/A
Total Harmonic Distortion + Noise (100% global feedback) (%)
0.0006
Max power consumption (W)
N/A
Damping factor
>1000
Dimensions (mm)
212 × 488 × 292
Weight (kg)
30
Official link
More components
Power amplifiers mono

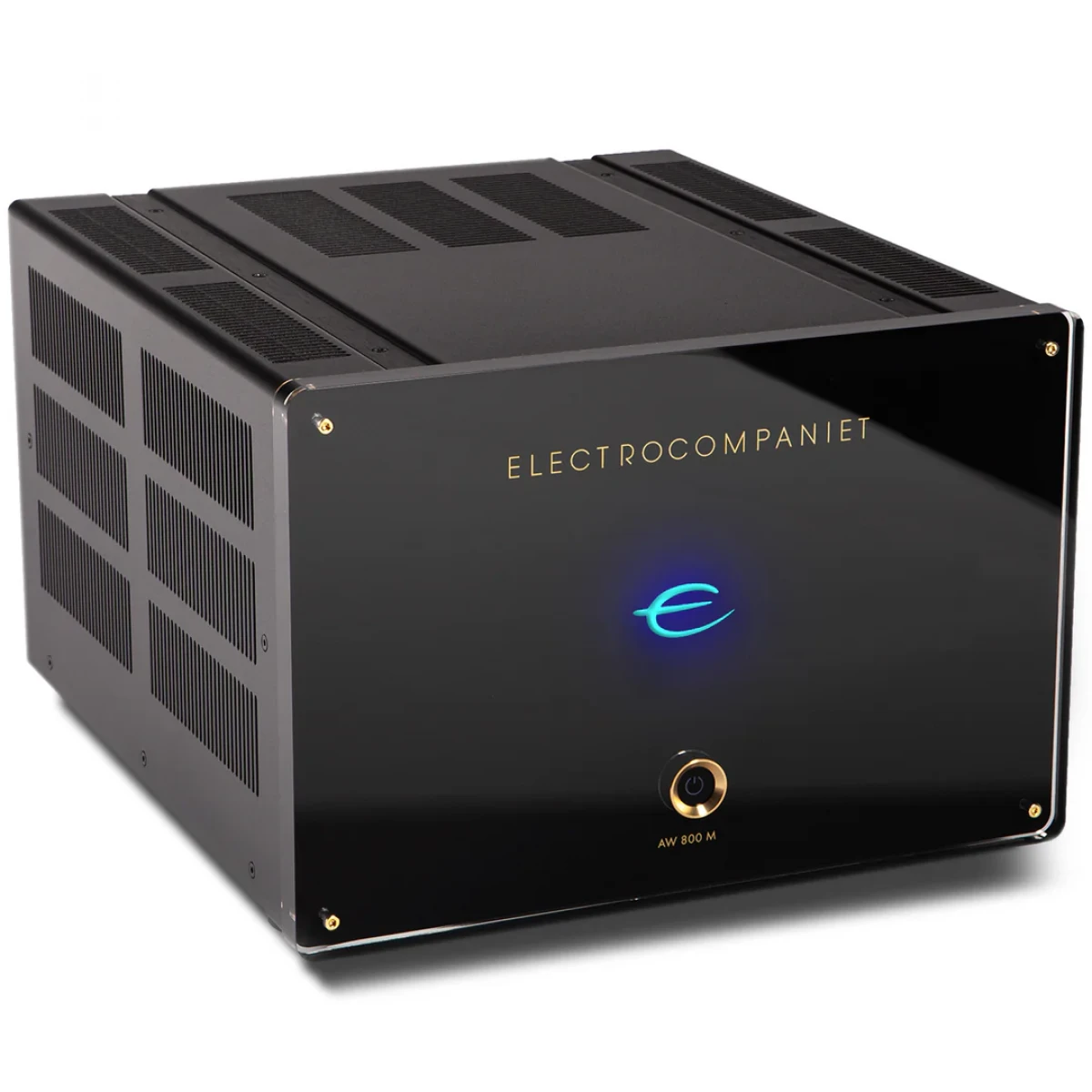

Electrocompaniet AW 800 M
