Integrated amplifiers — Lyngdorf TDAI-1120
Description, images, technical data and specifications
Lyngdorf TDAI-1120
Image source — © Lyngdorf
Among the distinctive features of the Lyngdorf TDAI-1120 streamer amplifier, we note the proprietary calibration system for the acoustic features of the RoomPerfect listening room. The new product provides up to 60 watts of power for each of the two channels when operating at an 8 ohm load and up to 120 watts at a 4 ohm load.
Specifications
Model name
TDAI-1120
Type
Integrated Amplifier with DAC and Phono
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
1 + 1 (Phono)
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
Yes
Phono MM/MC current-sensing input impedance (Ω)
47 000
Output power (8Ω) (W)
60
Output power (4Ω) (W)
120
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (%)
0.05
Damping factor
N/A
Dimensions (mm)
101 x 300 x 260
Weight (kg)
3.3
Official link
More components
Integrated amplifiers

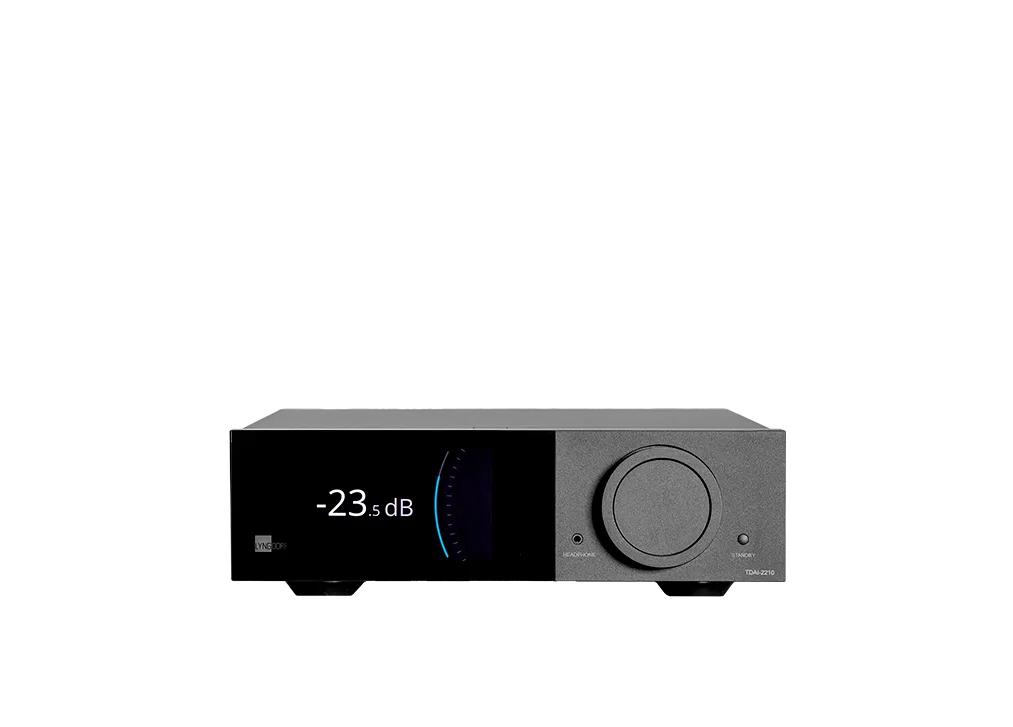

Lyngdorf TDAI-2210
Integrated amplifiers

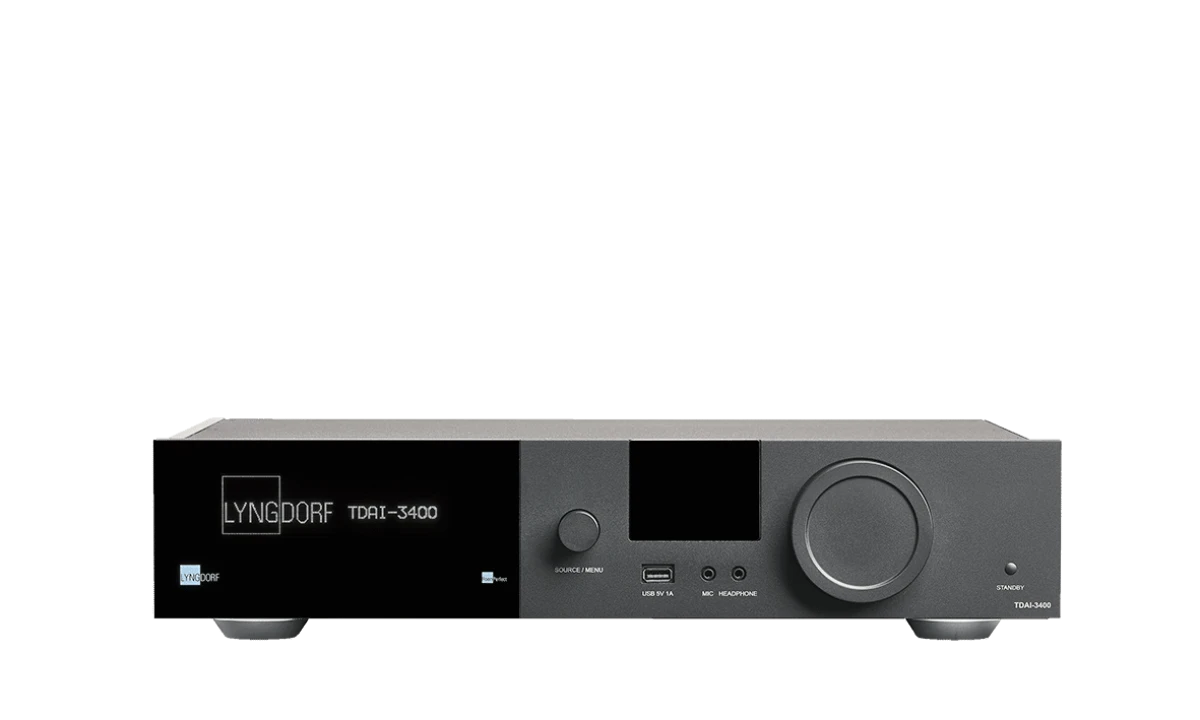

Lyngdorf TDAI-3400
