Integrated amplifiers — Electrocompaniet ECI 80D
Description, images, technical data and specifications

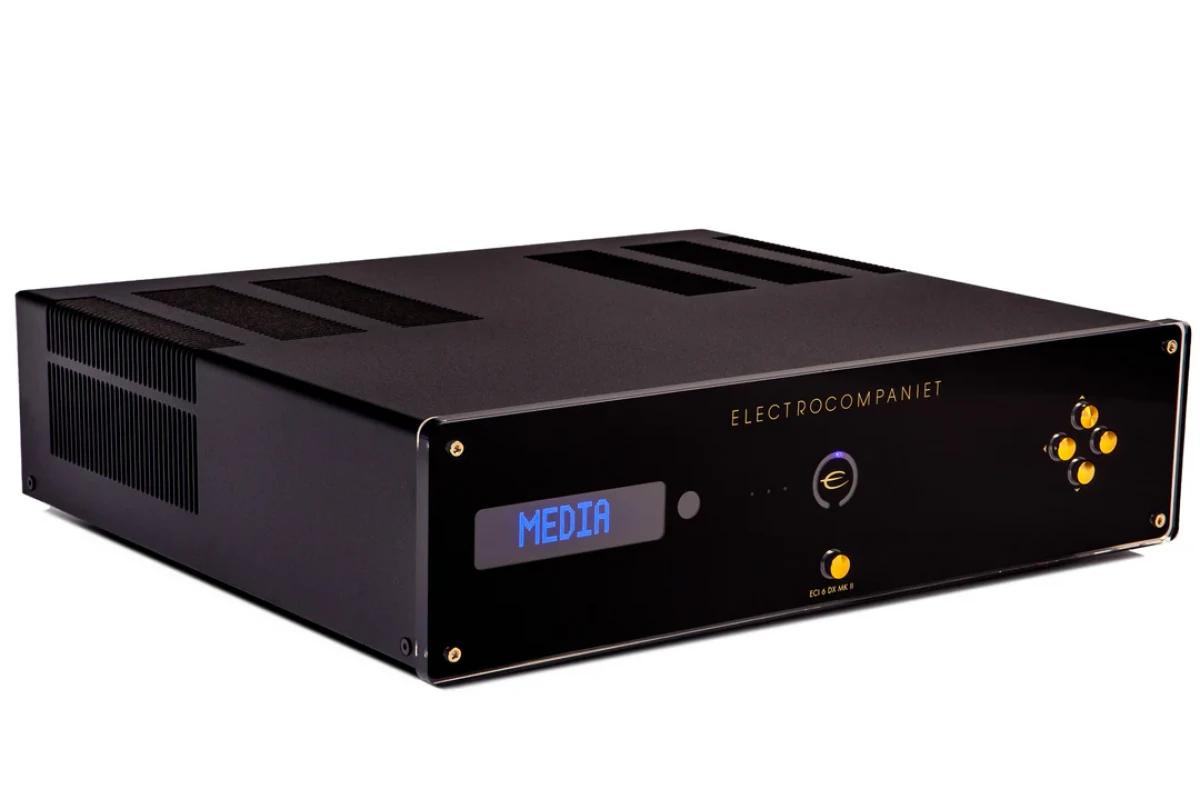

Electrocompaniet ECI 80D
Image source — © Electrocompaniet
The model develops a power of 2x80 watts at 8 ohms, and when an AC with an impedance of 2 ohms is connected, this figure increases to 300 watts. The damping coefficient exceeds 300 units, which allows the amplifier to work with low-resistance speakers. The Electrocompaniet ECI 80 D amplifier uses a balanced circuit topology and the same design principles as in the Classic line.
Specifications
Model name
ECI 80D
Type
Integrated Amplifier with DAC and Phono
Analog inputs (balanced)
N/A
Analog inputs (single-ended)
2 + 1 (Phono)
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
N/A
Input impedance (single-ended) (Ω)
75 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
N/A
D/A conversion
Yes
Phono MM/MC current-sensing input impedance (Ω)
47 000
Output power (8Ω) (W)
2 x 80
Output power (4Ω) (W)
2 x 150
Gain (dBu)
25
Frequency response low +/- 3dB (Hz)
1
Frequency response high +/- 3dB (Hz)
150 000
Signal to Noise Ratio (dB)
102
Total Harmonic Distortion + Noise (%)
< 0.005
Damping factor
>300
Dimensions (mm)
470 × 262 × 90
Weight (kg)
8
Official link
