Integrated amplifiers — Electrocompaniet ECI 6 DX MKII
Description, images, technical data and specifications

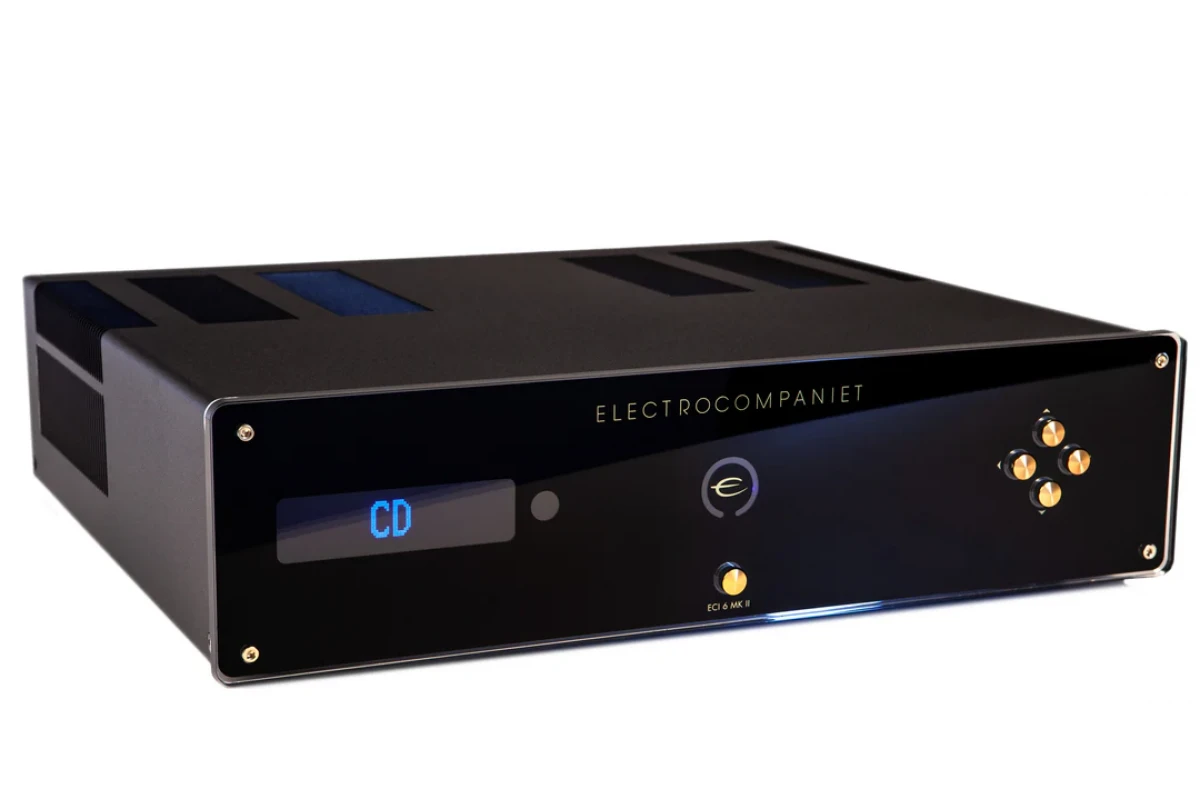

Electrocompaniet ECI 6 DX MKII
Image source — © Electrocompaniet
The ECI-6DX Mk II model has the same basic characteristics as the ECI-6 Mk II, but is equipped with a digital unit that combines the functionality of a DAC and a streamer. An RJ45 Ethernet port and Wi-Fi and Bluetooth wireless adapters are provided for integration into a computer network.
Specifications
Model name
ECI 6 DX MKII
Type
INTEGRATED AMP/DAC/STREAMER
Analog inputs (balanced)
1
Analog inputs (single-ended)
N/A
Input sensitivity (mV)
1300
Input impedance (balanced) (Ω)
47 000
Input impedance (single-ended) (Ω)
N/A
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
< 0,02
D/A conversion
Yes
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
125
Output power (4Ω) (W)
200
Gain (dBu)
N/A
Frequency response low +/- 3dB (Hz)
1
Frequency response high +/- 3dB (Hz)
150 000
Signal to Noise Ratio (dB)
N/A
Total Harmonic Distortion + Noise (%)
<0.004
Damping factor
>350
Dimensions (mm)
470 × 430 × 128
Weight (kg)
20,5
Official link
