Dartzeel CTH-8550
Image source — © Dartzeel
A fully functional integrated amplifier, the preliminary stage of which is assembled according to the ideology of "dual mono". Nine named inputs, optional phono corrector inputs, an end-to-end channel for use in a home theater, pre-stage outputs for connection to external power amplifiers, a fluorescent display, a menu system, volume control based on optical keys (manufactured by Elma and commissioned by darTZeel).
Specifications
Model name
CTH-8550
Type
Integrated Amplifier with DAC and Phono
Analog inputs (balanced)
1
Analog inputs (single-ended)
1
Input sensitivity (mV)
N/A
Input impedance (balanced) (Ω)
30 000
Input impedance (single-ended) (Ω)
30 000
Output impedance (balanced) (Ω)
N/A
Output impedance (single-ended) (Ω)
75
D/A conversion
N/A
Phono MM/MC current-sensing input impedance (Ω)
N/A
Output power (8Ω) (W)
200
Output power (4Ω) (W)
330
Gain (dBu)
26
Frequency response low +/- 3dB (Hz)
2
Frequency response high +/- 3dB (Hz)
200 000
Signal to Noise Ratio (dB)
>115
Total Harmonic Distortion + Noise (%)
<1
Damping factor
N/A
Dimensions (mm)
440 x 350 x 170
Weight (kg)
28
Official link
More components
Integrated amplifiers

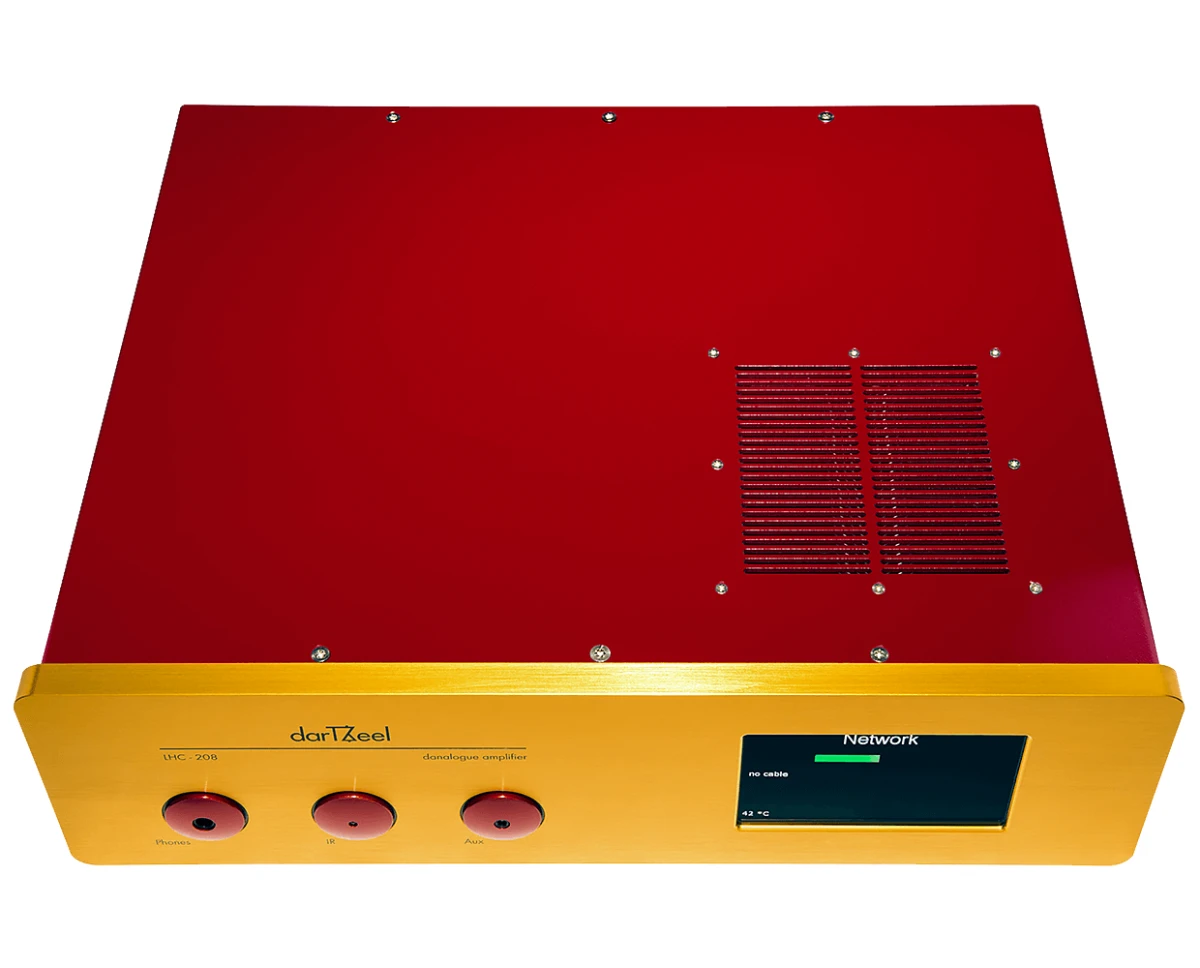

Dartzeel LHC-208
