Integrated amplifiers — Copland CSA150

Description, images, technical data and specifications

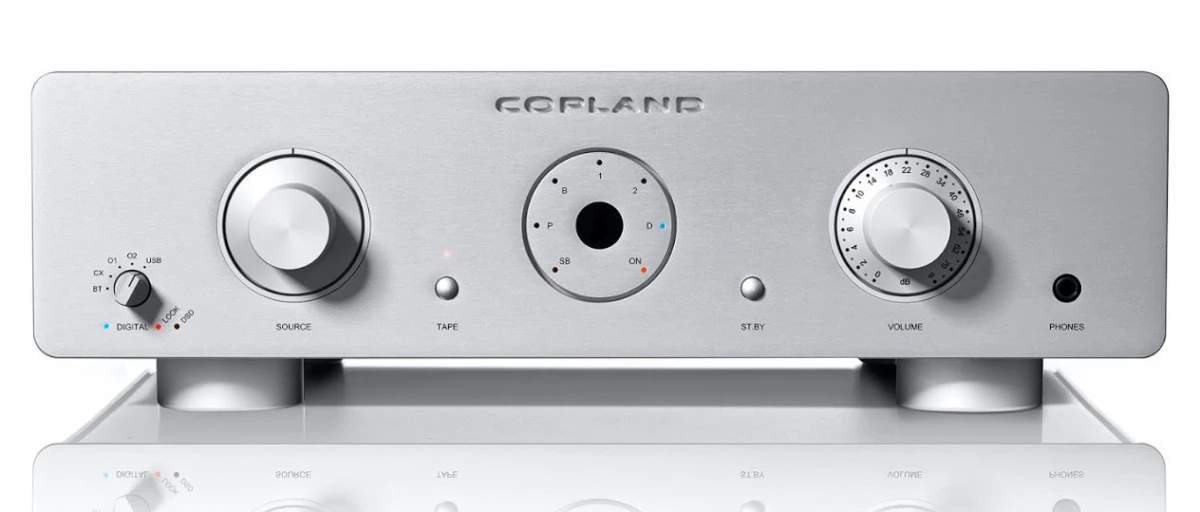

Copland CSA150
Image source — © Copland

Like the CSA100 model, CSA150 is built in a hybrid concept. The input amplification stages are implemented on a dual 6922 triode, and the output stages are implemented on high–power MOSFET field-effect transistors. The switching arsenal of the novelty, in addition to three linear unbalanced analog inputs, includes a balanced input on XLR connectors, as well as a phono corrector input capable of working with pickup heads with a movable magnet (MM).

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    CSA150

  • Type

    Integrated Amplifier with DAC and Phono

  • Analog inputs (balanced)

    1

  • Analog inputs (single-ended)

    3

  • Input sensitivity (mV)

    270

  • Input impedance (balanced) (Ω)

    50 000

  • Input impedance (single-ended) (Ω)

    50 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    Yes

  • Phono MM/MC current-sensing input impedance (Ω)

    47 000

  • Output power (8Ω) (W)

    150

  • Output power (4Ω) (W)

    N/A

  • Gain (dBu)

    22

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    150 000

  • Signal to Noise Ratio (dB)

    90

  • Total Harmonic Distortion + Noise (%)

    0.04

  • Damping factor

    N/A

  • Dimensions (mm)

    435 x 165 x 370

  • Weight (kg)

    15

  • Official link

    https://copland.dk/csa150
