Integrated amplifiers — Copland CSA70

Description, images, technical data and specifications

Copland CSA70
Image source — © Copland

Inside, users will find a DAC and a phono corrector. The first will allow you to connect analog and digital devices, the second — MM cartridges. There is also a headphone amplifier with a 6.35mm jack.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    CSA70

  • Type

    Integrated Amplifier with DAC and Phono

  • Analog inputs (balanced)

    N/A

  • Analog inputs (single-ended)

    3 + 1 (Phono)

  • Input sensitivity (mV)

    200

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    50 000

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    Yes

  • Phono MM/MC current-sensing input impedance (Ω)

    47 000

  • Output power (8Ω) (W)

    N/A

  • Output power (4Ω) (W)

    N/A

  • Gain (dBu)

    N/A

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    200 000

  • Signal to Noise Ratio (dB)

    90

  • Total Harmonic Distortion + Noise (%)

    0.01

  • Damping factor

    N/A

  • Dimensions (mm)

    435 x 135 x 370

  • Weight (kg)

    13

  • Official link

    https://copland.dk/csa70

Copland CSA100

More components

  • CTA407

    Integrated amplifiers

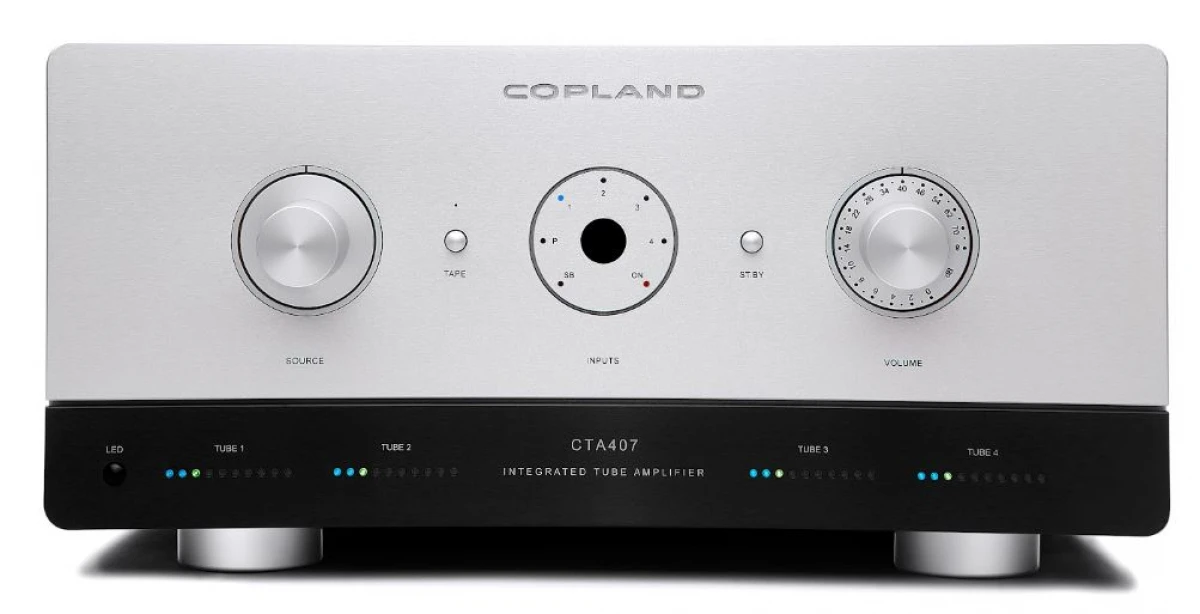

    Copland CTA407

    The Copland CTA407 amplifier allows you to use any model of the 6550/KT88/KT120/KT150 family as output lamps – the proprietary lossless automatic offset adjustment system will determine the optimal operating mode of the selected lamps. The Copland CTA 407 is supplied with KT88 lamps in the output stages, two 12BH7 dual triodes and one ECC83 dual triode in the pre-amplification stages.

  • CSA150

    Integrated amplifiers

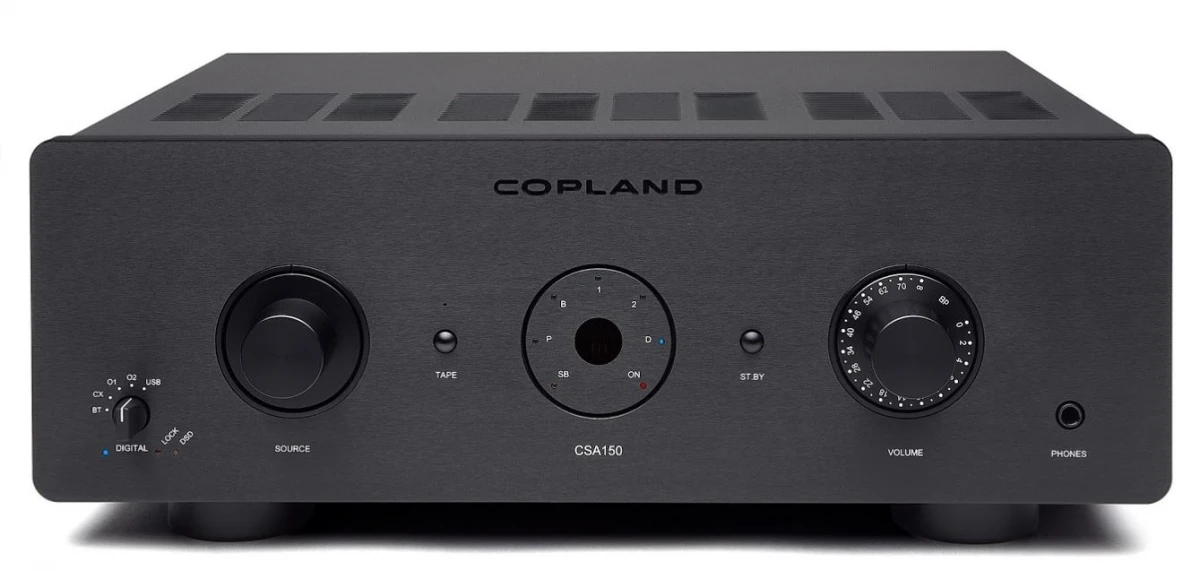

    Copland CSA150

    Like the CSA100 model, CSA150 is built in a hybrid concept. The input amplification stages are implemented on a dual 6922 triode, and the output stages are implemented on high–power MOSFET field-effect transistors. The switching arsenal of the novelty, in addition to three linear unbalanced analog inputs, includes a balanced input on XLR connectors, as well as a phono corrector input capable of working with pickup heads with a movable magnet (MM).

  • CSA100

    Integrated amplifiers

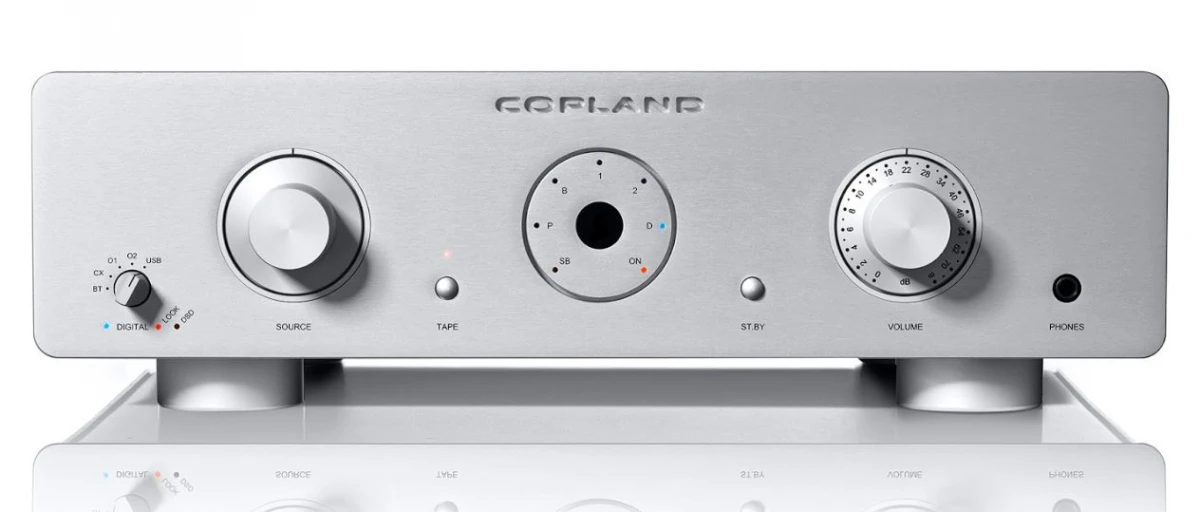

    Copland CSA100
