Integrated amplifiers — Line Magnetic AS-125N

Description, images, technical data and specifications

Line Magnetic AS-125N
Image source — © Line Magnetic

Line Magnetic Audio AS‑125N is a premium-class tube integrated amplifier in a retro style; it combines hand‑built construction, point‑to‑point soldering, and replicas of Western Electric transformers, delivering warm, natural sound with a deep stage and expressive detail.

Specifications

  • Model name

    AS-125N

  • Type

    N/A

  • Analog inputs (balanced)

    N/A

  • Analog inputs (single-ended)

    N/A

  • Input sensitivity (mV)

    500

  • Input impedance (balanced) (Ω)

    N/A

  • Input impedance (single-ended) (Ω)

    100 000 / 600

  • Output impedance (balanced) (Ω)

    N/A

  • Output impedance (single-ended) (Ω)

    N/A

  • D/A conversion

    N/A

  • Phono MM/MC current-sensing input impedance (Ω)

    N/A

  • Output power (8Ω) (W)

    18 + 18

  • Output power (4Ω) (W)

    N/A

  • Gain (dBu)

    40 / 52

  • Frequency response low +/- 3dB (Hz)

    10

  • Frequency response high +/- 3dB (Hz)

    45 000

  • Signal to Noise Ratio (dB)

    88

  • Total Harmonic Distortion + Noise (%)

    1

  • Damping factor

    N/A

  • Dimensions (mm)

    480 x 275 x 490

  • Weight (kg)

    50

  • Official link

    https://line-magnetic.eu/collections/all

Line Magnetic LM-212 Premium

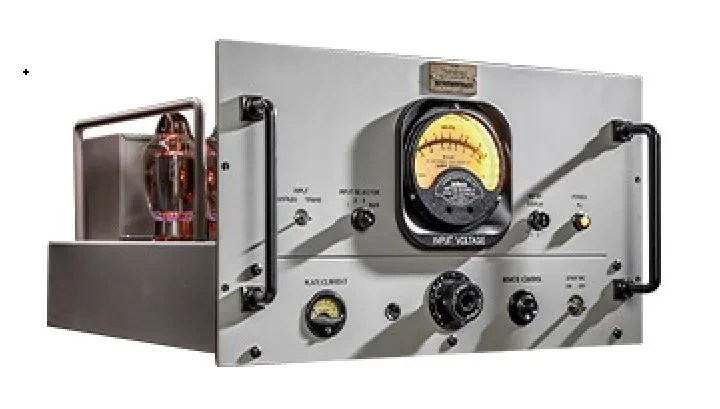

Line Magnetic AS-137N
