Phonostages — Gato Audio PRE-1
Description, images, technical data and specifications

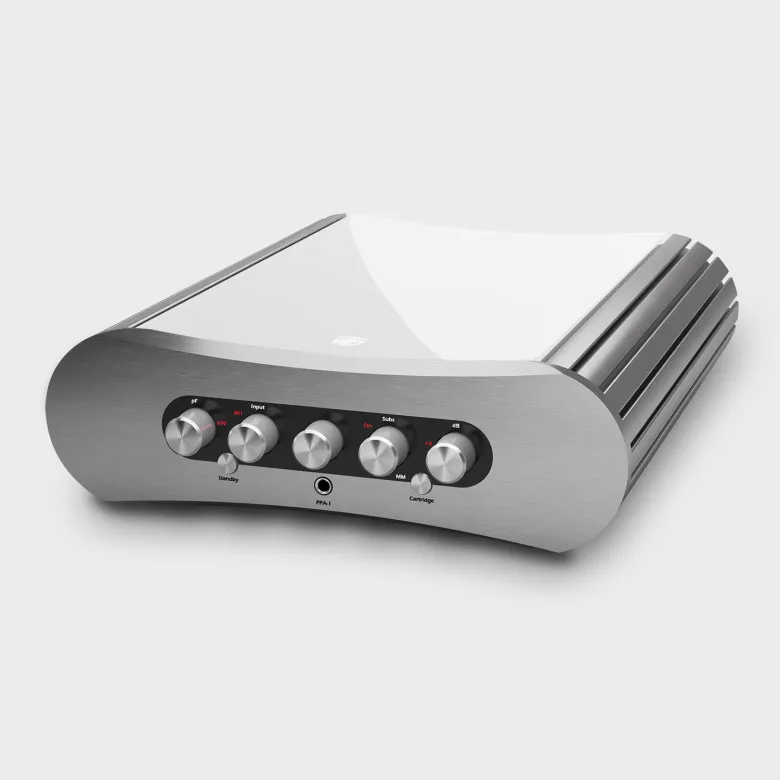

Gato Audio PRE-1
Image source — © Gato Audio
Gato Audio PRE-1 is a High-End reference preamp with a fully balanced dual-monoblock circuit, 5 analog inputs (3 RCA, 2 XLR), 2 outputs (RCA and XLR), an OLED display, individually configurable inputs and the ability to install modules: phono corrector, SABRE DAC and network streamer (Roon Ready, Tidal, Spotify, etc.)
Specifications
Model name
PRE-1
Inputs (balanced)
2
Inputs (single-ended)
3
MC current-sensing input impedance (Ω)
N/A
MM/MC voltage input impedance (Ω)
MM: 47 000, MC: N/A
Output impedance (Ω)
10
Gain (dB)
MM: 40, MC: 60
Playback EQ curves accuracy (dB)
N/A
Frequency response low +/- 3dB (Hz)
7
Frequency response high +/- 3dB (Hz)
650 000
Total Harmonic Distortion + Noise (%)
0.001
Dimensions (mm)
325 x 105 x 420
Weight (kg)
10
