Phonostages — Gold Note PH-5
Description, images, technical data and specifications

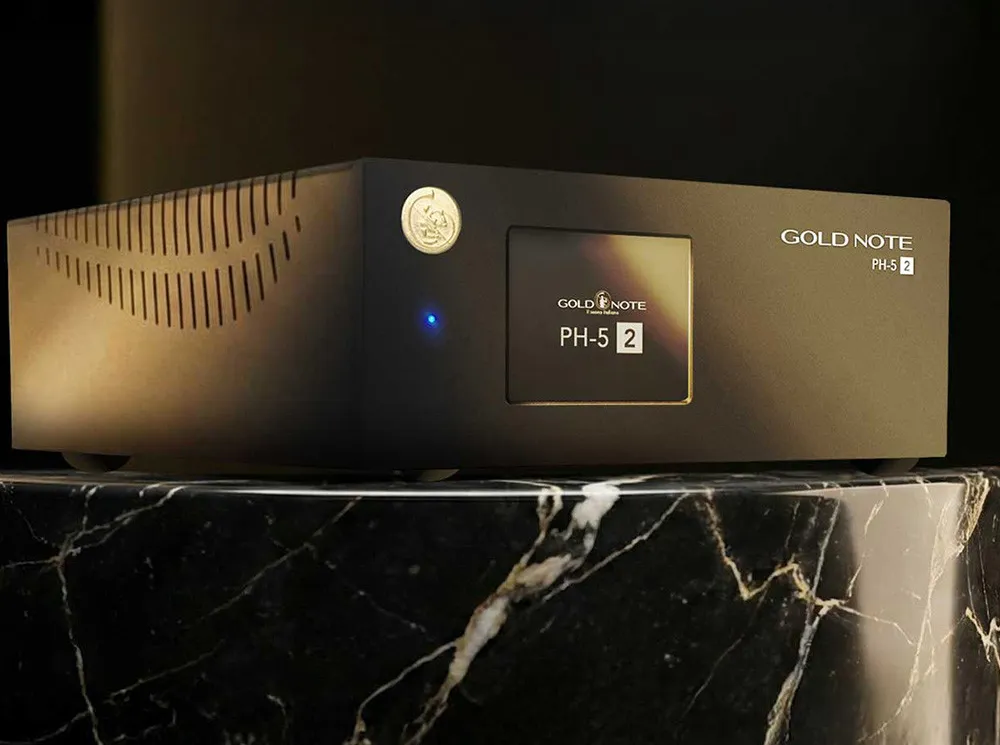

Gold Note PH-5
Image source — © Gold Note
The PH-5 has load and gain adjustments for ideal combination with MM and MC cartridges. To ensure the accuracy of record playback, it is equipped with a choice of 6 equalizer curves. Separately, it is necessary to note the extremely low level of its own noise.
Specifications
Model name
PH-5
Inputs (balanced)
1
Inputs (single-ended)
1
MC current-sensing input impedance (Ω)
N/A
MM/MC voltage input impedance (Ω)
10, 22, 47, 100, 220, 470, 1000, 22 000, 47 000
Output impedance (Ω)
50
Gain (dB)
MM: 40, MC: 60
Playback EQ curves accuracy (dB)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Total Harmonic Distortion + Noise (%)
<0.05
Dimensions (mm)
200 x 80 x 260
Weight (kg)
1.2
Official link
More components
Phonostages

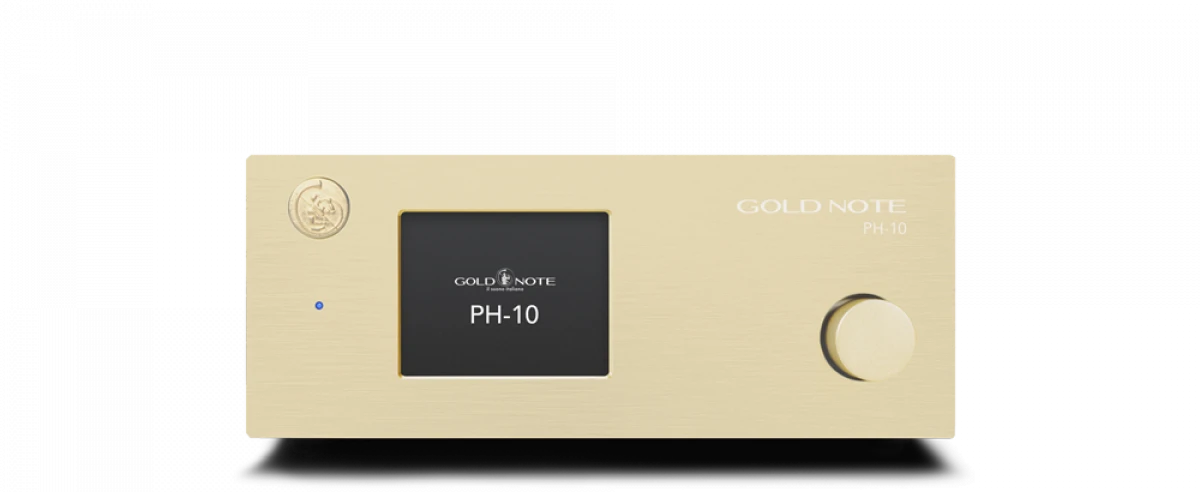

Gold Note PH-10
Phonostages

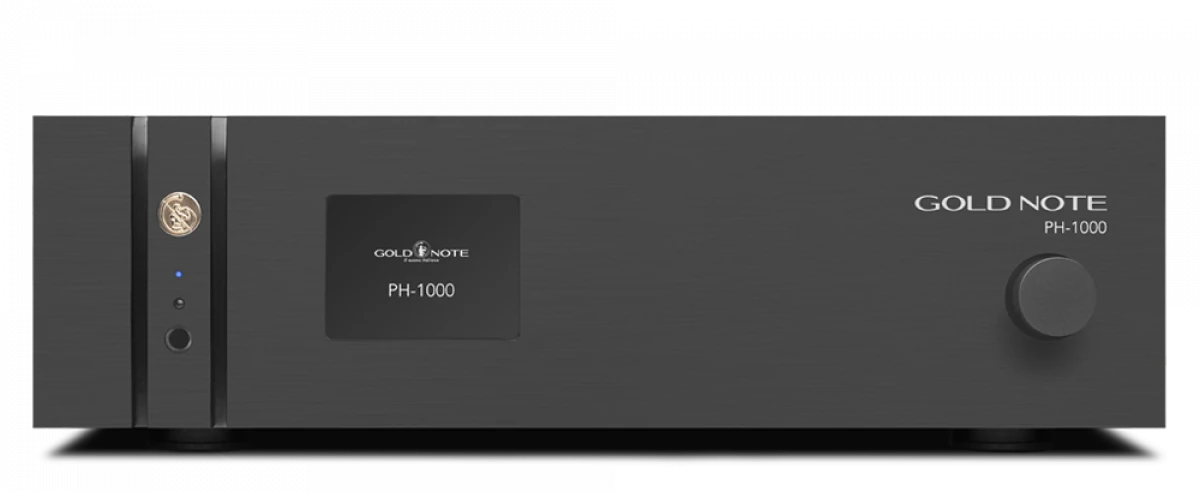

Gold Note PH-1000
