Phonostages — MoFi Electronics MASTERPHONO
Description, images, technical data and specifications
MoFi Electronics MASTERPHONO

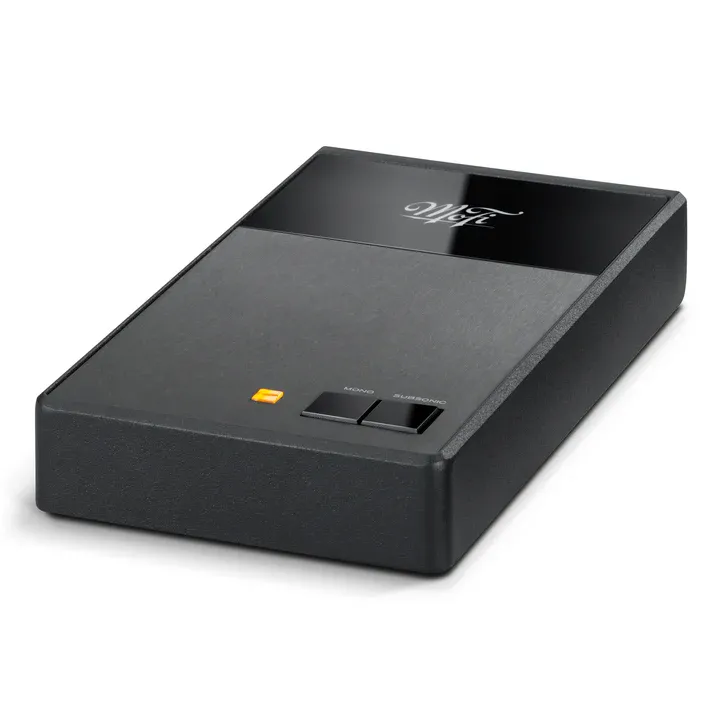

Image source — © MoFi Electronics
This is a top-of-the-line phono corrector developed by Peter Mednik, designed for maximum flexibility and very low noise levels. The main feature is a dual chassis: a power supply and control unit in front, and an audio track in the back, which ensures galvanic isolation and minimal interference.
Specifications
Model name
MASTERPHONO
Inputs (balanced)
2
Inputs (single-ended)
2
MC current-sensing input impedance (Ω)
N/A
MM/MC voltage input impedance (Ω)
15, 30, 50, 75, 100, 500, 1000, 10 000, 47 000
Output impedance (Ω)
N/A
Gain (dB)
selectable gain for MM or MC 40db, 50db, 60db, 70db
Playback EQ curves accuracy (dB)
N/A
Frequency response low +/- 3dB (Hz)
10
Frequency response high +/- 3dB (Hz)
50 000
Total Harmonic Distortion + Noise (%)
0.005
Dimensions (mm)
N/A
Weight (kg)
6.8
Official link
