Phonostages — YBA GENESIS PH1

Description, images, technical data and specifications

YBA GENESIS PH1
Image source — © YBA

The YBA Genesis PH1 phono corrector works with MM/MC and MC high output cartridges. The selector knob on the front panel of the F1 has only two options (MM or MC), although it accepts MC with a high output level. The circuit is designed so that it automatically detects which type of cartridge is being used, and the appropriate settings will be adjusted if selected correctly using the toggle switch on the back panel.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

Model name
GENESIS PH1
Inputs (balanced)
N/A
Inputs (single-ended)
2
MC current-sensing input impedance (Ω)
47 000
MM/MC voltage input impedance (Ω)
N/A
Output impedance (Ω)
N/A
Gain (dB)
26
Playback EQ curves accuracy (dB)
N/A
Frequency response low +/- 3dB (Hz)
20
Frequency response high +/- 3dB (Hz)
20 000
Total Harmonic Distortion + Noise (%)
<0.005
Dimensions (mm)
215 x 335 x 115
Weight (kg)
4
Official link
https://www.ybahifi.com/product/genesis-ph1-phono-preamplifier/

YBA Heritage PH100

YBA PASSION PH150

More components

Phonostages

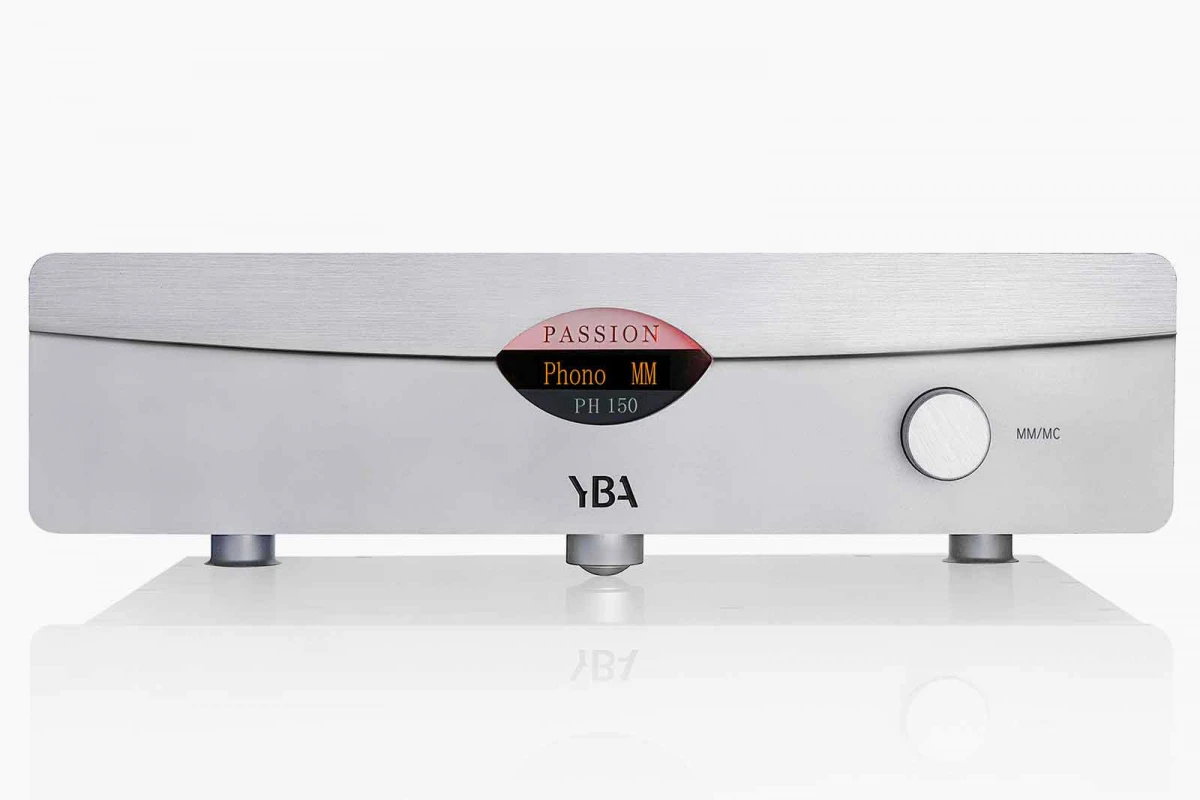

YBA PASSION PH150
