Phonostages — Luxman E-250

Description, images, technical data and specifications

Luxman E-250
Image source — © Luxman

The Luxman E-250 uses an NF-type RIAA correction scheme that uses negative feedback and provides a high signal-to-noise ratio. Boost transformers equipped with super-permalloy alloy cores perform the signal amplification of MC cartridges. At the same time, the switch on the front panel allows you to choose one of two options for the gain and input resistance for MC heads: 57 dB/40 ohms or 66 dB/2.5 ohms.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    E-250

  • Inputs (balanced)

    N/A

  • Inputs (single-ended)

    2

  • MC current-sensing input impedance (Ω)

    N/A

  • MM/MC voltage input impedance (Ω)

    MM: 34 000 / 47 000 / 56 000 / 100 000, MC: 40

  • Output impedance (Ω)

    N/A

  • Gain (dB)

    MM: 38, MC: 57

  • Playback EQ curves accuracy (dB)

    N/A

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Total Harmonic Distortion + Noise (%)

    0.003

  • Dimensions (mm)

    364 x 81 x 274

  • Weight (kg)

    4.3

  • Official link

    https://www.luxman.com/product/detail.php?id=5

Luxman E-07

More components

  • E-07

    Phonostages

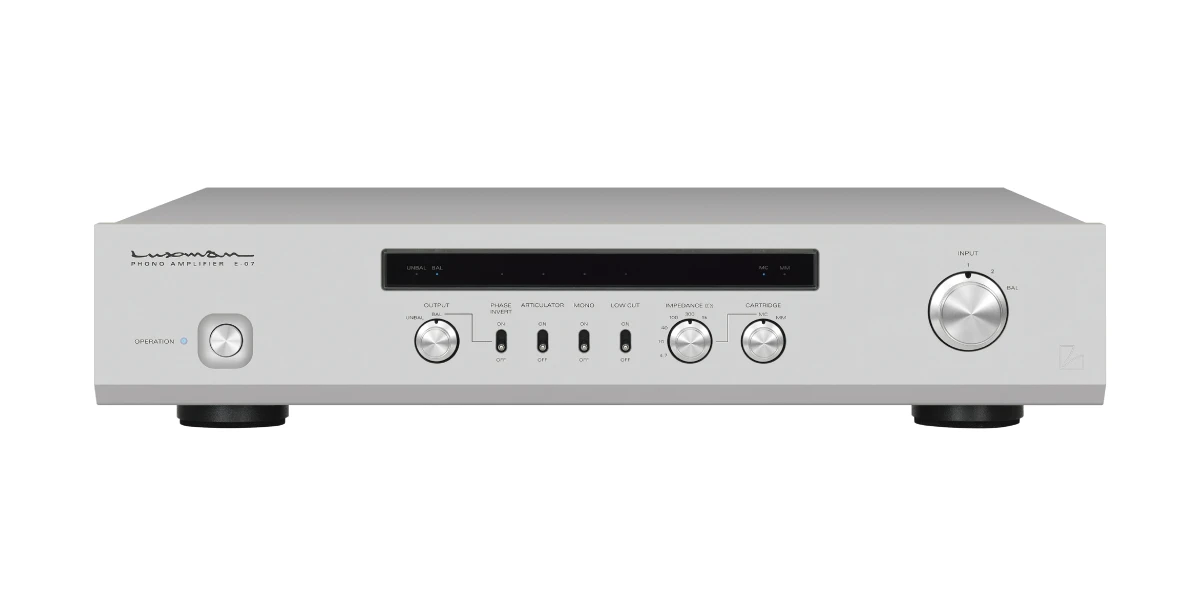

    Luxman E-07

    The device supports the operation of MM and MS cartridges. For the former, balanced and conventional inputs with a new step-down transformer are provided, in which the core is made of high-purity permalloy. The input stages are built on several FET transistors connected in parallel sequence. The amplifier is quite traditional with general feedback.

  • EQ-500

    Phonostages

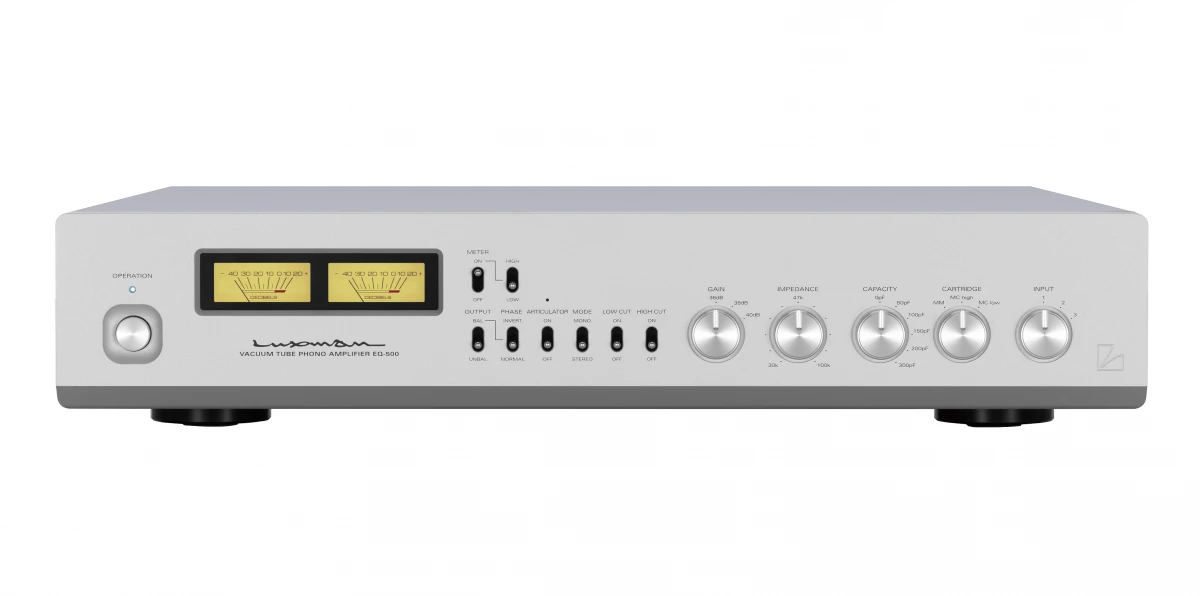

    Luxman EQ-500

    The circuit design of the device includes several cascades, which use radio tubes from the Slovak manufacturer JJ: four double ECC83 triodes, two double ECC82 triodes and an EZ81 tube rectifier. The phono corrector uses four boost transformers (two per channel) equipped with super-permalloy cores to increase performance.
