Phonostages — Canor Audio ASTERION V2

Description, images, technical data and specifications

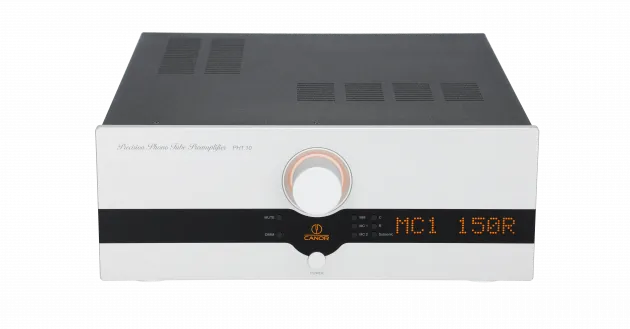

Canor Audio ASTERION V2
Image source — © Canor Audio

The MM/MC tube phono corrector is of the highest category with unbalanced and balanced inputs and outputs, a circuit without general negative feedback on 8 carefully selected lamps, fully differentially balanced, a rectifier on a cenotron. Simultaneous connection of the MM and MC pickups is allowed due to the presence of separate corresponding inputs.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    ASTERION V2

  • Inputs (balanced)

    1

  • Inputs (single-ended)

    1 + 1 (RCA Unbalanced)

  • MC current-sensing input impedance (Ω)

    N/A

  • MM/MC voltage input impedance (Ω)

    MC1: 10, 20, 40, 80, 150, 300, 600, 1.200; MC2: 2, 5, 10, 20, 40, 80, 150, 300

  • Output impedance (Ω)

    250

  • Gain (dB)

    MC1: 70, MC2: 76

  • Playback EQ curves accuracy (dB)

    N/A

  • Frequency response low +/- 3dB (Hz)

    N/A

  • Frequency response high +/- 3dB (Hz)

    N/A

  • Total Harmonic Distortion + Noise (%)

    <0,1

  • Dimensions (mm)

    435 x 170 x 485

  • Weight (kg)

    18

  • Official link

    https://canor-audio.de/en/canor-asterion-v2-premium-line/

Canor Audio PH 1.10

More components

  • PH 2.10

    Phonostages

    Canor Audio PH 2.10

    The amplification stages of the model are made on a pair of 12AX7 dual triodes and a pair of 12AT7 dual triodes without common feedback. RIAA correction is performed by a fully passive circuit using only high-quality polystyrene and polypropylene capacitors.

  • PH 1.10

    Phonostages

    Canor Audio PH 1.10

    MM/MC tube phono corrector with a cenotron rectifier in the power supply (anode voltage). A 9-lamp circuit without a common OOS, all lamps and passive components are carefully selected according to parameters. The transition capacitors are high-grade polypropylene. The MS input is equipped with a Lundahl boost transformer. The MM and MS inputs can be connected to the signal sources simultaneously without mutual influence.
