Boulder 508
Image source — © Boulder

The Boulder 508 is a compact phono corrector with balanced inputs and outputs, MC/MM switching, integrated low pass filter and solid aluminum housing. It features high precision and minimal distortion for a perfect vinyl sound.

Specifications

  • Model name

    508

  • Inputs (balanced)

    1

  • Inputs (single-ended)

    N/A

  • MC current-sensing input impedance (Ω)

    N/A

  • MM/MC voltage input impedance (Ω)

    MC: 100, MM: 47 000

  • Output impedance (Ω)

    100

  • Gain (dB)

    MC: 70, MM: 44

  • Playback EQ curves accuracy (dB)

    N/A

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20 000

  • Total Harmonic Distortion + Noise (%)

    0.01

  • Dimensions (mm)

    115.0 x 23.1 x 92

  • Weight (kg)

    5.2

  • Official link

    https://boulderamp.com/products/508-phono-preamplifier/

Boulder 1108

More components

  • 1108

    Phonostages

    Boulder 1108

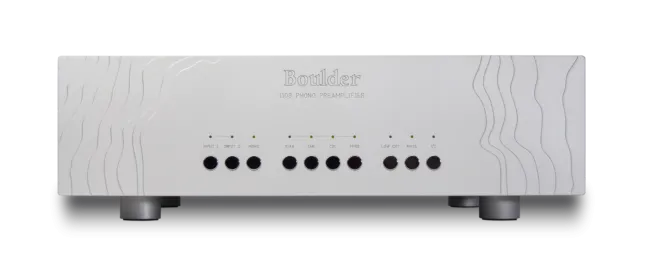

    Boulder 1108 is a high—end vinyl phono corrector with two balanced XLR inputs and outputs, fine tuning for MC/MM pickups and presets for rare films (EMI, Columbia, FFRR). A fully discrete analog circuit with its own 983 and 985 amplification stages ensures maximum transparency and sound accuracy without unnecessary distortion.

  • 2108

    Phonostages

    Boulder 2108

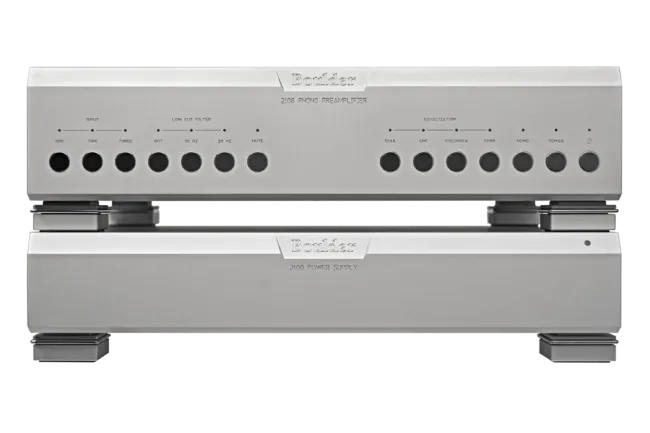

    The Boulder 2108 is a top—class reference dual-body phono preamp designed for perfect analog transmission. It separates the audio circuit and the power supply to maximize signal isolation from interference and crosstalk. The device is equipped with three pairs of balanced inputs for connecting different players or pickups and two pairs of balanced outputs.
