Hifiverse

Cartidges — Ortofon 2M Red

Description, images, technical data and specifications

Ortofon 2M Red
Image source — © Ortofon

Entry-level cartridge in Ortofon MM-series offers dynamic sound. The split pole pins with a copper wire guarantees high level of detail.

What is it?

Ask AI to scan specialized sites and forums, evaluate the impressions of using the product, its advantages and disadvantages and get a summary.

Specifications

  • Model name

    2M Red

  • Type

    MM

  • Stylus

    elliptical diamond

  • Body

    N/A

  • Cantilever

    aluminium

  • Coils

    N/A

  • Output voltage (mV@5cm/sec)

    5.5

  • Frequency response low +/- 3dB (Hz)

    20

  • Frequency response high +/- 3dB (Hz)

    20000

  • Internal impedance (Ohm)

    1300

  • Channel separation (dB / 1,000 Hz)

    22

  • Compliance (×10-6cm/dyne at 100Hz)

    20

  • Recommended load (Ohm)

    47000

  • Recommended tonearms

    Medium

  • Weight (g)

    16.7

  • Official link

    https://ortofon.com/products/2m-red

Ortofon MC 90X MC

Ortofon Concorde 5E

More components

  • MC X40

    Cartidges

    Ortofon MC X40

    The Ortofon MC X40 is the pinnacle of the MC X series. According to Ortofon, it is designed for the most demanding audiophiles. With a Shibata-sharpened diamond needle (r/R 6/50 microns) mounted on a durable and lightweight boron cantilever, this cartridge promises unsurpassed transparency, speed, and responsiveness.

  • MC X30

    Cartidges

    Ortofon MC X30

    The Ortofon MC X30 cartridge promises even higher sound quality thanks to a diamond needle with a nude fine-line sharpening (r/R 8/40 microns) with an aluminum cantilever. The manufacturer claims outstanding accuracy and resolution, allowing you to play music with spectacular detail and dynamic range.

  • MC X20

    Cartidges

    Ortofon MC X20

    The Ortofon MC X20 head is also equipped with an elliptical diamond needle (r/R 8/18 microns) mounted on an aluminum cantilever. Ortofon emphasizes its ability to convey more depth and clarity, revealing the full character of each track. The channel separation at 1 kHz is 25 dB.

  • MC X10

    Cartidges

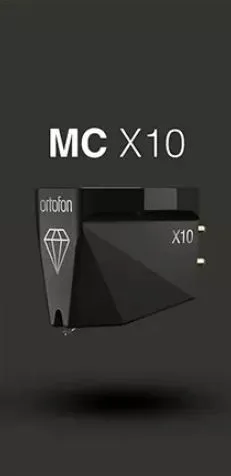

    Ortofon MC X10
