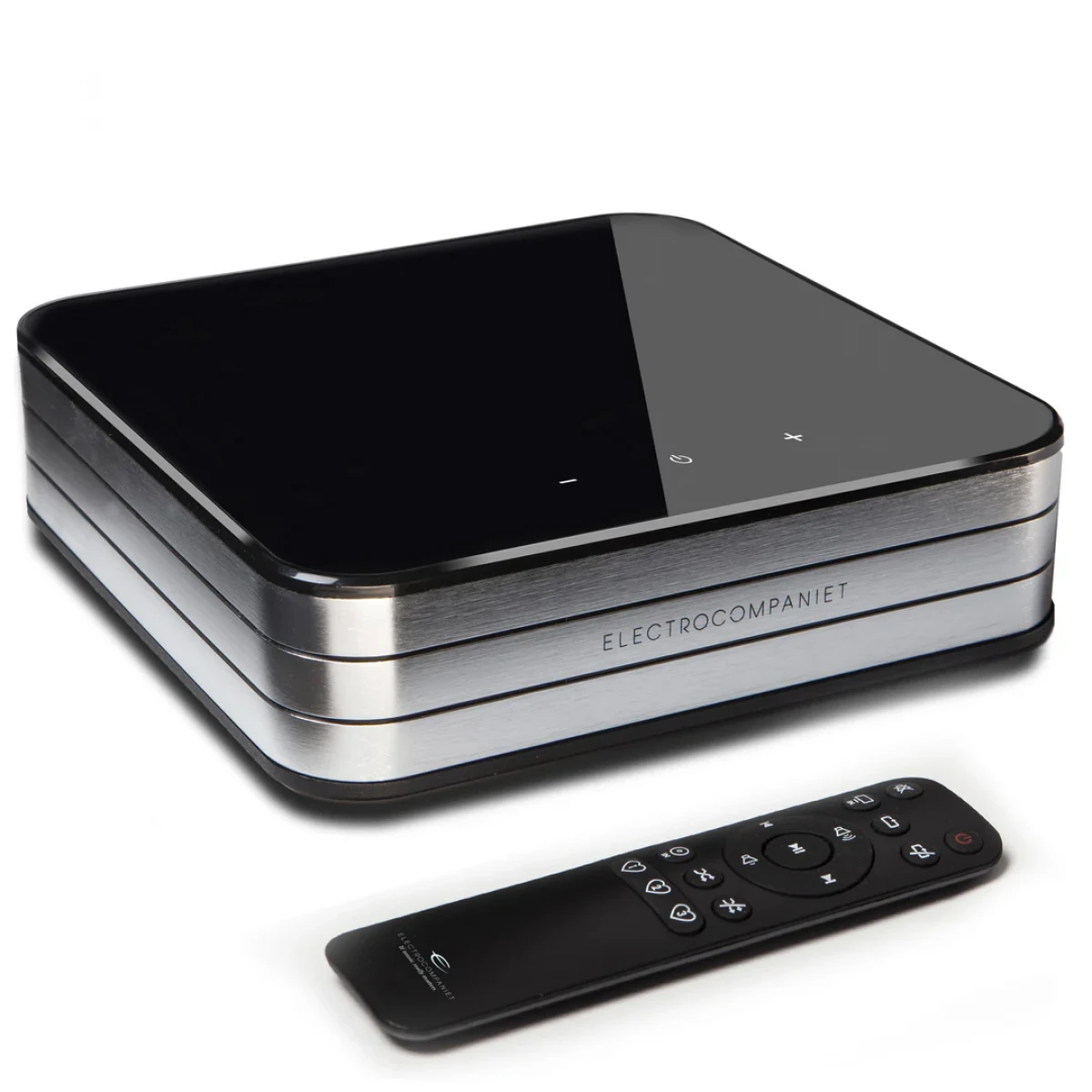

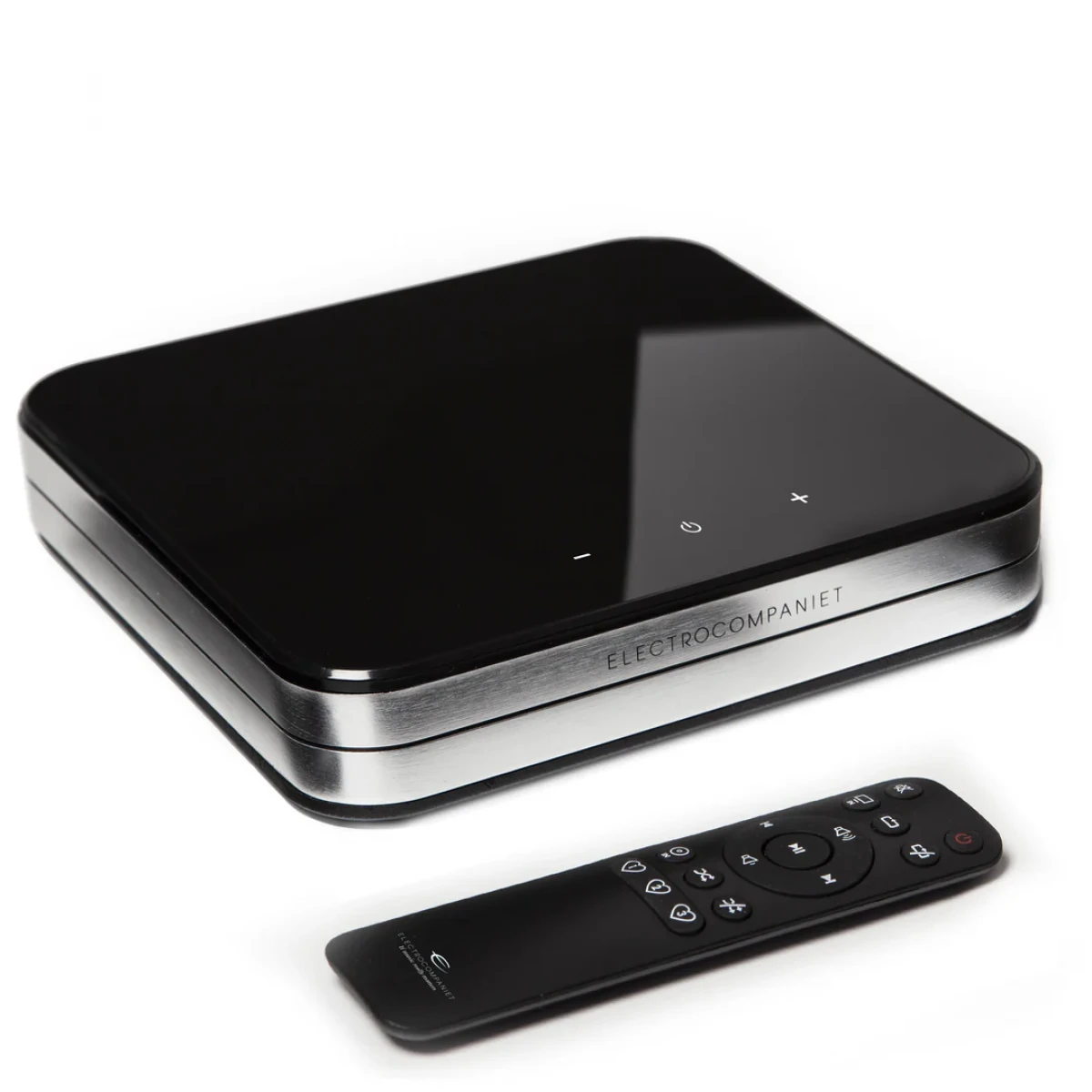

Streamers — Electrocompaniet ECM 1 MKII

Specifications

• Model name

  ECM 1 MKII

• Has internal DAC

  Yes

• DSD compatability

  Yes

• Parameters

  up to 192kHZ/24bit and DSD128

• DSP processing

  N/A

• Frequency response low +/- 3dB (Hz)

  0,5

• Frequency response high +/- 3dB (Hz)

  48 000

• Gain (dBu)

  N/A

• Input Impedance (balanced) (Ω)

  N/A

• Input Impedance (single-ended) (Ω)

  N/A

• Output Impedance (balanced) (Ω)

  300

• Output Impedance (single-ended) (Ω)

  300

• Analog outputs level (balanced) (V)

  N/A

• Analog outputs level (single-ended) (V)

  N/A

• Signal to Noise Ratio (dB)

  N/A

• Total Harmonic Distortion + Noise (% at 22 kHz)

  < 0,0005

• Dimensions (mm)

  470 × 381 × 80

• Weight (kg)

  8,3

• Official link

  https://electrocompaniet.com/collections/streamers/products/ecm-1-mkii-network-music-player
